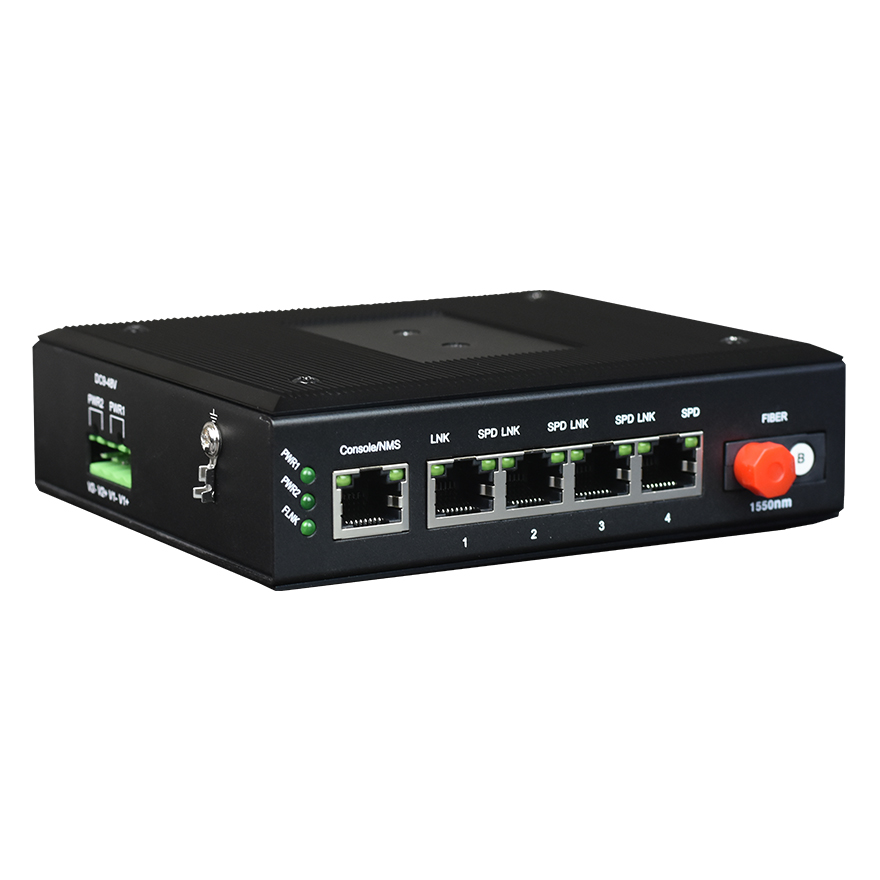

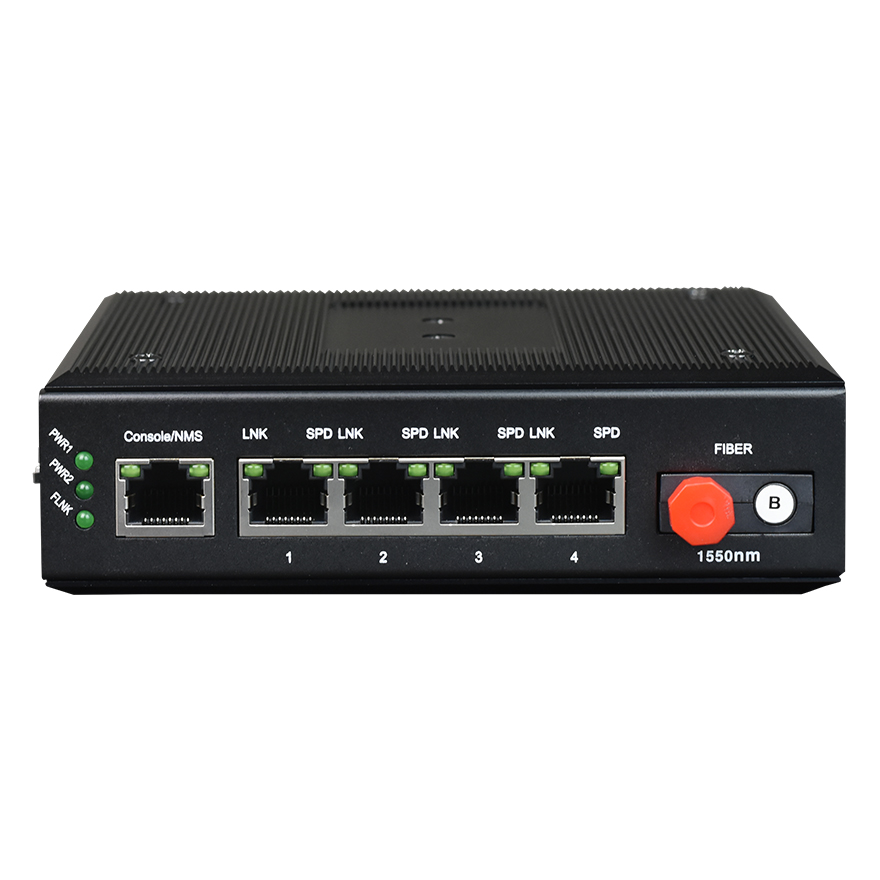

Industrial Rail 4FE Fiber Media Converter

This series of products are industrial grade 4 port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission. This product offers 1 fiber optic port; 4 Fast Ethernet port, and share the 100M bandwidth, the bandwidth of each port can be set by Console (Ethernet interface can support VLAN ), namely Logic Isolation; 1 Console port. With the alarm function, the operation is stable and reliable, low power consumption, high integration, small size. Console function is optional,  please state the requirements when in order.

● Industrial Ethernet series, designed for harsh industrial environments

● Device provides four Fast Ethernet ports, and share 100Mbandwidth, the bandwidth of each channel can be set through the Console port (Ethernet interface support VLAN );

● Electrical connector (RJ45 connector) support 10 / 100M adaptive, full / half duplex mode, MDI / MDI-X auto-detect

● Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmissionmodes, SC / ST / FC interface, optional

● Support the transmission of VLAN long packets.Can be matched with the switch device that supports IEEE802.1Q, support up to 10240 byte Ethernet packets;

● The device is an Ethernet switch chip + FPGA solution with remote OAM management frame function. It can be interconnected with a 2U plug-in type 1 optical 1 transceiver card with SNMP network management. The SNMP software can manage this device. It can also support Console. (CLI) network management / WEB network management / independent SNMP network management;

● Support a wide range of AC and DC input

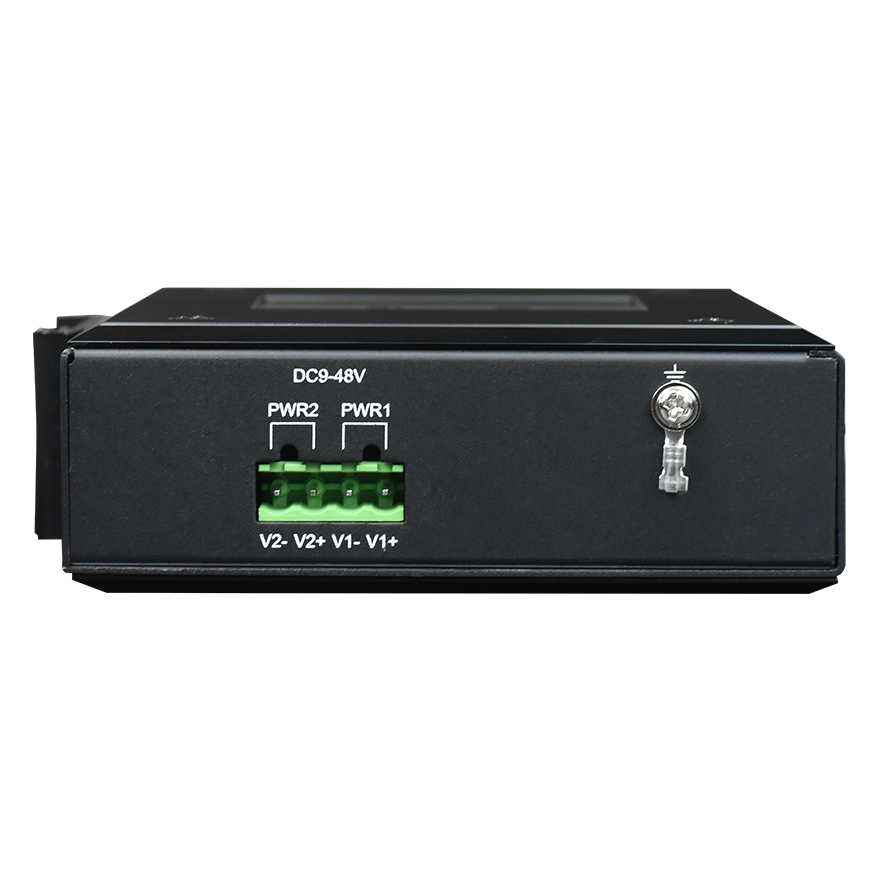

● Support internal isolation, redundant dual power inputs

● Power Support overload protection, anti-reverse protection

● Meet industry four electromagnetic compatibility requirements

● Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.

● Fanless cooling efficiency, reduce repair time

● IP40 enclosure protection rating, can withstand the test of harsh environments

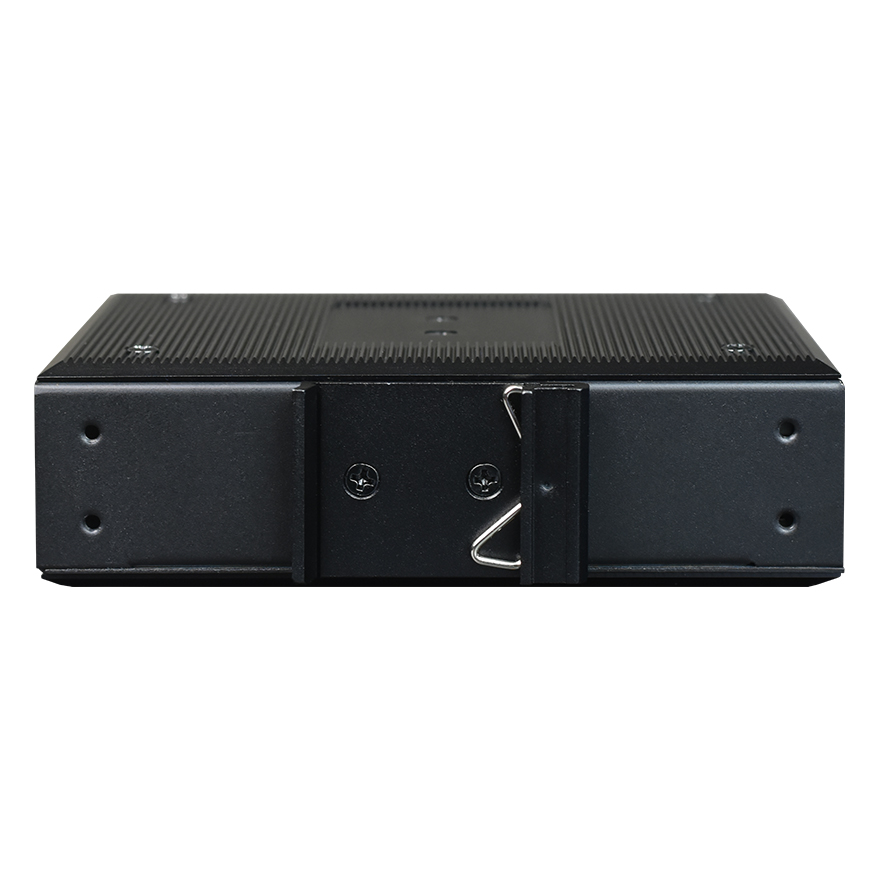

● Rail or wall mounting

● Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃

● All models are tested by 100% roast machine, Warranty: 5 years

●  Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

●  Ethernet interface(100/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

● Working environment

Working temperature: -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 100°C

Storage Humidity: 5%~95 % (no condensation)
