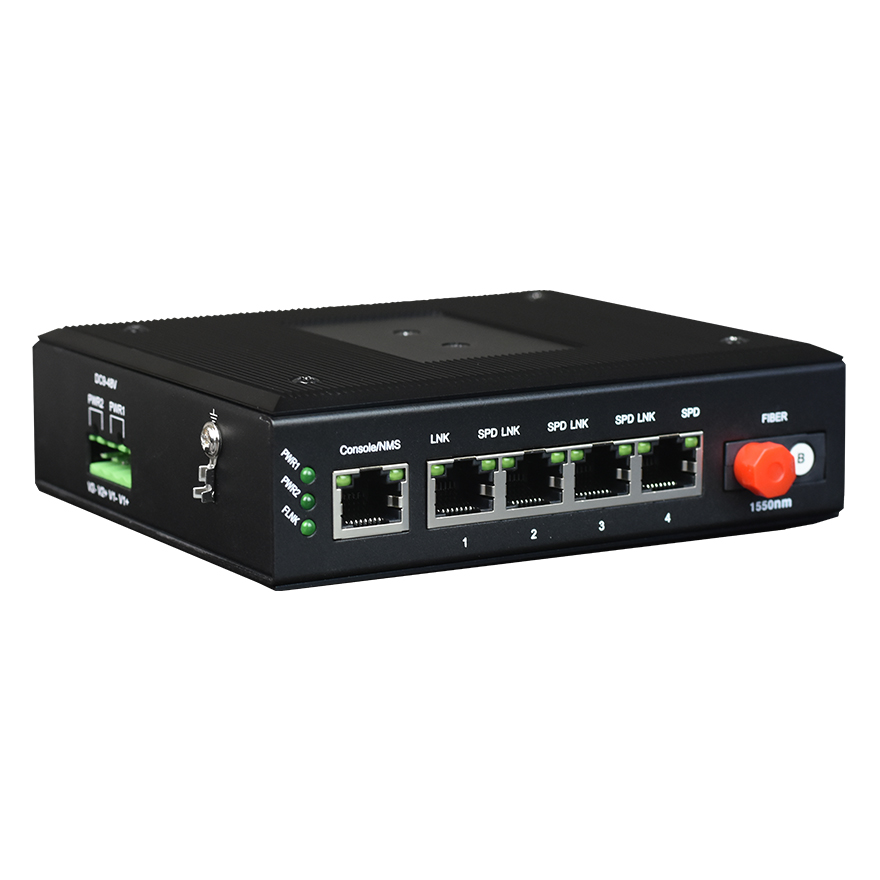

Industrial Rail 4GE Fiber Media Converter

This series of products are industrial grade 4 port 1000Base-T to 1000Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/100 km) transmission. This product offers 1* 1000Base-X, 4 Gigabit Ethernet port, and share the 1000M bandwidth, the bandwidth of each channel can be set by Console (Ethernet interface support VLAN,), namely Logic Isolation; 1 Console port. With the alarm function, the operation is stable and reliable, low power consumption, high integration, small size. Console function is optional, please state the requirements when in order.

●  Industrial Ethernet series, designed for harsh industrial environments

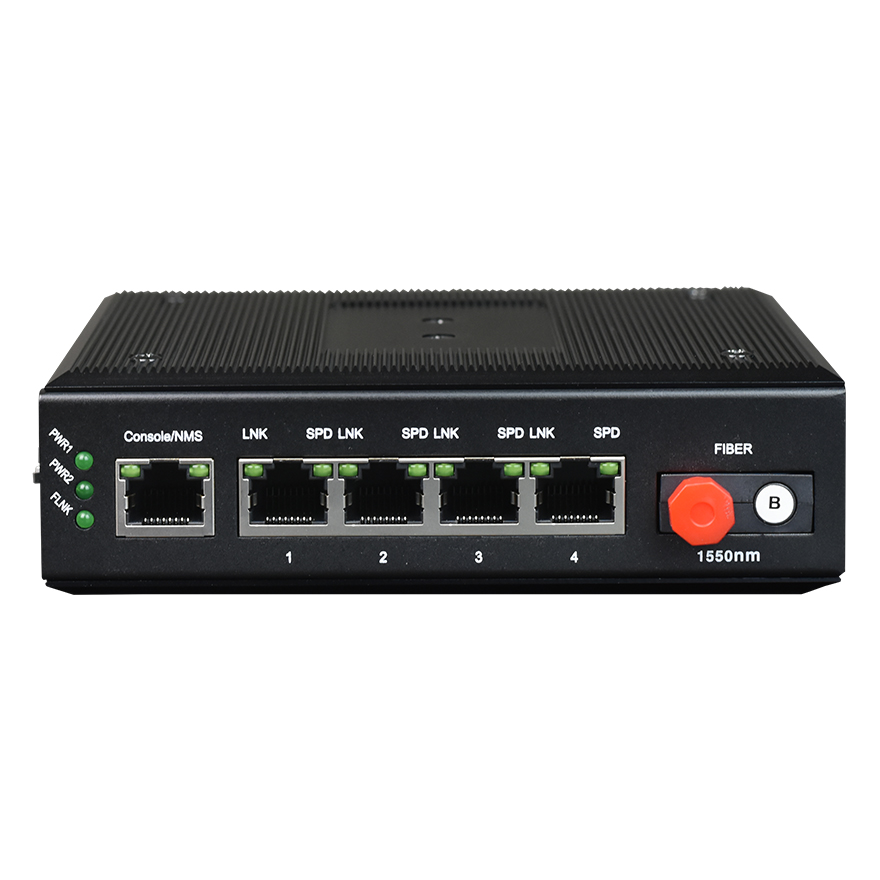

●  Device provides four Gigabit Ethernet ports, and share 1000Mof bandwidth, the bandwidth of each channel can be set through the Console port ;

●  Electrical connector (RJ45 connector) to support 10/100/1000M adaptive, full / half duplex mode, MDI / MDI-X auto-detect

●  Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC / ST / FC interface, optional

●  VLAN support the transmission of long packets can support IEEE802.1Q protocol products matching switches used to support up to 10240 byte Ethernet packets;

●  Support a wide range of AC and DC input

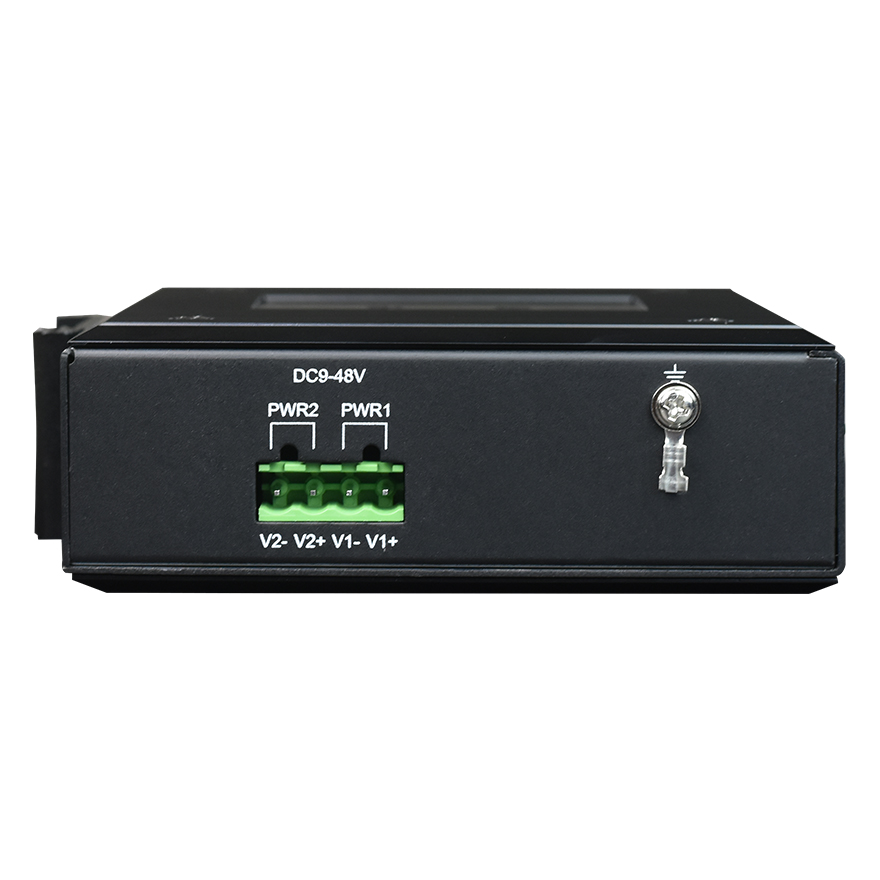

●  Support internal isolation, redundant dual power inputs

●  Power Support overload protection, anti-reverse protection

●  Meet industry four electromagnetic compatibility requirements

●  Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.

●  Fanless cooling efficiency, reduce repair time

●  IP40 enclosure protection rating, can withstand the test of harsh environments

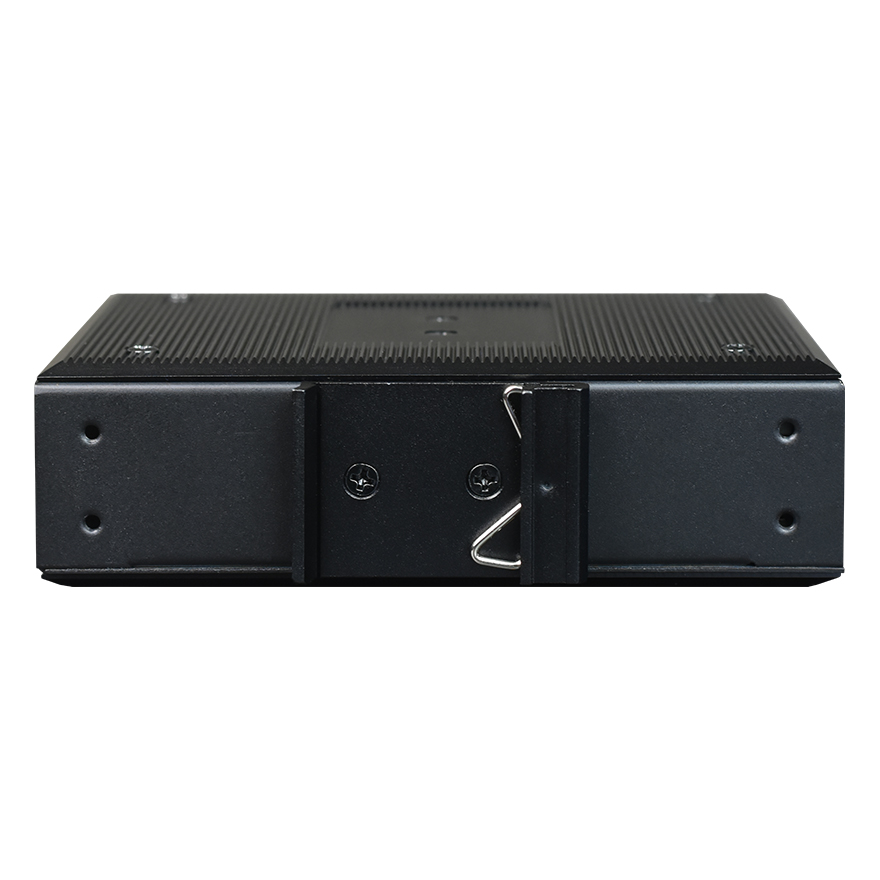

●  Rail or wall mounting

●  Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃

●  All models are tested by 100% roast machine, Warranty: 5 years

● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

● Ethernet interface(10/100/1000M)

Interface rate: 10/100/1000 Mbps, half/full duplex auto-negotiation

Interface Standard:     Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:     RJ45, support Auto-MDIX

● Working environment

Working temperature: -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 100°C

Storage Humidity: 5%~95 % (no condensation)
