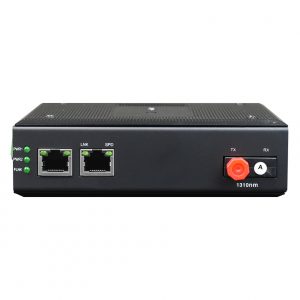

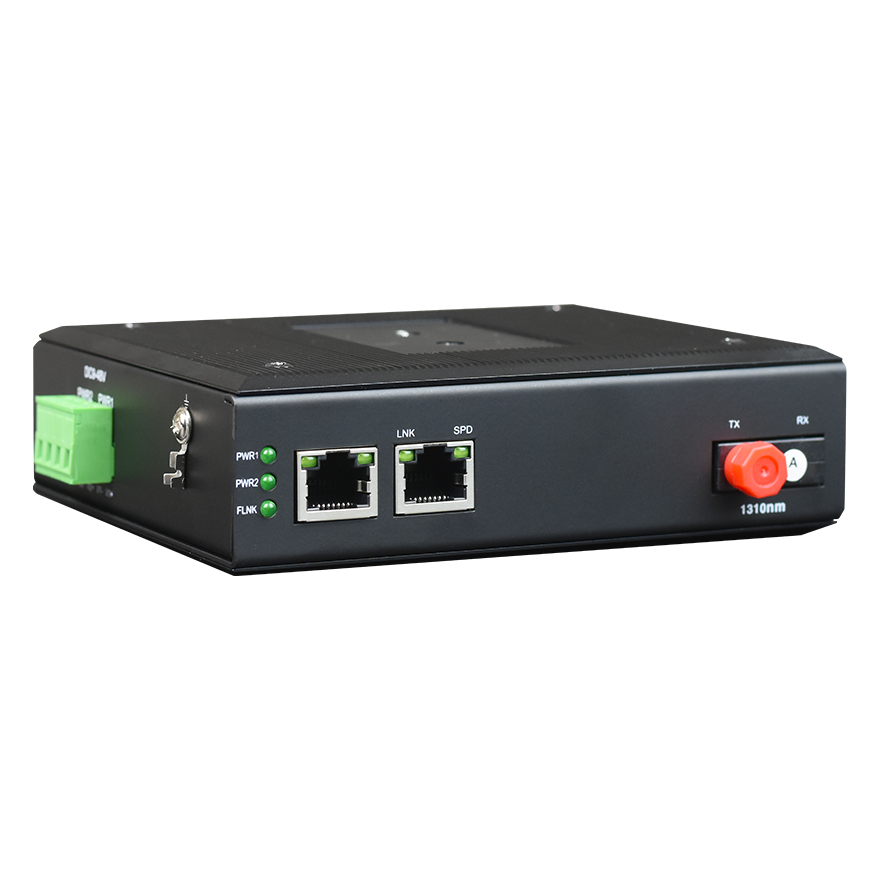

Industrial Rail Type FE Fiber Media Converter

View : 391
Type : Industrial Fiber Media Converter
Description :

This series of products are industrial rail type one port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission.


This series of products are industrial rail type one port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission. This product offers 100BASE-FX, one channel Fast Ethernet port, With alarm function, the operation is stable and reliable, low power consumption, high integration, small size.Console function is optional, please state the requirements when in order.



Industrial Ethernet series, designed for harsh industrial environments

Electrical connector (RJ45 connector) to support 10/100M adaptive, full/half duplex mode, MDI/MDI-X auto-detect

Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC/ST/FC interface, optional

Support the transmission of VLAN long packets.Can be matched with the switch device that supports IEEE802.1Q, support up to 10240 byte Ethernet packets;

Support a wide range of AC and DC input

Power Support overload protection, anti-reverse protection

Meet industry four electromagnetic compatibility requirements

Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.

Fanless cooling efficiency, reduce repair time

IP40 enclosure protection rating, can withstand the test of harsh environments

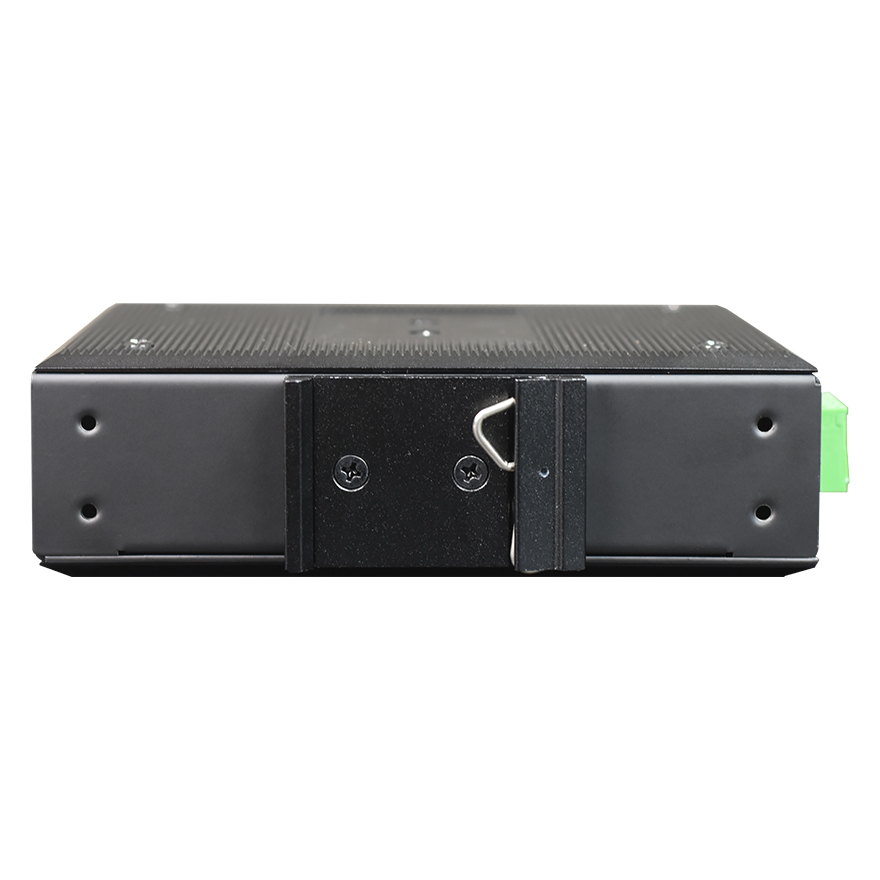

Rail or wall mounting

Wide temperature range: Operating temperature -40℃ ~ + 85℃

All models are tested by 100% roast machine


● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

● Ethernet interface(10/100M)

Interface rate: 10/100Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

● Working environment

Working temperature: -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 90°C

Storage Humidity: 5%~95 % (no condensation)



Model Number: FCMG-F1

Functional Description

Industrial rail type FE Fiber Media Converter,Working temperature -40℃ ~ + 85℃

Port Description

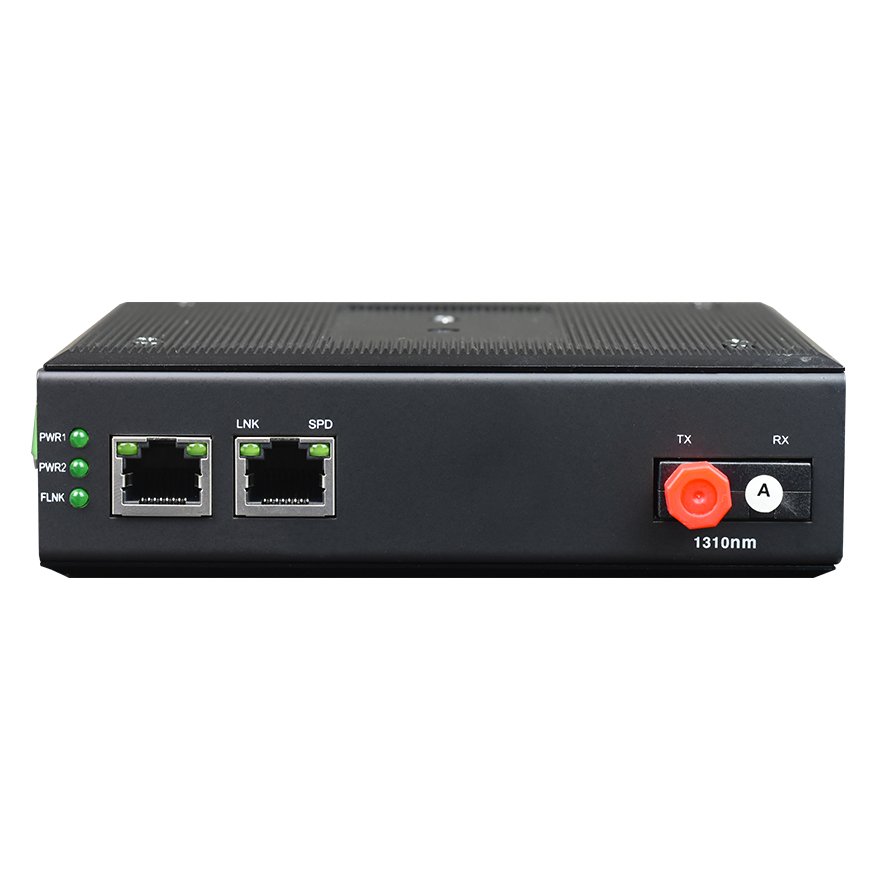

One Fiber interface; one FE Interface

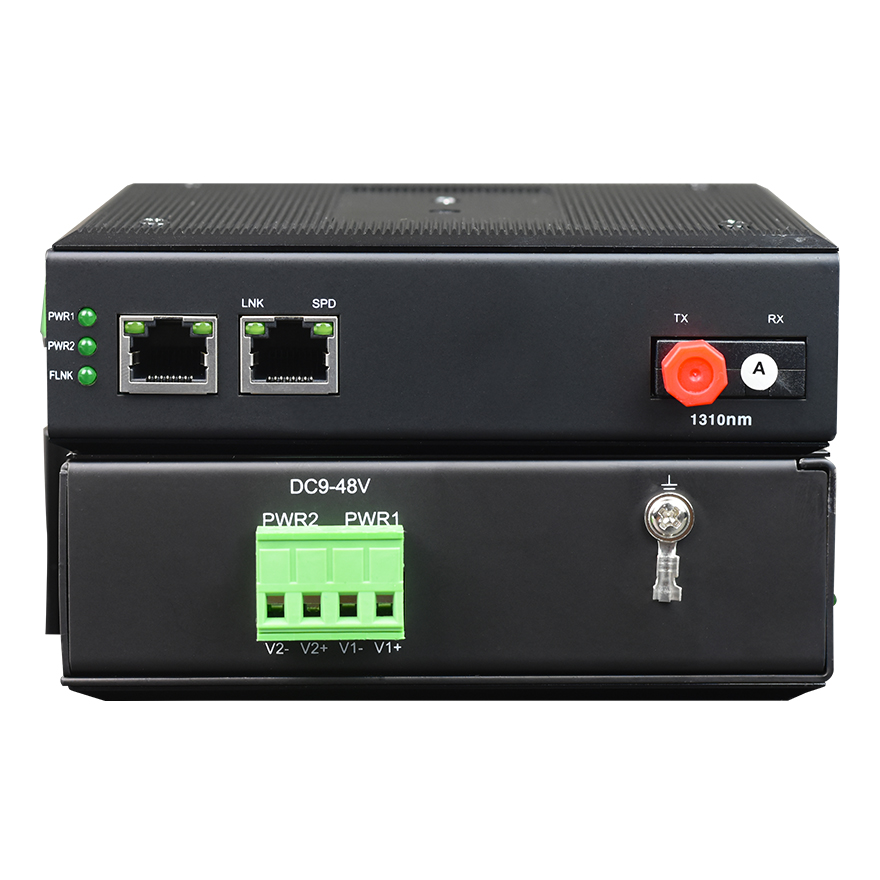

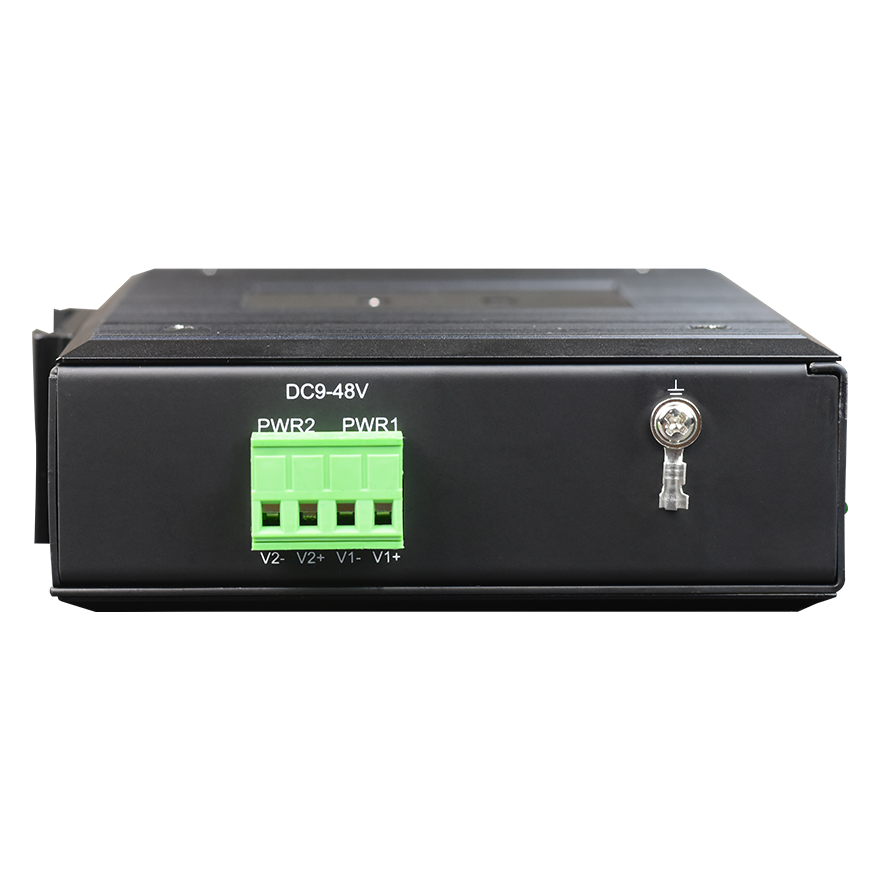

Dual redundant power inputs DC9-48V/AC9-48V, power consumption <10W

Overload Protection; Support reverse polarity protection; Support redundancy protection: Support Access Terminal: 4-pin plug-in terminal pitch of 5.08mm


Product Size: 133 X120 X40mm (WXDXH)
