HDMI vs DP: A Comprehensive Comparison of Video Interface Standards

Time : May. 15, 2023    View : 76

In the ever-evolving landscape of technology, video display standards play a crucial role in delivering high-quality visuals to our screens. Among the numerous video interface options available, two popular standards stand out: HDMI (High-Definition Multimedia Interface) and DP (DisplayPort). These two standards have revolutionized the way we connect and transmit audio and video signals, providing immersive experiences across a wide range of devices. In this article, let’s explore and compare HDMI and DP in terms of their features, capabilities, and applications.

hdmi dp

Introduction to HDMI and DP

HDMI (High-Definition Multimedia Interface) and DP (DisplayPort) are digital video and audio interface standards that have become the industry benchmarks for transmitting high-quality multimedia content. They both offer a seamless connection between various devices such as televisions, monitors, projectors, and computers, ensuring a smooth transfer of audio and video signals.



HDMI: An Overview

HDMI is a widely used interface standard that was first introduced in 2003. It has undergone several iterations and improvements over the years, with the latest version being HDMI 2.1. HDMI primarily focuses on delivering high-definition video and audio signals, making it ideal for home entertainment systems and consumer electronics. It supports a wide range of resolutions, including standard definition (SD), high definition (HD), and ultra-high definition (UHD or 4K).



DP: An Overview

DisplayPort (DP), developed by VESA (Video Electronics Standards Association), made its debut in 2006. It was designed to address the limitations of existing video interface standards and provide enhanced features and capabilities. DisplayPort has also undergone revisions, with the most recent version being DisplayPort 2.0. DP offers higher bandwidth, better refresh rates, and greater flexibility in terms of multi-monitor setups, making it a preferred choice for professionals and gamers.



Comparison of HDMI and DP

1. Bandwidth:

Bandwidth refers to the amount of data that can be transmitted per second. HDMI and DP differ in their maximum bandwidth capabilities. HDMI 2.0 supports up to 18.0 Gbps (gigabits per second), while HDMI 2.1 can handle up to 48.0 Gbps. On the other hand, DisplayPort 1.4 has a maximum bandwidth of 32.4 Gbps, and DisplayPort 2.0 offers an impressive 80 Gbps. The higher bandwidth of DP makes it capable of supporting higher resolutions, refresh rates, and color depths.



2. Resolution Support:

Both HDMI and DP can handle a wide range of resolutions, but DP generally offers higher capabilities. HDMI 2.0 can support resolutions up to 4K @60Hz, while HDMI 2.1 can handle 8K @60Hz or 4K @120Hz. DisplayPort 1.4 can support 8K @60Hz or 4K @120Hz, and DisplayPort 2.0 takes it a step further, enabling 8K @120Hz or 16K @60Hz. Therefore, if you’re looking for the highest resolutions and refresh rates, DP is the superior choice.

hdmi dp

3. Refresh Rates:

Refresh rate refers to the number of times per second the display refreshes its image. A higher refresh rate results in smoother visuals, especially in fast-paced gaming or action scenes. HDMI 2.0 and DP 1.4 both support 4K @60Hz, providing a smooth viewing experience. However, DP 2.0 surpasses HDMI 2.0 by supporting 8K @120Hz, which is crucial for gaming enthusiasts and content creators who demand a higher level of fluidity in their visuals. Additionally, DP 2.0 also offers the option for Multi-Stream Transport (MST), allowing users to connect multiple displays using a single cable.



4. Audio Capabilities:

Both HDMI and DP support high-quality audio transmission, including multi-channel audio formats like Dolby TrueHD and DTS-HD Master Audio. HDMI has a significant advantage in terms of audio formats, as it can transmit lossless audio formats such as Dolby Atmos and DTS:X, which provide an immersive audio experience. HDMI also supports Audio Return Channel (ARC), enabling the transmission of audio from the TV back to the audio system without the need for a separate audio cable. DisplayPort, on the other hand, does not support ARC.

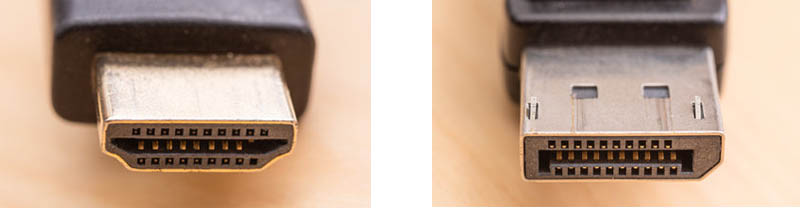

5. Connector Types:

HDMI and DP use different connector types, and this can influence their applications and compatibility. HDMI connectors are most commonly found in consumer electronics devices such as televisions, Blu-ray players, and gaming consoles. The standard HDMI connector is a 19-pin Type A connector. However, there are smaller HDMI connectors like the Type C (Mini HDMI) and Type D (Micro HDMI), which are commonly used with portable devices. On the other hand, DisplayPort connectors are found on computers, monitors, and professional-grade equipment. The standard DisplayPort connector is a 20-pin connector, and it is backward compatible with older DisplayPort versions. DisplayPort also introduced a smaller connector known as the Mini DisplayPort, which is commonly found on Apple devices.

hdmi dp

6. Applications:

HDMI and DP find applications in various domains due to their unique features and capabilities. HDMI is widely used in home entertainment systems, connecting devices like TVs, set-top boxes, Blu-ray players, and gaming consoles. It is also prevalent in the consumer electronics industry, including smartphones, tablets, and digital cameras. On the other hand, DP is commonly used in professional settings, such as video editing workstations, graphic design, and CAD applications. DP’s higher bandwidth, support for multiple displays, and adaptive sync technologies make it popular among professionals and gamers who require precise visuals and smooth gameplay.

hdmi dp

HDMI and DP are two prominent video interface standards that have significantly influenced the digital connectivity landscape. While HDMI excels in consumer electronics and home entertainment systems, DP shines in professional settings, providing superior performance and flexibility. Both standards have evolved over time, with HDMI 2.1 and DisplayPort 2.0 pushing the boundaries of resolution, refresh rates, and bandwidth.



When choosing between HDMI and DP, consider the specific requirements of your setup and the devices you plan to connect. If you prioritize higher resolutions, refresh rates, and advanced gaming features, DP is an excellent choice. However, if you’re primarily focused on home entertainment and compatibility with consumer electronics devices, HDMI should meet your needs.



In the end, the choice between HDMI and DP ultimately depends on your specific requirements, device compatibility, and the level of performance you desire. Regardless of your choice, both HDMI and DP have revolutionized the way we connect and experience audiovisual content, enhancing our viewing and gaming experiences to new heights.
