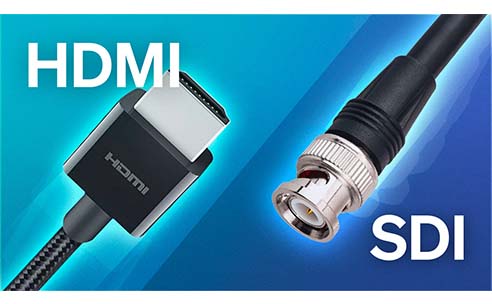

In the world of video production and broadcasting, two dominant connection standards have emerged: High-Definition Multimedia Interface (HDMI) and Serial Digital Interface (SDI). Both of these interfaces have their unique features, advantages, and disadvantages. In this blog post, we’ll dive deep into the world of HDMI and SDI, comparing their technical specifications, use cases, and overall performance. So, let’s get started!
Introduction
Before we delve into the technical aspects and comparisons, let’s briefly introduce HDMI and SDI.

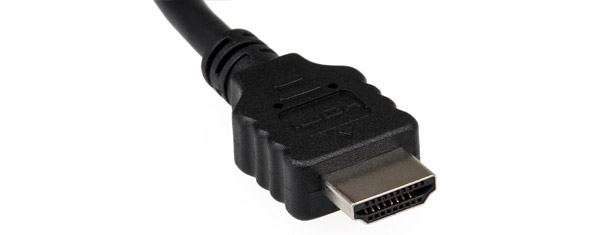

Overview of HDMI
High-Definition Multimedia Interface (HDMI) is a digital interface for transmitting high-definition video and audio signals. It was introduced in 2003 by a consortium of leading electronics manufacturers, including Panasonic, Philips, Sony, and Toshiba. HDMI has now become the most common interface for consumer electronics, such as TVs, monitors, gaming consoles, Blu-ray players, and more.

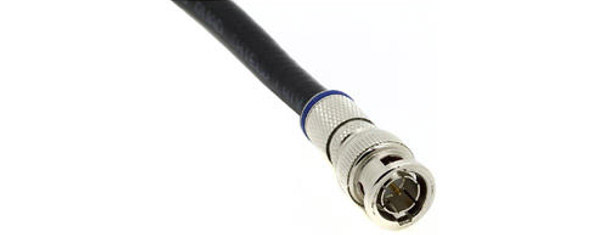

Overview of SDI
Serial Digital Interface (SDI) is a family of digital video interfaces first introduced in 1989 by the Society of Motion Picture and Television Engineers (SMPTE). SDI is primarily used in professional video production environments, such as broadcast studios, live event production, and high-end video equipment. It has evolved over the years to support various resolutions and frame rates, with the most common variants being SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.
Technical Comparisons
Now that we have a basic understanding of HDMI and SDI, let’s compare their technical aspects.
Resolution and Frame Rate
HDMI supports a wide range of resolutions and frame rates, with the latest version, HDMI 2.1, supporting up to 10K resolution at 120Hz. In addition, HDMI 2.1 also introduces support for Dynamic HDR, which provides better color accuracy and contrast.
SDI also supports various resolutions and frame rates depending on the type of SDI. For instance, SD-SDI supports up to 480i/576i, HD-SDI supports up to 1080i/720p, 3G-SDI supports up to 1080p60, 6G-SDI supports up to 4K at 30fps, and 12G-SDI supports up to 4K at 60fps. SDI doesn’t support Dynamic HDR, but it does offer 10-bit and 12-bit color depth for better color accuracy.
Cable Length and Signal Strength
One of the most significant differences between HDMI and SDI is cable length and signal strength. HDMI cables are usually limited to around 15 meters (49 feet) before signal degradation occurs. In contrast, SDI cables can transmit video signals over much longer distances, with 3G-SDI supporting up to 100 meters (328 feet) and 12G-SDI up to 70 meters (230 feet) without signal loss.
Audio Support
Both HDMI and SDI support the transmission of audio signals alongside video. HDMI can handle up to 32 audio channels, while SDI supports up to 16 audio channels. However, HDMI supports a wider range of audio formats, including Dolby Atmos and DTS:X, which provide immersive, object-based audio experiences.
Copy Protection
HDMI incorporates High-bandwidth Digital Content Protection (HDCP), a form of copy protection that prevents unauthorized duplication of copyrighted content. This is important for consumer electronics, as it ensures that content creators are fairly compensated for their work. SDI doesn’t have any built-in copy protection, making it more suitable for professional environments where content is produced and distributed internally.
Connectors and Compatibility
HDMI connectors are available in five different types: Type A (Standard), Type B (Dual-Link), Type C (Mini), Type D (Micro), and Type E (Automotive). Type A is the most common HDMI connector and is used in most consumer electronics. HDMI connectors are also backward compatible, meaning that newer HDMI versions will work with older devices.
SDI connectors come in two main types: BNC and DIN 1.0/2.3. BNC is the most common SDI connector and isused in professional video equipment. DIN 1.0/2.3 connectors are smaller and used in compact devices, such as cameras and monitors. Unlike HDMI, SDI connectors are not backward compatible, so you’ll need to ensure that your devices support the same variant of SDI.
Use Cases
Now that we’ve compared the technical aspects of HDMI and SDI, let’s look at their typical use cases.
HDMI
As mentioned earlier, HDMI is the most common interface for consumer electronics. It’s an excellent choice for home theaters, gaming consoles, and connecting various media devices like Blu-ray players and streaming boxes to TVs and monitors. HDMI’s support for high resolutions, high frame rates, and advanced audio formats make it ideal for delivering high-quality content to consumers.
SDI
SDI is primarily used in professional video production environments, such as broadcast studios, live event production, and high-end video equipment. Its long cable runs, robust signal transmission, and support for multiple audio channels make it well-suited for these applications. Additionally, the lack of copy protection in SDI makes it easier to work with in professional settings where content is produced and distributed internally.
Both HDMI and SDI have their unique advantages and disadvantages. HDMI is the go-to choice for consumer electronics, offering high-quality video and audio transmission, support for advanced audio formats, and built-in copy protection. SDI, on the other hand, is the preferred choice for professional video production environments, providing long cable runs, robust signal transmission, and support for multiple audio channels.
When deciding between HDMI and SDI, consider your specific needs and the environment in which you’ll be using these interfaces. For home entertainment and consumer electronics, HDMI is likely the better choice. For professional video production and broadcasting, SDI may be more appropriate. Ultimately, understanding the differences between HDMI and SDI will help you make the best decision for your specific needs.
