Is Modbus the Same as RS-485?

Time : May. 29, 2023    View : 101


When it comes to industrial communication protocols, Modbus and RS-485 are two terms that often come up. They are frequently mentioned together, leading to some confusion about their relationship. In this article, we will delve into the details and answer the question: Is Modbus the same as RS-485?


What is RS-485?

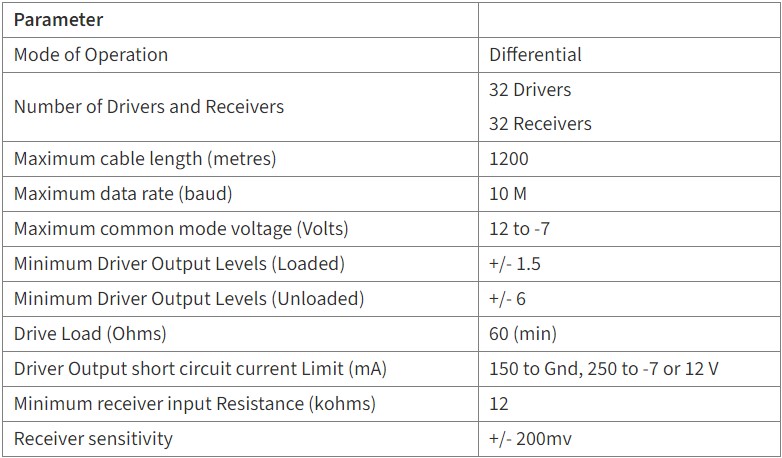

RS-485, also known as TIA-485 or EIA-485, is a widely used physical communication standard. It specifies the electrical characteristics for transmitting data over long distances using a balanced differential signal. RS-485 supports multi-drop communication, allowing multiple devices to be connected on a single bus, making it suitable for industrial applications.


RS-485 provides a robust and reliable communication link, enabling data transfer at high speeds over long cable lengths. It uses two signal lines, namely A and B, for transmitting data differentially, which helps in reducing the effects of electrical noise and interference.


What is Modbus?

Modbus, on the other hand, is a widely adopted communication protocol used in industrial automation. It was developed in the late 1970s by Modicon, now a part of Schneider Electric. Modbus has since become a de facto standard in the industry due to its simplicity and versatility.

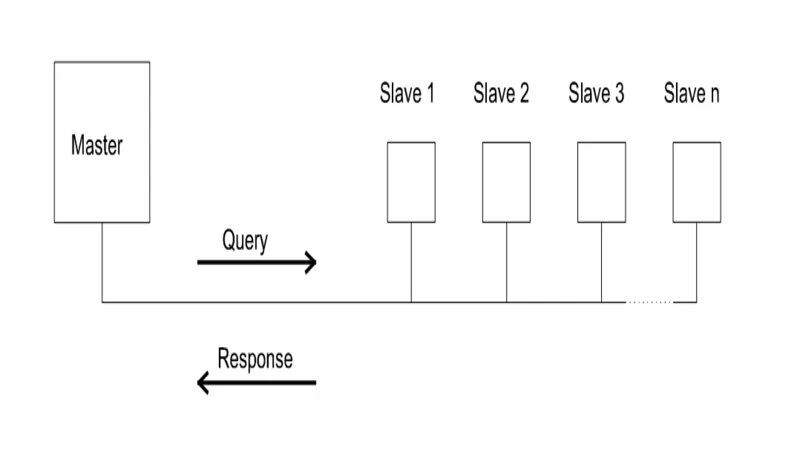

Modbus defines the format of the data being exchanged between devices. It primarily operates in a master-slave configuration, where a master device initiates communication with one or more slave devices. The protocol allows for the reading and writing of data values, such as process variables and control parameters.


Modbus over RS-485: Here’s the important point to note: Modbus and RS-485 are not the same thing. Rather, Modbus is a protocol that can be implemented over different physical communication media, including RS-485. In other words, RS-485 is one of the many options available for implementing Modbus.


However, due to its robustness and suitability for industrial environments, RS-485 is commonly used in Modbus installations. The RS-485 physical layer provides the necessary electrical characteristics for transmitting Modbus messages reliably over long distances.


Advantages of RS-485 in Modbus Applications:

Using RS-485 as the physical layer for Modbus offers several advantages:

1. Long-distance communication:

RS-485 allows for reliable data transmission over long cable lengths, making it ideal for industrial environments where devices are spread out.

2. Multi-drop capability:

RS-485 supports multi-drop communication, enabling multiple devices to be connected on a single bus. This simplifies wiring and reduces the overall system cost.

3. Noise immunity:

The differential signaling of RS-485 helps reject common-mode noise, providing better noise immunity than other communication standards.



In summary, while Modbus and RS-485 are often mentioned together, they are different. Modbus is a protocol for industrial communication, while RS-485 is a physical communication standard. RS-485 is commonly used as the physical layer for implementing Modbus due to its robustness, long-distance capabilities, and multi-drop support.


Understanding the distinction between Modbus and RS-485 is important when designing and implementing industrial communication systems. By leveraging the strengths of RS-485 and the flexibility of Modbus, engineers can create reliable and efficient solutions for industrial automation.


Remember, Modbus can be implemented over other communication media, such as Ethernet (Modbus TCP) or serial connections (Modbus RTU). The choice of the physical layer depends on the specific requirements of the application and the available infrastructure.
