RS232 vs RS485: What are the differences between them?

Time : May. 17, 2023    View : 82

RS232 and RS485 are two widely used protocols for serial communication. Although they share some similarities, they have distinct differences that make them suitable for different applications. Let’s explore what RS232 and RS485 are, their differences, similarities, and applications.

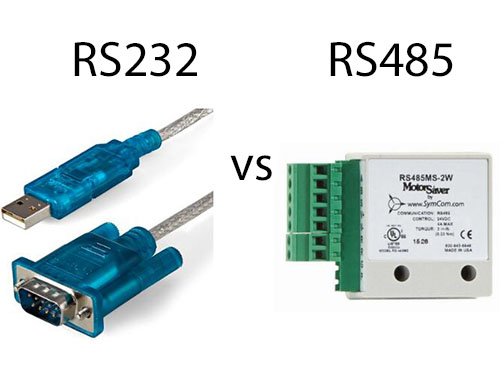

rs232 and rs485

What is RS232?

RS232, also known as EIA232, is a standard for serial communication transmission of data. It was introduced in 1962 by the Electronic Industries Association (EIA) and is still widely used today. RS232 uses a single-ended communication method, which means that a single wire is used for transmitting and receiving data. It operates at a maximum data rate of 115.2 kbps and has a maximum cable length of 50 feet. RS232 uses a voltage level of ±3V to ±15V to represent binary 1 and 0, respectively. It uses a 9-pin or 25-pin D-sub connector and can support up to two devices.

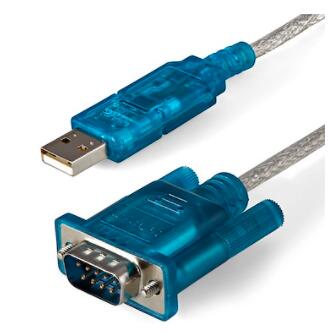

rs232

What is RS485?

RS485, also known as EIA485, is a standard for serial communication transmission of data. It was introduced in 1983 by the EIA and is designed for longer-distance transmission of data. RS485 uses a different communication method, which means that two wires are used for transmitting and receiving data. It operates at a maximum data rate of 10 Mbps and has a maximum cable length of 4000 feet. RS485 uses a voltage level of ±5V to represent binary 1 and 0, respectively. It uses a 2, 4, or 6-pin screw terminal connector and can support up to 32 devices.

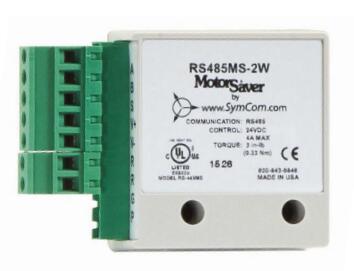

rs485

Differences between RS232 and RS485

1. Communication method

RS232 uses a single-ended communication method, while RS485 uses a different communication method. RS232 uses a single wire for transmitting and receiving data, while RS485 uses two wires.



2. Cable length

RS232 has a maximum cable length of 50 feet, while RS485 has a maximum cable length of 4000 feet. This makes RS485 better suited for long-distance communication.



3. Data rate

RS485 has a higher data rate than RS232. RS485 can operate at a maximum data rate of 10 Mbps, while RS232 can operate at a maximum data rate of 115.2 kbps.



4. Number of devices

RS485 can support up to 32 devices on the same bus, while RS232 can only support two devices.



5. Connector type

RS232 uses a 9-pin or 25-pin D-sub connector, while RS485 uses a 2, 4 or 6-pin screw terminal connector.



6. Voltage level

RS232 uses a voltage level of ±3V to ±15V to represent binary 1 and 0, respectively, while RS485 uses a voltage level of ±5V to represent binary 1 and 0, respectively.



Specifications of RS232 and RS485

  RS232 RS485
Voltage System Voltage level-based Differential
Total Drivers and Receivers on One Line 1 Driver, 1 Receiver 32 Drivers, 32 Receivers(One Driver active at a time)
Line Configuration Point-to-point Multidrop
Maximum Operational Distance 15M / 50FT 1,200M / 3000FT
Maximum Data Transmission Rate 1MBit/s 10MBit/s
Duplex Mode Full Duplex Half Duplex or Full Duplex
Maximum Driver Output Voltage +/-25V -7V to +12V
Receiver Input Resistance 3 to 7 kΩ 12 kΩ
Receiver Input Voltage Range +/-15V -7V to +12V
Receiver Sensitivity +/-3V ±200mV



Similarities between RS232 and RS485

1. Serial communication

Both RS232 and RS485 are protocols for serial communication. They transmit data bit by bit over a single wire or pair of wires.



2. Half-duplex communication

Both protocols use half-duplex communication, meaning that data can only be transmitted in one direction at a time.



Applications of RS232 and RS485

RS232 is commonly used in applications where short cable lengths are required, such as computer peripherals, point-of-sale terminals, and laboratory equipment. It is also used in non-industrial applications, including audio and video equipment.



RS485 is commonly used in industrial automation, building automation, and process control applications. It is ideal for applications that require long cable lengths and communication between multiple devices. It is also used in applications that require noise immunity, such as in harsh industrial environments.



Advantages and disadvantages of RS232 and RS485

RS232’s advantages include its low cost, simplicity, and wide compatibility with various devices. However, it has limited data transmission speed, short cable length, and poor noise immunity.



RS485’s advantages include its long cable length, high data transmission speed, and noise immunity. However, it requires more complex wiring and connectors, and its implementation can be more expensive.



In summary, RS232 and RS485 are two widely used protocols for serial communication. Although they share some similarities, they have distinct differences that make them suitable for different applications. RS232 is suitable for applications that require short cable lengths, non-industrial applications, and low data rates, while RS485 is suitable for applications that require long cable lengths, communication between multiple devices, high data rates, and noise immunity in harsh industrial environments. Understanding the differences between the two protocols is crucial for selecting the right communication method for your application.
