In the world of industrial automation and control, two terms that often come up are RS485 and Modbus. While these terms are related to each other, they are not interchangeable. In this article, let’s explore what RS485 and Modbus are, and how they differ from each other.
What is RS485?

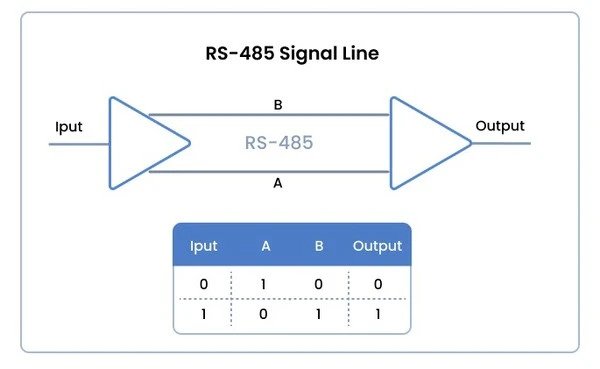

RS485 is a standard for serial communication of data between devices over a wired connection. It specifies the electrical characteristics of the physical layer, such as the voltage levels, cable impedance, and signaling rates. RS485 is a differential signaling standard, which means that it uses two wires to transmit data. One wire carries a signal that is the inverse of the other wire, which helps to reduce noise and increase the range of the signal.
RS485 can support multiple devices on a single bus, up to a maximum distance of 1200 meters (depending on the baud rate and cable quality). It can operate at speeds of up to 10 Mbps, although typical speeds are much slower (e.g., 9600 bps or 19200 bps). RS485 can be used with different protocols, including Modbus, Profibus, and others.
What is Modbus?
Modbus is a protocol that specifies the format and rules for exchanging data between devices over a network. It was originally developed by Modicon (now Schneider Electric) for use with their programmable logic controllers (PLCs). Modbus can be used over different communication media, including RS485, TCP/IP, and others.

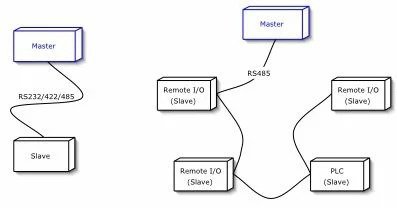

Modbus uses a master-slave architecture, where one device (the master) initiates the communication and the other devices (the slaves) respond. The master sends messages to the slaves, requesting data or issuing commands. The slaves respond with their data or status information. Modbus messages are structured in a particular way, with specific fields for the function code, the data, and the error checking.
Modbus supports different data types, including integers, floating-point numbers, and strings. It can also support more complex data structures, such as arrays and structures. Modbus is a relatively simple protocol, and it is widely used in industrial applications for monitoring and controlling equipment.
What is the Difference Between RS485 and Modbus?
The main difference between RS485 and Modbus is that RS485 is a physical layer standard, while Modbus is a communication protocol. RS485 specifies the electrical characteristics of the wires used to transmit data, while Modbus specifies the format and rules for exchanging data between devices.
RS485 can be used with different protocols, including Modbus. Modbus can also be used over different physical layers, including RS485. In other words, RS485 is a means of transmitting data, while Modbus is a way of organizing and interpreting that data.
Another difference between RS485 and Modbus is that RS485 can support multiple devices on a single bus, while Modbus uses a master-slave architecture. RS485 can also operate at higher speeds than Modbus, although this depends on the specific implementation.
In a word, RS485 is a physical layer standard for serial communication of data, while Modbus is a protocol that specifies the format and rules for exchanging data between devices. RS485 can be used with different protocols, including Modbus, while Modbus can be used over different physical layers, including RS485. Understanding the differences between these two concepts is essential for anyone working with industrial automation and control systems.
