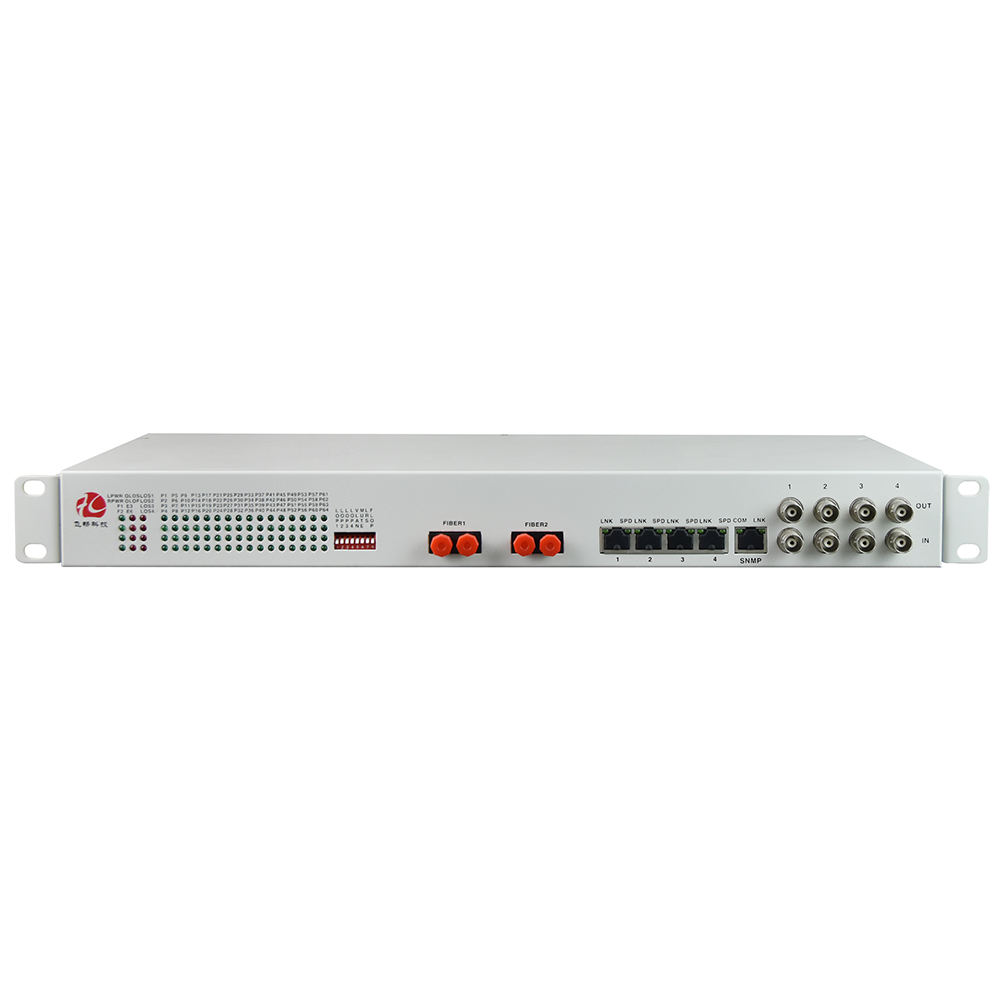

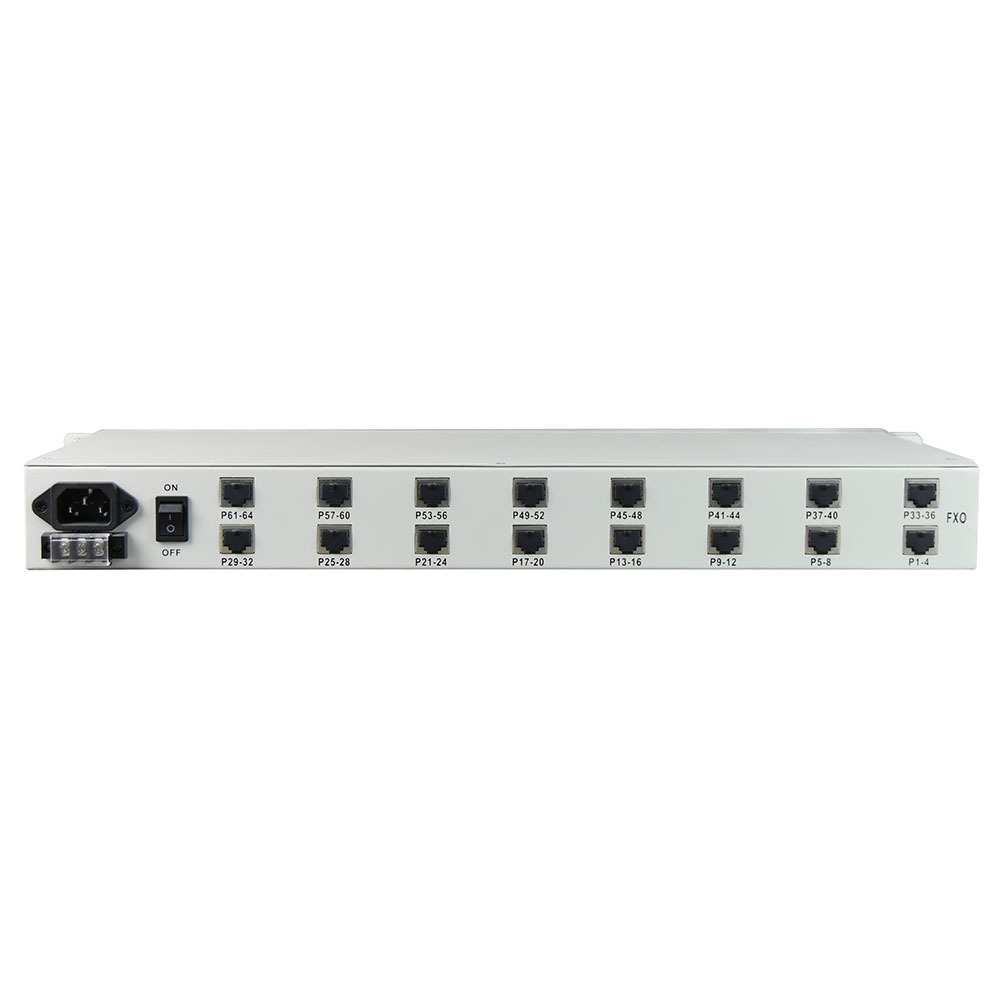

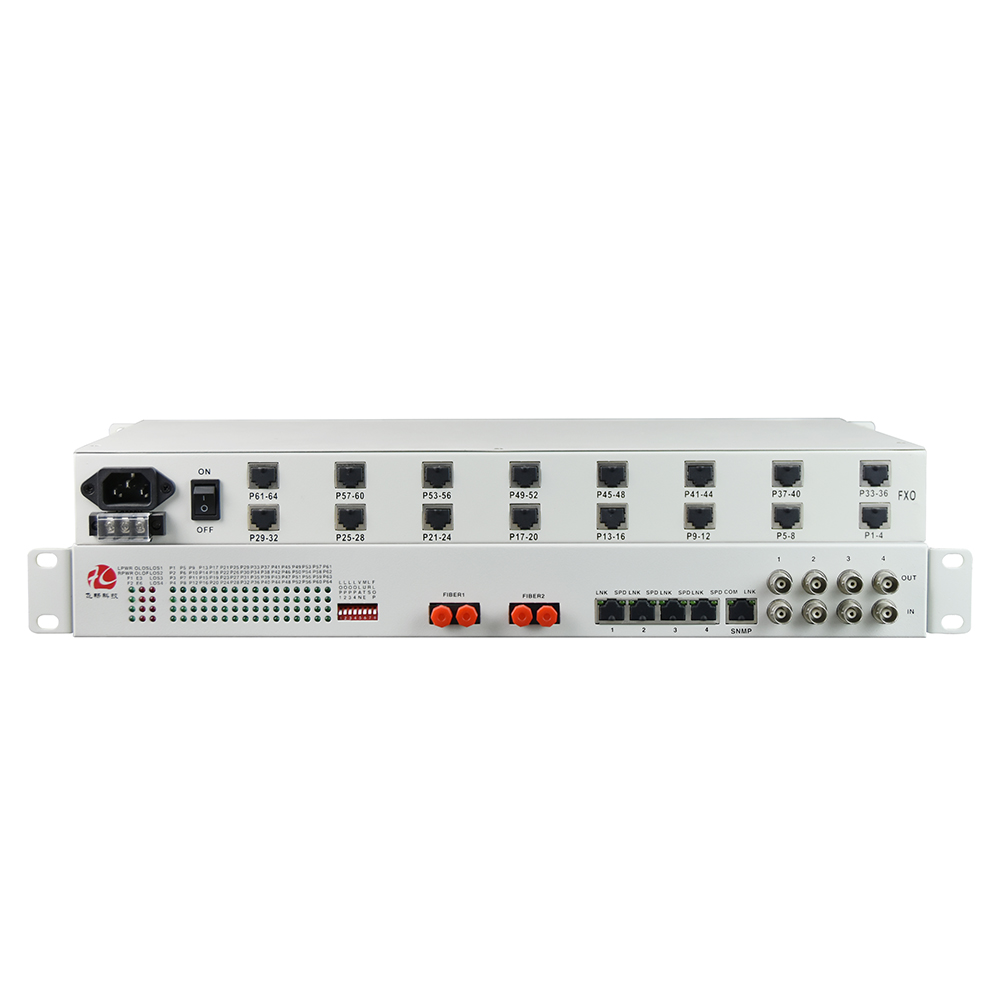

64 Channel Telephone POTS Line over Ethernet (IP) Extender

This converter encapsulates voice data into IP packets and supports UDP packetization. It enables the conversion of 64 voice services to 2*100 Mbps Ethernet. It can be used within the same subnet or achieve communication between different subnets through a router.

● The Ethernet interface supports speeds of 10 Mbps/100 Mbps and can operate in full-duplex or half-duplex mode with auto-negotiation.

● It supports automatic recovery in case of a power outage or network failure.

● The converter supports Ethernet packet reordering and caching to mitigate network delays.

● Users can adjust the frame length to balance bandwidth and transmission latency.

● Based on hardware design, it ensures fast startup.

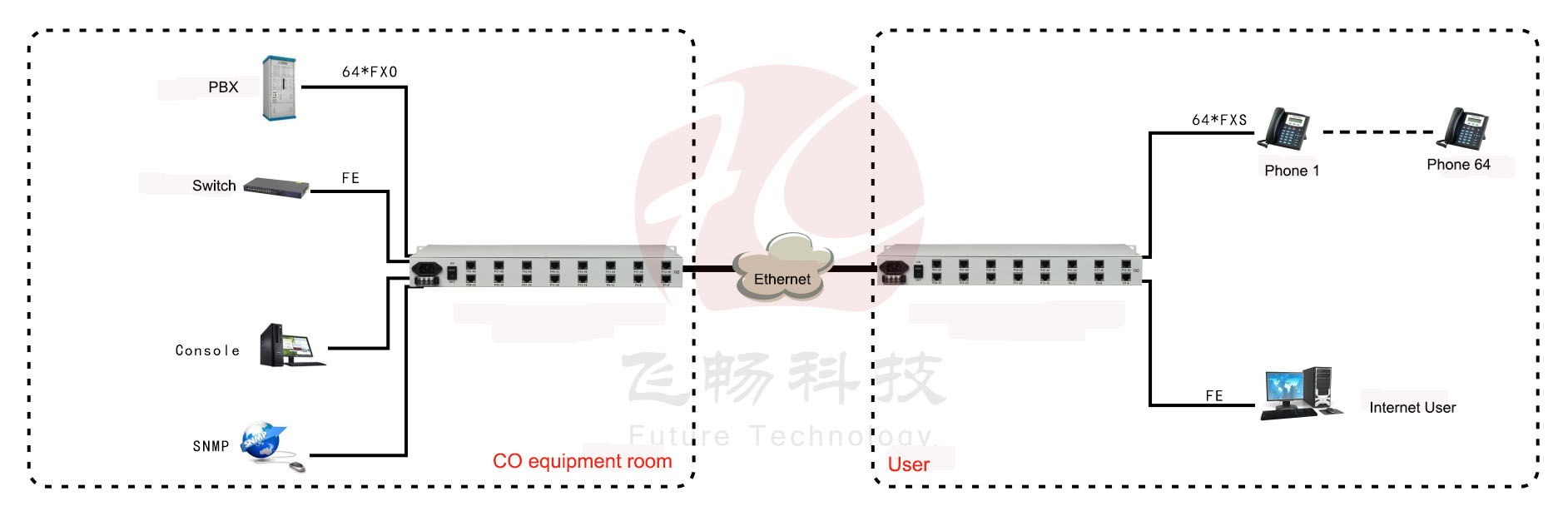

● The voice ports support various interfaces such as FXO/FXS/2-wire audio/magnetic telephone interfaces. The FXO port connects to a PBX, while the FXS port connects to user telephones.

● For voice FXO/FXS access, it supports caller ID display, reverse polarity billing, and fax functionality.

● The telephone interface facilitates mutual dialing between two sites.

● The device supports management via Console serial port and web-based management.

● Multiple power supply options are available, including AC220V, DC-48V/DC24V, etc. It supports dual power backup modes such as AC+DC, AC+AC, and DC+DC.

● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3, IEEE 802.1Q (VLAN)

Speed: 10/100M adaptive, full/half duplex fully adaptive

MAC Address Table: Can learn up to 4096 MAC addresses

Physical Interface: RJ45 connector supporting Auto-MDIX (Auto-crossover/Straight-through adaptation)

● FXS User Phone Port

Ringing Voltage: 75V

Ringing Frequency: 25Hz

2-wire Input Impedance: 600Ω (off-hook)

Return Loss: 20dB

● FXO Trunk Port

Ringing Detection Voltage: 35V

Ringing Detection Frequency: 17Hz-60Hz

2-wire Input Impedance: 600Ω (off-hook)

Return Loss: 20dB

● E&M 2/4-wire Audio Interface

E&M Type: TYPE V

E-Line Max Current: 22mA; Saturation Voltage: 3V

M-Line Constant Current: 7mA; Minimum Detection Current: 5mA

AD Gain: 0dB

DA Gain: 0dB

2/4-wire Input Impedance: 600Ω

● Magnetic Telephone Interface

Ringing Voltage: 75V

Ringing Frequency: 25Hz

2-wire Input Impedance: 600Ω (off-hook)

Return Loss: 20dB

● Product Specifications

System Power Supply: AC180V ~ 260V; DC -48V; DC +24V

Power Consumption: ≤5W

Appearance Structure: 485 (length) X 140 (width) X 45 (height) mm, 19-inch 1U rack-mountable

● Environmental Index

Operating Temperature: -10°C to +60°C (commercial grade) / -40°C to +85°C (industrial grade)

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours
