Redundant links improve the physical availability of an industrial Ethernet network, but an uncontrolled Layer 2 loop can make the network unusable. Ethernet frames do not have an IP-style hop limit. Broadcast, unknown unicast, and some multicast frames can therefore circulate and multiply while switch MAC tables oscillate between ports. Rapid Spanning Tree Protocol (RSTP) keeps the redundant cabling while building one loop-free forwarding tree.
Why a Layer 2 loop grows so quickly
A switch floods a broadcast or unknown-destination frame through other ports in the same VLAN. In a closed loop, another switch can receive that copy and flood it again. Traffic consumes link capacity, switching resources, and CPU time. Common evidence includes a broadcast surge, MAC addresses moving repeatedly between ports, slow management access, and intermittent loss of application traffic.
Removing one cable can stop the immediate storm, but it does not explain why the intended control mechanism failed. Engineers still need to inspect the physical topology, VLAN membership, port roles, bridge identifiers, and received BPDUs.
How RSTP creates a loop-free tree
Participating bridges exchange Bridge Protocol Data Units. The best bridge identifier becomes the root bridge. Every non-root switch selects the port with the best path toward that root as its root port. Each network segment also selects one designated port. Redundant ports that do not win those roles can remain as alternates in the discarding state.
An alternate port still receives and processes BPDUs, but it does not forward ordinary data frames or learn their source MAC addresses. The physical ring remains ready for failure recovery while the logical data path is opened into a tree.

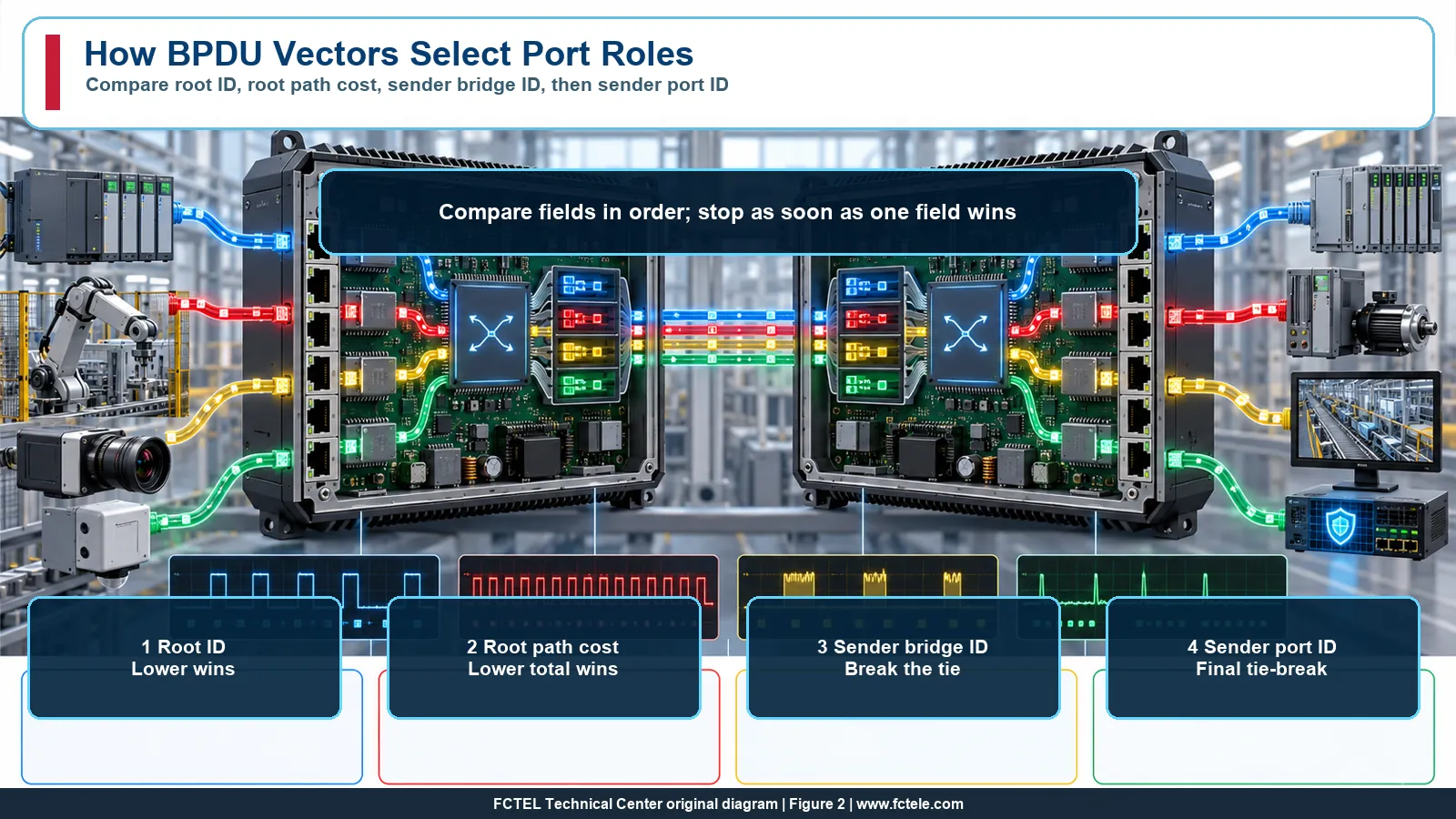

How the BPDU priority vector is compared
A received BPDU is not judged by one priority number. Bridges compare fields in sequence: root bridge ID, accumulated root path cost, sender bridge ID, and sender port ID. As soon as one field produces a winner, later fields no longer matter. Only a tie proceeds to the next field.
Link rate can influence default path cost, but implementations and cost ranges can differ across device generations. Inspect the configured values and live BPDU information instead of guessing the path from port speed. Parallel physical links also need a clear choice between independent spanning-tree ports and members of a link aggregation group.

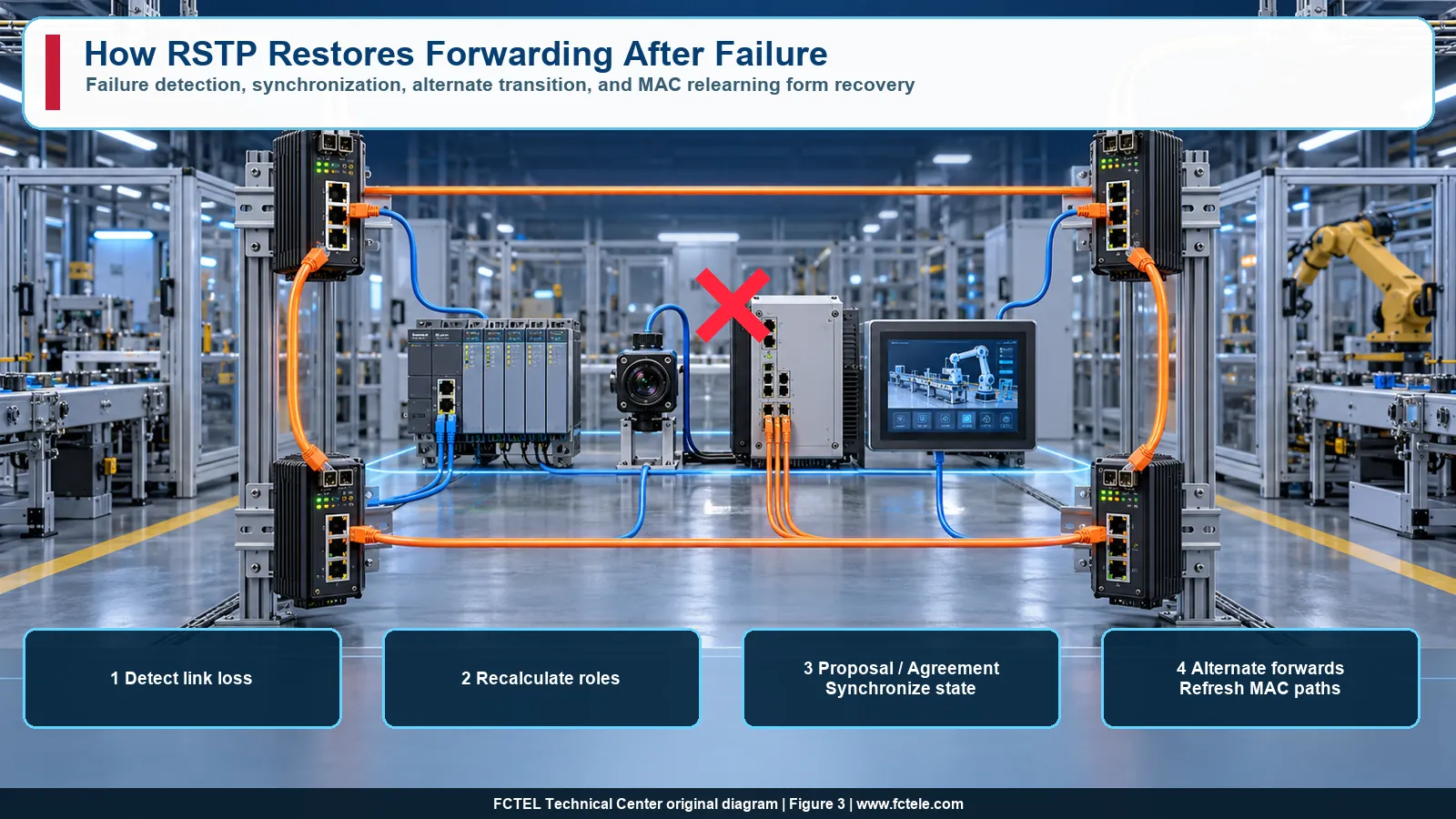

Why RSTP converges faster than classic STP
RSTP uses explicit root, designated, alternate, and backup roles. On suitable point-to-point full-duplex links, Proposal and Agreement exchanges synchronize forwarding state so a port can move quickly without waiting through every legacy timer stage. Edge ports can also transition promptly when they connect to a confirmed single endpoint.
Fast convergence is not zero interruption. Detection method, link negotiation, CPU load, topology size, VLAN instances, and endpoint neighbor tables all affect application recovery. A failure detected only by missing BPDUs is normally slower than a direct physical link-down event.
Edge ports and protection functions
A port connected to one PLC, camera, or HMI can be configured as an edge port after confirming that it will not connect another bridge. If an edge port receives a BPDU, the network has changed. BPDU protection can stop an accidental switch from rewriting the topology. Root protection limits where a superior root can appear, while loop protection can address conditions such as one-way BPDU loss.
Names and exact behavior vary by platform and firmware. Enabling every access port as an edge port without checking the wiring removes an essential safety boundary. Validate each protection feature on the target software release.
Configuration and acceptance testing
Draw the physical and logical topology for every VLAN. Select a primary and backup root bridge, then set path costs to match the intended business direction. The root normally belongs near the aggregation or control center rather than being selected accidentally by the lowest factory MAC address. Save bridge IDs, port roles, BPDU counters, and MAC tables before changes.
Acceptance should cover the normal path, one failed link, link restoration, switch restart, and an accidentally introduced loop. Record port-role transitions, packet loss, longest application interruption, MAC movement, and alarm timestamps under realistic control and video traffic. RSTP and protection capabilities in FCTEL industrial switches vary by model and firmware; consult current documentation and test the exact target topology before deployment.
