How to Troubleshoot High E1 Bit Error Rate on a PDH Optical Terminal

01Define the failure before touching the link

An E1 circuit crossing a PDH optical span looks like one path to its user, but it contains several independently failing sections: the local service equipment and its electrical lead, the near-end PDH E1 interface, the optical patching and fiber, the far-end terminal and the remote E1 lead. High bit-error rate (BER) does not, by itself, identify which part is defective. Begin by recording the affected E1 channel, the first observed time, whether errors are continuous or intermittent, the applications affected and every alarm visible at both ends. Record whether other E1 channels or Ethernet services sharing the optical system remain healthy.

Synchronize the timestamps of the BER instrument, the two terminal logs and the service application as far as practicable. If only one E1 channel degrades, investigate that channel and its adjacent patching first. If several channels degrade together, the shared optical path, power supply or terminal status deserves earlier attention. These are priorities for testing, not a diagnosis made without evidence. A lit optical port or a working Ethernet service cannot prove that the E1 stream is error-free.

Obtain a maintenance window and confirm who controls both ends. Disconnecting an E1 lead or enabling a loopback can interrupt live traffic and can create alarms elsewhere in the network. The original configuration, optical-module identity and patch labels should be documented before changes so that every test has a safe rollback point.

02Read the alarm direction and measure the optical span

Loss of signal, often abbreviated LOS, indicates that a receiver does not see the expected input. It does not establish whether the cause is a disconnected fiber, a failed remote transmitter, lost power or another problem. Loss of frame, AIS, remote alarm indication and error counters need to be interpreted against the delivered model’s manual, including whether the alarm belongs to the optical or E1 side. A downstream alarm can be a consequence of an upstream defect, so the display location is not necessarily the failure location.

Inspect the fiber transmit/receive pairing, patch-cord bends and connector condition. Measure actual receive power with a suitable instrument and compare it to the installed optical module’s specification and the engineered link budget. Do not import a generic power threshold from a different model. If power or alarms vary with cabinet vibration, temperature or movement of a patch lead, focus on the distribution frame, adapters, pigtails and optical-module pairing. Connector cleaning belongs in a controlled procedure; never look into an active optical port.

If the optical layer appears stable but E1 errors continue, do not stop the investigation. The electrical interface, clocking or far-end wiring may still be wrong. The official FCTEL FCP-E4F4 4E1+4ETH PDH terminal page describes a remote E1 interface loopback capability, making it a relevant product reference for segmented maintenance. The actual control method must be taken from the manual for the shipped unit and firmware.

03Move the loopback point, not several variables at once

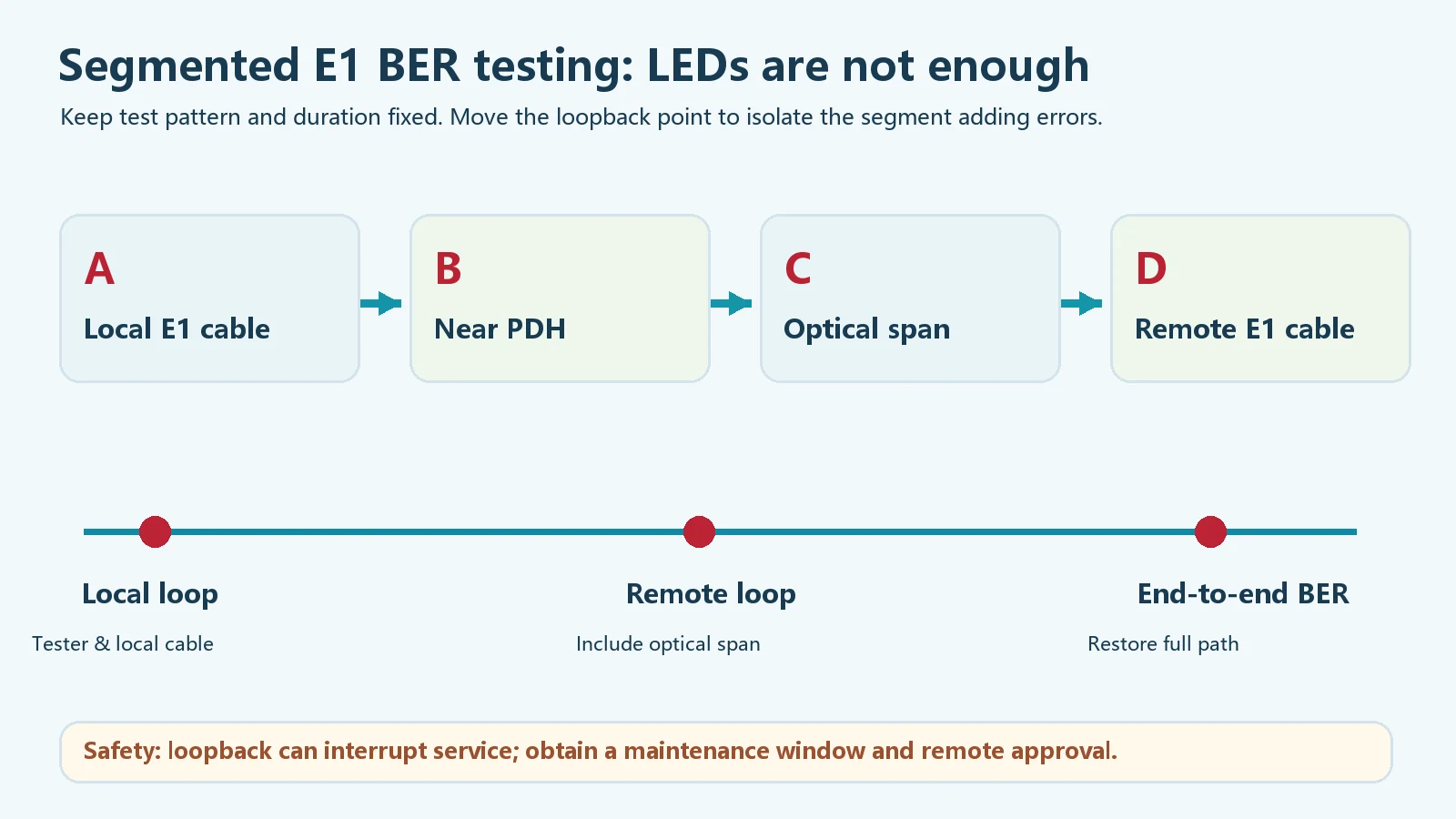

Prepare an E1 BER tester and adapters appropriate to the real port. Record the test pattern, clock source, measurement interval and starting counter values. First isolate the production service and run a near-end local loopback to check the tester, its short lead and the accessible local electrical path. Where the exact local-loop implementation does not include a particular connector or circuit, state that boundary in the test sheet rather than assuming it did.

Next, follow the terminal manual to request a far-end E1 loopback. This extends the test through the near terminal, the optical span and the remote terminal to the selected return point. If errors appear only after that extension, prioritize the newly included section; then use optical measurements, alarms and additional approved tests to separate fiber from terminal or timing problems. Finally remove the loopback and perform an end-to-end test that includes the remote electrical lead and service endpoint.

Keep the test pattern and observation period constant while changing one loopback point at a time. Compare newly accumulated errors, not counters that were already present before the test. Save raw counts, duration, alarm screenshots and the exact location of each return point. A loopback may produce intentional service loss or far-end alarms. Before handover, cancel every test loop, reconnect the normal route and have the remote party confirm the application is actually working.

04Understand the 75-ohm and 120-ohm boundary

An E1 electrical interface is commonly presented as 75-ohm unbalanced coaxial or 120-ohm balanced-pair wiring. A common but misleading rule says the two PDH terminals at opposite ends of a fiber must use the same impedance. They do not necessarily have to. The local PDH terminal’s E1 electrical interface should match the adjacent local E1 equipment and its cabling. The remote terminal’s E1 electrical interface should independently match the adjacent remote equipment and cabling. Between the terminals is an optical transmission path, not a continuous copper E1 lead.

Thus, one site may legitimately use a 75-ohm coaxial E1 connection and the other a 120-ohm balanced E1 connection, provided each local interface is supported and correctly wired. The harmful mismatch is at a single electrical connection: for example, joining a 75-ohm port directly to a 120-ohm cable/equipment arrangement without an appropriate approved converter. A balanced-pair connector that resembles an RJ45 must not be treated as an Ethernet port. Verify pin assignment, shielding and grounding; swapping wire colors does not transform impedance.

For the complete interface distinction, see the related FCTEL E1 75-ohm/120-ohm wiring explanation in Chinese. Select any impedance-conversion hardware by its published interface specification and test it under the real circuit conditions. Do not infer a product option from the appearance of its front-panel sockets alone.

05When there is no optical LOS, check clocking and patching

Persistent errors without optical LOS can be caused by unsuitable E1 clock relationships, poor connectors, incorrect framing or an instrument set up for the wrong test. Document which service equipment supplies timing and how each PDH terminal recovers or forwards it. Two independent timing sources may create slips or unstable operation, while a missing suitable source can also disrupt service. Clock policy is system-specific and should follow the circuit design and the actual product manual.

Check line coding, port enablement, frame mode and the BER tester’s own clock setting against the application. If errors change when a cable moves or nearby machinery operates, inspect coaxial crimping, screen continuity, paired-conductor integrity and terminal fastening. If an AIS or far-end alarm appears, trace the indication back toward the first event rather than replacing the box on which it is displayed. A known-good approved test lead can help, provided its original labels and route are preserved for rollback.

For each action, write down the observation that justified it and repeat the same measurement afterwards. Rebooting or replacing an optical terminal before segment isolation destroys useful diagnostic evidence and may hide an intermittent fault for a short time without removing it.

06Close the incident with a real-service acceptance test

After correcting the identified cause, remove every loopback, restore the intended optical and electrical connections, and run the BER test for the duration agreed in the project acceptance plan. Keep the error counts, synchronization status, alarm history, receive optical power and far-end status. Then validate the live application separately. A voice circuit may need a real call; a dedicated data circuit may need sustained application traffic and error monitoring. A clean tester screen and a healthy user experience are related but distinct pieces of evidence.

Preserve the delivered model and serial numbers, both local E1 interface types, fiber route, optical-module identification, test setup, before/after logs and a short description of the proven root cause. The FCP-E4F4 page establishes a genuine FCTEL PDH/E1 product and its remote-loopback direction. Ordering options, module selection and management software can change actual field operation, so use the documents shipped with the specific hardware. If a circuit has no signal at all, begin with supply and wiring checks before treating the incident as a high-BER problem.

For a neighboring service issue, consult the telephone optical-terminal commissioning and fault-isolation guide (Chinese). The general habit is the same: document the topology, test from a known-good endpoint, change one boundary at a time and return to real business traffic before declaring the link restored.
