Industrial Din Rail 2*Serial or 4*DI/DO + 4*GE Optical Converter FCP-G4D2

This product is an Ethernet IEEE 802.3 media converter. The device has four 1000Mbps Ethernet ports, providing a wire-speed bandwidth of 1000Mbps.  It supports fiber optic distances of 20/40/60/80/120 kilometers. The device also includes two selectable RS232/422/485 serial ports or four DI/DO channels.

● Fiber

Optical port: 1

Fiber: single fiber and dual fiber

Fiber interface: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode

Transmission distance without relay: 0~80Km

Typical transmission power:

Single-mode 100 μW – 0.93 mW

● 10/100/1000M Ethernet interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Speed: 10/100 /1000Mbps adaptive full/half-duplex

MAC Address Table: Supports learning up to 4096 MAC addresses

Physical Interface: RJ45 connector, supports Auto-MDIX

● Serial Interface

Standards

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD- GND

RS-485 4 wires: TxD+ TxD- RxD+ RxD- GND

RS-485 2 wires:

A(corresponding to TX+)

B(corresponding to TX-) GND

RS-232: RXD TXD GND

● Dry Contact Interface

Output interface type:

Dry contact

1: Signal relay dry contact output;

2: Optical MOS relay output (maximum internal resistance 25Ω)

Pulse quantity:

Optical MOS relay output, 0-VCC (VCC is the power supply voltage of this machine)

Response time: Signal relay dry contact output: <1.2ms, optical MOS relay output <0.6ms

Switch signal: Signal relay dry contact output 30VDC/0.5A; optical MOS relay output: 245VDC/0.12A

Maximum switching frequency: 50HZ

Output surge protection: Signal relay dry contact output: None;

Optical MOS Rrelay output: TVS+solid discharge tube protection

● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity:   0%—95% (non-condensing)

MTBF:              >100,000 hours

● The industrial Ethernet series is designed specifically for harsh and demanding industrial environments;

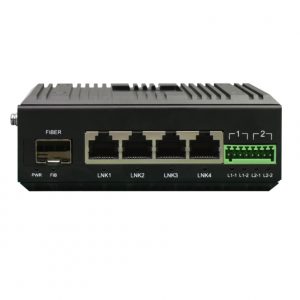

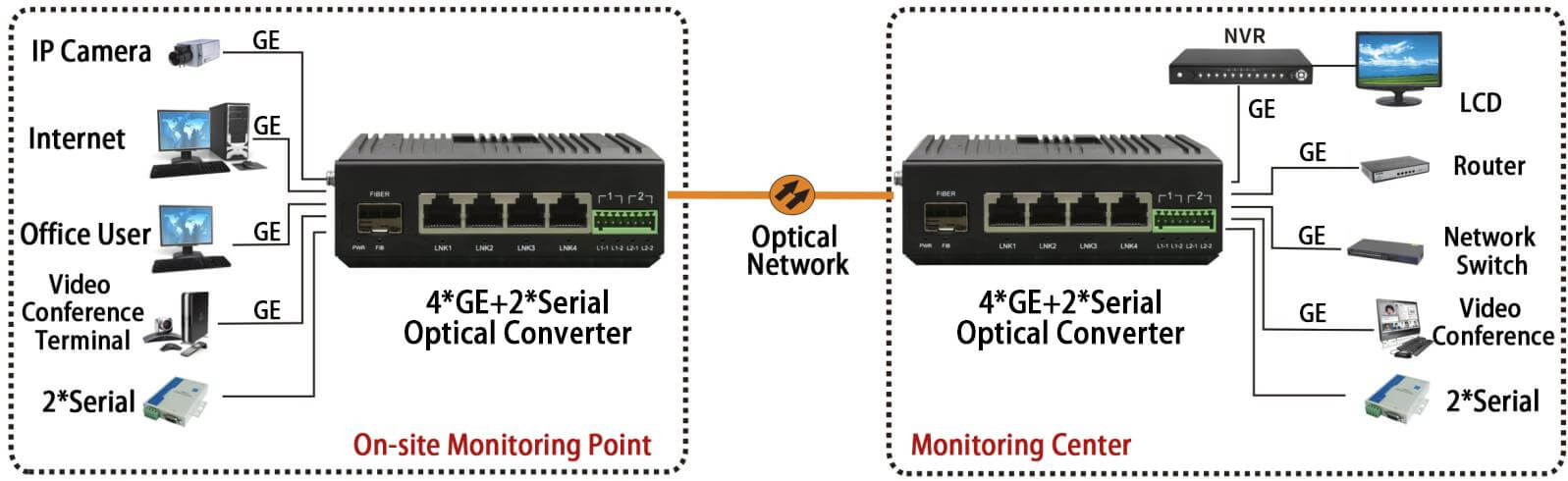

● The device provides 4 switched Gigabit Ethernet ports, 1 Gigabit fiber optic port, 2 optional RS232/422/485 serial interfaces or 4 digital inputs/outputs (1 serial port corresponds to 2 digital inputs/outputs);

● The fiber optic interface supports multimode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission modes, with SC/LC connectors available;

● It features broadcast storm protection, traffic balancing, conflict isolation, error detection, and automatic reset after failure, making it suitable for high-bandwidth data applications such as video transmission;

● It supports the transmission of extra-long VLAN packets and can be used with switches that support the IEEE 802.1Q protocol, supporting packets up to 10K bytes;

● It provides 2 RS232/485/422 interfaces, with selectable interface types and three data interface options; RS232 supports 3-wire RS232. (TXD, RXD, GND)

● The RS232/485/422 channel can transmit asynchronous serial data with an adaptive baud rate from 0 to 115200 bps;

● Each channel has indicator lights for open and closed switch states; automatic detection of input switch states, the output switch state matches the input state;

● The switch state remains stable when the device is powered on or when the fiber optic cable is not connected, preventing erratic behavior;

● The switch input interface has a built-in filter to eliminate interference pulses, ensuring a stable output switch signal;

● The device uses an Ethernet switch chip + FPGA solution, with remote OAM management frame functionality, and can interconnect with corresponding 4U rack-mounted devices with SNMP network management; the device can be managed via SNMP software;

● Network management allows real-time viewing and management of the local and remote Ethernet interface status and settings; the device has a power-off detection function, which can detect whether the remote device is powered off or the fiber optic cable is disconnected when the optical signal is lost;

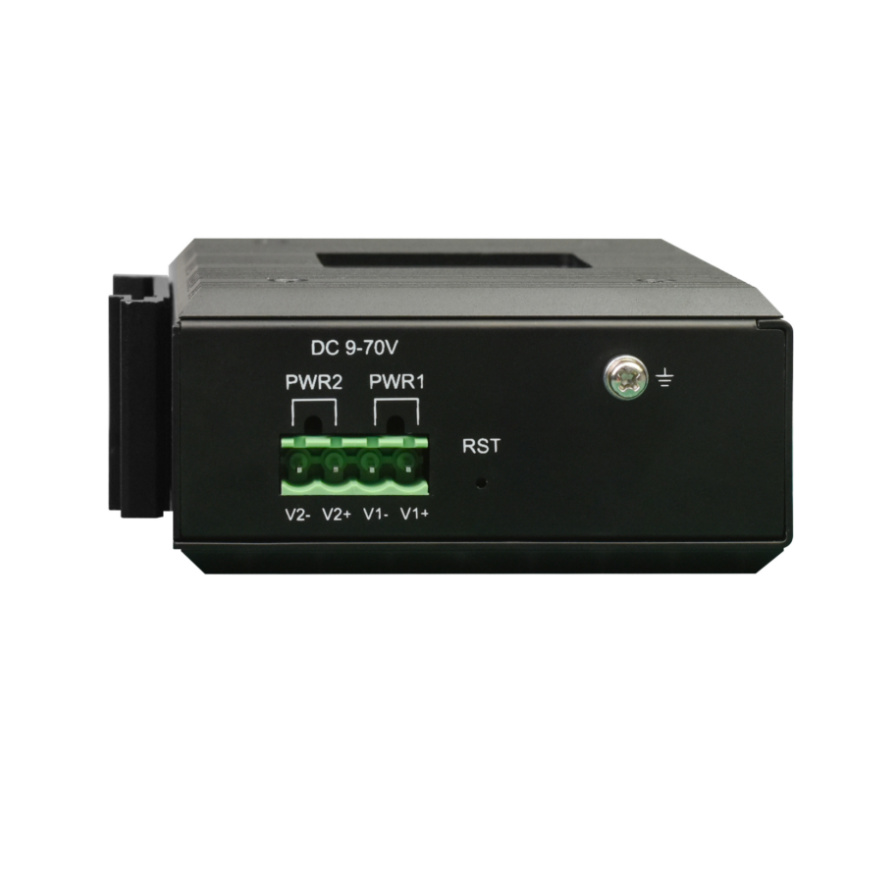

● Dual DC power supply (5.08mm terminal block):

 Supports wide-range power supply of DC 9-70V or AC 7-50V, with automatic polarity detection, eliminating the need to distinguish between positive and negative terminals during installation;

Supports internal isolation and redundant dual power input; reverse connection protection;

● AC power supply (three-pin AC socket):

 Supports AC 85-265V or DC 110-300V wide-range input, meeting industrial level 4 electromagnetic compatibility requirements;

● Supports internal isolation and redundant dual power input; power supply supports overload protection and reverse connection protection;

● Meets industrial level 4 electromagnetic compatibility requirements;

● Fanless high-efficiency heat dissipation, reducing repair time;

● Anodized aluminum alloy casing, IP40 protection rating, able to withstand harsh environments;

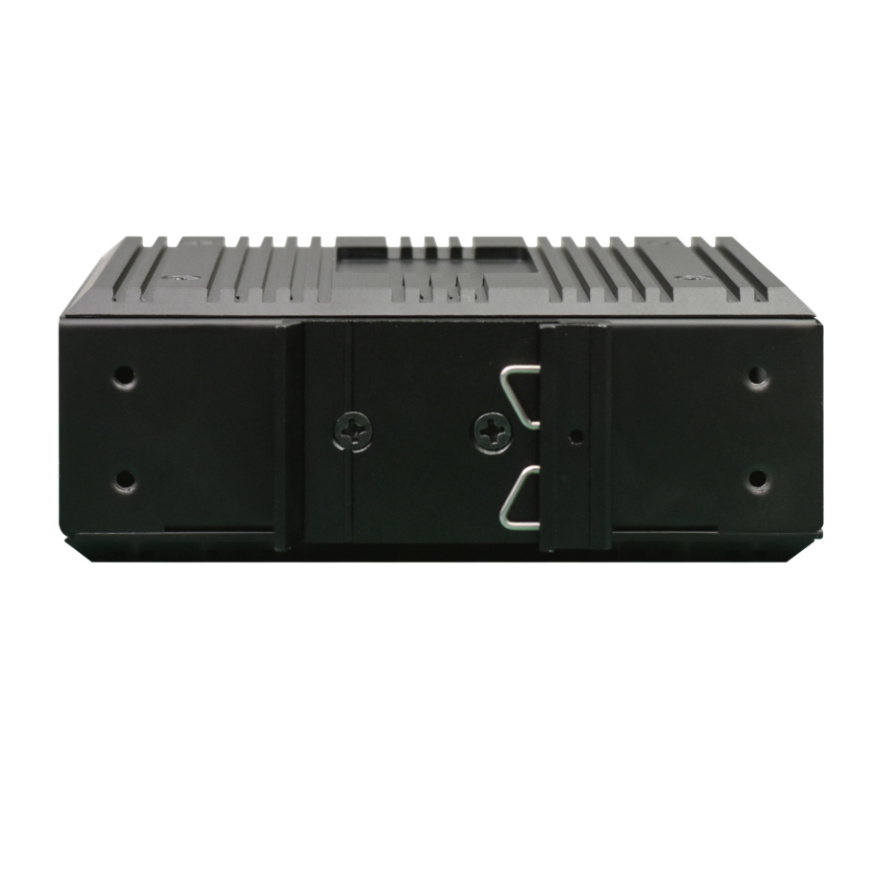

● DIN rail or wall mounting; wide temperature range: operating temperature -40℃~ +85℃;

● All models have passed 100% burn-in testing;
