● The device incorporates an ARM Cortex-M4 processor with a frequency of 192MHz.
● It functions as a terminal utilizing LoRa spread spectrum technology for wireless data transmission, providing users with a fully transparent data transmission mode. It supports various network topologies, including star network, and offers multiple communication modes such as point-to-point, broadcast, and multicast within the same network.
● It boasts a high receiver sensitivity of -139dBm, demonstrating exceptional anti-interference capability. The transmission power is adjustable.
● The device operates on the ISM 430MHz-490MHz license-free frequency band, eliminating the need for frequency usage fees. The default frequency is 490MHz to avoid congested frequency bands, particularly 433MHz.
● The node device supports 8 channels of DI and DO. The DI supports dry contact input mode, while the DO supports dry contact output and pulse output (wet contact) modes.

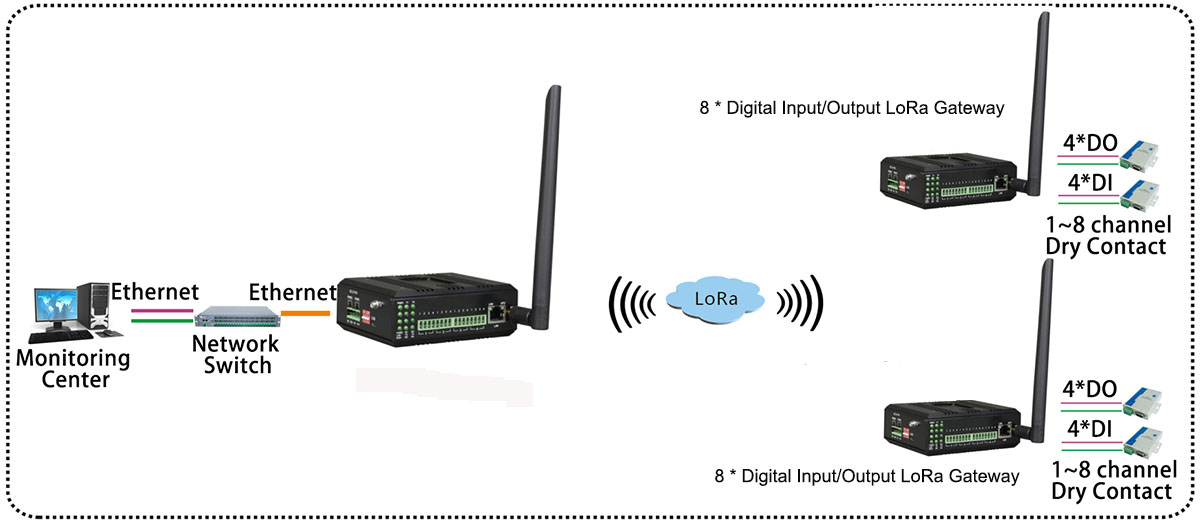

● The LoRa aggregation device can transmit switch signals to node devices for output control, and the node devices can also transmit input switch signals to the aggregation device, converted into Modbus TCP protocol.
● It features 1 10/100M Ethernet port with support for 10/100Base-T(X) adaptive Ethernet interface. It supports auto-negotiation (Auto-Nego full&half duplex) and automatic crossover detection (MDI/MDIX).
● It supports various operating modes, including Modbus TCP, TCP Server, TCP Client, UDP Server, and UDP Client.
● It offers multiple configuration options, including Windows configuration tool, serial port, and web-based configuration. SNMP network management is also supported.
● When powered by dual DC power (5.08 terminal block):
● It can be powered by a wide range of DC sources from 9V to 70V or AC sources from 7V to 55V. The power supply features automatic polarity detection, eliminating the need to distinguish between positive and negative poles during installation.
● It supports internal isolation and redundant dual power supply inputs, and it has reverse connection protection.
● When powered by AC power (3-pin AC socket):
● It supports AC input ranging from 85V to 265V AC or DC input ranging from 110V to 300V DC.
● The power supply offers overload protection and complies with industrial-grade electromagnetic compatibility requirements. It provides excellent lightning protection, surge protection, and high-voltage induction resistance.
● The device features efficient fanless cooling, reducing maintenance time.
● It is housed in an anodized aluminum alloy enclosure with an IP40 protection rating, capable of withstanding harsh environmental conditions.
● It can be mounted on a DIN rail or wall.
● It operates in wide temperature ranges from -40°C to +85°C.
● It has passed the 100% burn-in testing.
