This series of products adopts industrial rail design. The 16-port 100M electrical port switch is a new generation of multi-service access Ethernet switch with high integration, rich functions, simple and convenient features, representing the highest level in the industry. It contains 16 100M electrical ports, which is particularly suitable for occasions with large data flows such as video transmission. The switch adopts mature technology and open network standards, adapts to low and high temperatures, has strong resistance to electromagnetic interference, salt spray, shock and vibration, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast solutions for the industrial Internet of Things;
- Product Search Guide: space = AND, | = OR, ! = NOT

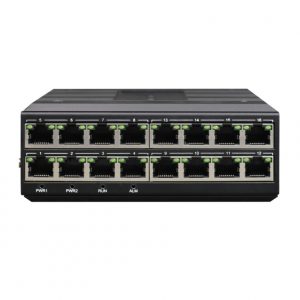

Din Rail 16 Channel Unmanaged FE Network Switch
Overview
Features
● All-aluminum alloy shell, good heat dissipation characteristics, gold oxide oxidation process, IP40 protection level;
● Aluminum alloy din rail design, designed for harsh industrial environment;
● 16*100M Ethernet electrical ports, supports the transmission of VLAN ultra-long data packets, and can be used with switch products that support IEEE802.1Q protocol;
● The electrical interface (RJ45 interface) supports 10/100M adaptive, full/half-duplex mode, MDI/MDI-X automatic detection;
● It has broadcast storm protection, balanced traffic, isolated conflict, error detection and deadlock self-reset functions, suitable for large-volume data applications such as video transmission;
● The power supply supports super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.; fanless and efficient heat dissipation, reducing repair time;
● support POE (POE+) equipment;
● Ethernet interface with lightning protection, lightning protection reaches GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard;
● Support wide range AC and DC input (9V-60V), support internal isolation, redundant dual power input, power supply supports overload protection and anti-reverse connection protection;
● Meet the requirements of industrial level 4 electromagnetic compatibility;
● Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., fanless and efficient heat dissipation, reducing repair time;
● IP40 shell protection level, can withstand the test of harsh environment, rail or wall mounting;
● Wide temperature type: working temperature -40℃~ +85℃;
Parameters
| Model |
FCM-G16 |
|
Maximum Frame Length |
10K |
|
Ports |
16*10/100M RJ45 electrical ports |
|
Network Media |
10Base-T: UTP of Category 3 or above; (support the maximum transmission distance of 200m) |
|
|
100base TX: type 5 UTP; (supporting maximum transmission distance of 100m) |
|
Vlan Address Table |
4K |
|
Mac Address Table |
8K |
|
Cache |
4Mbits |
|
Backplane Bandwidth |
14.8Gbit |
|
Filtering and Forwarding rate |
10Mbps：14880pps |
|
|
100Mbps：148800pps |
|
Usage Environment |
Storage temperature: – 40 ℃ – 85 ℃; storage humidity 0% ～ 90%, no condensation |
|
|
Working temperature: – 40 ℃～ 85 ℃; working humidity 0% ～ 90% |
|
MTBF |
＞100,000 hours |
|
Power |
Redundant dual power input DC9-60V Overload protection: supported; Reverse connection protection: supported; Redundancy protection: supported Access terminal: 4-core 5.08mm pitch plug-in terminal |
|
Power Consumption |
MAX:12W |
|
Dimension |
133mmx 120mmx 50.0mm |
|
Weight |
1.2kg/pcs |
Related Products
Documentation and project verification — FCM-G16
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
