Framed E1 Optical Ethernet Converter

View : 537
Type : E1 to Fiber Ethernet
Description :

This interface converter is based on FPGA, providing one framed E1 interface and one Ethernet interface to achieve 10/100Base-FX  Ethernet data transmission on the E1 channel.

Overview

    This interface converter is based on FPGA, providing one framed E1 interface and one Ethernet interface to achieve 10/100Base-FX  Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Product Photo

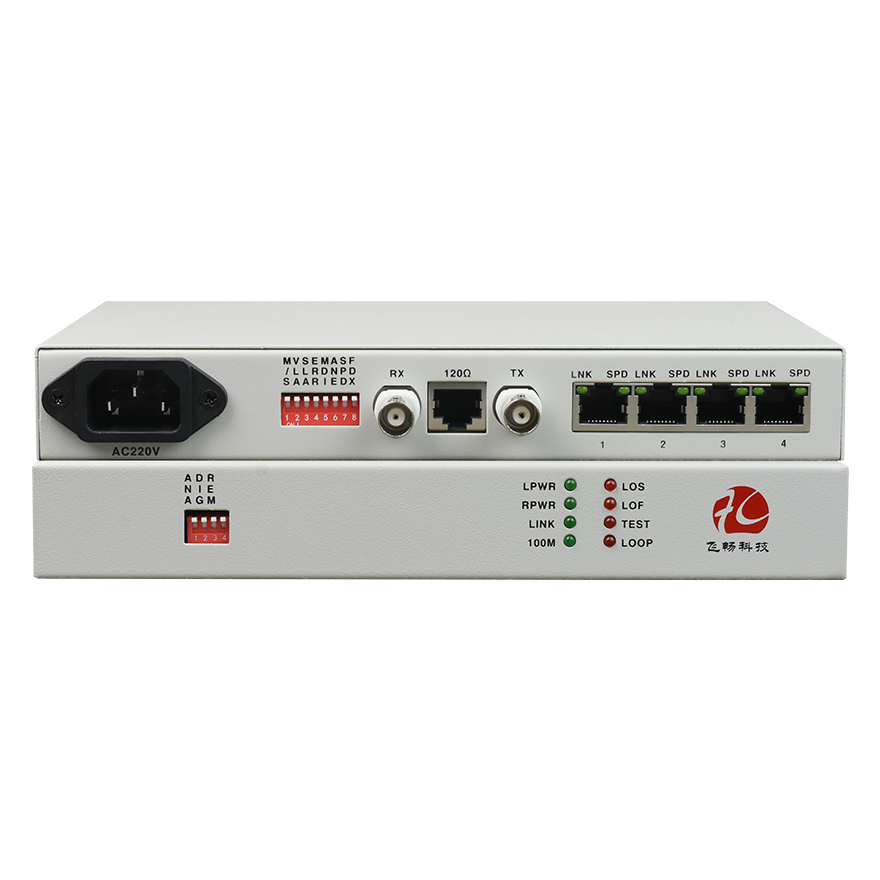

Framed E1 to Optical-Ethernet Converter Framed E1 to Optical-Ethernet Converter

Features

Based on self-copyright IC
Can realize monitor and control of remote equipment, OAM management data did not  take up user’s  timeslot and save E1 bandwidth
E1 supports any timeslot set, the rate is 64K-2048K
The local device can force the remote device rate to follow it
Have the function of E1 interface loopback check, to avoid the converter crashing because of interface loop  return;
Have an indicator light when the device is power-off or the E1 line is broken or loses signal;
Can set the E1 line not to send the LINK signal to the Ethernet interface while the E1 line is broken;
The Ethernet interface supports jumbo frames (2036 Bytes);
Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
Ethernet interface supports 100M, full duplex, support VLAN
Have the Ethernet monitor self-reset function, the equipment will not dead
The local device can force the remote device rate to follow it ( valid when framed)
Provide 2 clock types: E1 master clock and E1 line clock;
Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote Ethernet interface Loop Back(REM)
Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
Support SNMP Network Management;
Can realize monitor of remote equipment temperature and voltage from local equipment;
Can form the structure: Ethernet E1 Bridge(A)---Optical Ethernet Modem(B)---Ethernet Optical Fiber  Transceiver (C), can manage (B) and (C) at (A

Parameters

E1 interface
Equipment interface: the equipment interface meets the recommendation of G.703
Rate: 2048kb / s ± 50ppm
Code type: HDB3
Impedance: unbalanced 75 / balanced 120
Unbalanced coaxial interface adapter for 75-2 / 3 coaxial cable
Jitter characteristics: meet the recommendations of g.742 and g.823
Allowable attenuation of input port: 0 ~ 6dbm

10/100M Ethernet
Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)
adaptive
MAC address table: can learn 4096 MAC
addresses
Physical interface: RJ45 supports auto mdix

Electrical and mechanical characteristics
System power supply: ac180v ~ 260V; DC – 48V; DC + 24V
Power consumption: ≤ 5W
Appearance structure: (length × width × height) 216 * 138 * 41mm desktop type



Environmental indicators
Working temperature: – 10 ℃ – + 60 ℃
Storage temperature: – 40 ℃ – + 85 ℃
Working humidity: 0% – 95% (no condensation)
MTBF: > 100000 hours

Specifications

Product Function Description

1channel framed E1 – FE converter,With E1 loopback detection function

Business port description

One 1 * 9 optical Ethernet ports, One E1 Interface

Power Supply

AC220V / DC-48V / DC+24V

Product Size

216*138*41mm desktop type

Weight

1.3Kg /PCS
