SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI and 24G-SDI: Understanding Difference

Time : Jan. 09, 2024    View : 114

Introduction

The world of video production and broadcasting has seen significant technological advancements over the years, with various standards emerging to cater to the increasing demand for high-quality video transmission. Among these, the Serial Digital Interface (SDI) has been a pivotal standard, evolving from its basic form to more advanced versions like HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, and 24G-SDI. In this article, we’ll explore the differences between these SDI standards, focusing on their technical specifications, use cases, and how they have adapted to the needs of modern broadcasting and video production.



Understanding SDI

Serial Digital Interface (SDI) is a standard for digital video transmission over coaxial or fiber optic cables. Initially developed for professional television and video production, SDI has become the backbone of many studio and broadcast operations. The primary advantage of SDI is its ability to transmit high-quality, uncompressed digital video signals with low latency and high reliability.



Historical Background of SDI

The development of SDI was a response to the limitations of analog video transmission in the early television era. Analog methods suffered from signal degradation over distance, prompting a shift towards digital technologies in the 1980s. The Society of Motion Picture and Television Engineers (SMPTE) introduced the first SDI standard, SMPTE 259M, in the late 1980s, marking a significant transition from analog to digital video transmission. This standard allowed for uncompressed, unencrypted digital video signals over coaxial cable, a common infrastructure in broadcast environments. The introduction of SDI dramatically improved video quality and reliability, setting the stage for subsequent advancements in digital video technology and higher resolution formats.

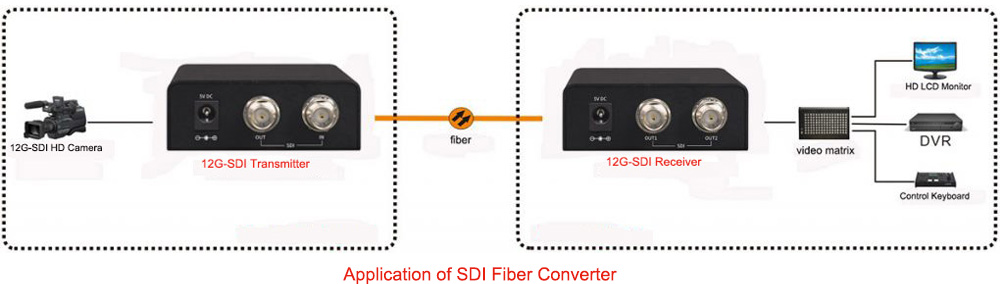

application of sdi fiber converter

SDI (Standard Definition SDI)

SDI, also known as Standard Definition SDI, was the first iteration of this technology. It operates at a bit rate of 270 Mbps, which is suitable for standard definition video formats up to 480i and 576i. This format laid the groundwork for digital video transmission in professional settings, replacing older analog methods.



HD-SDI (High Definition SDI)

HD-SDI, an advancement of the original SDI standard, supports high definition video formats. It operates at a bit rate of 1.485 Gbps or 1.5 Gbps, enabling it to carry 720p and 1080i video formats. HD-SDI became a game-changer in the broadcast industry, allowing for the transmission of higher resolution video without the need for compression.



3G-SDI

3G-SDI represents a further enhancement in SDI technology, with a bit rate of 2.97 Gbps. This standard can handle 1080p video formats, providing even higher resolution and image quality. 3G-SDI is widely used in modern television production and broadcasting, as it supports the higher frame rates and resolutions demanded by today’s content.



6G-SDI

6G-SDI, with a bit rate of 5.94 Gbps, was developed to cater to the emerging 4K video market. It can transmit 4K video at up to 30 frames per second, making it suitable for early 4K productions. While not as widely adopted as 3G-SDI, 6G-SDI marked an important step towards ultra-high-definition video transmission.



12G-SDI

12G-SDI, operating at a bit rate of 11.88 Gbps, is capable of handling 4K video at up to 60 frames per second. This standard is significant for professional 4K video production, offering high frame rates and deep color depths without requiring multiple cables or complex setups.



24G-SDI

The latest in the series, 24G-SDI, operates at a whopping 23.76 Gbps. This standard is designed for 8K video formats, providing the bandwidth necessary to handle the immense data requirements of 8K resolution at high frame rates. 24G-SDI is at the cutting edge of video transmission technology, offering unparalleled image quality and resolution.

Standard Bit Rate (Gbps) Supported Resolutions Standard Introduction Year
SDI 0.27 Up to 480i, 576i Late 1980s
HD-SDI 1.485 720p, 1080i Early 2000s
3G-SDI 2.97 1080p 2006
6G-SDI 5.94 4K @ 30 fps 2015
12G-SDI 11.88 4K @ 60 fps 2015
24G-SDI 23.76 8K 2020

comparison table of various SDI

Comparison and Applications

Each SDI standard is designed with specific applications in mind, aligning with different requirements in terms of video quality, resolution, and production environments. Here’s a more detailed look at their respective applications:

SDI (Standard Definition SDI)

  ● Broadcasting: Used in standard definition TV broadcasting.

  ● Live Events: Employed for live event productions where standard definition is adequate.

  ● Surveillance Systems: Common in older surveillance systems that do not require high resolution.



HD-SDI (High Definition SDI)

  High-Definition Broadcasting: Ideal for HD television broadcasts.

  Live Sports Production: Used extensively in live sports broadcasting where high-definition clarity is required.

  Film Production: Employed in film production for HD video monitoring and dailies.



3G-SDI

Digital Cinema Production: Suitable for digital cinema productions requiring 1080p resolution.

High Frame Rate Broadcasts: Utilized in broadcasting high frame rate content such as live sports and event coverage.

Professional Video Monitoring: Common in professional video monitoring setups in studios.



6G-SDI

  Early 4K Productions: Used in early 4K video productions, particularly those limited to 30 fps.

  Corporate Presentations: Ideal for high-quality corporate presentations and conferences in 4K.

  Digital Signage: Employed in digital signage requiring 4K resolution at a lower frame rate.



12G-SDI

  Advanced 4K Production: Suitable for advanced 4K productions requiring up to 60 fps, such as high-end documentaries and feature films.

  Live 4K Broadcasting: Used in live broadcasting of events in 4K, such as concerts and sports.

  Medical Imaging: Utilized in high-end medical imaging equipment for detailed visual data.



24G-SDI

  ● 8K Production: Ideal for 8K video production, offering the highest resolution and detail.

  ● High-End Broadcasting: Used in broadcasting ultra-high-definition content, particularly in future-proofing broadcasting setups.

  ● Research and Development: Employed in R&D environments where cutting-edge video technology is developed or tested.





Conclusion

The evolution of SDI standards from SDI to 24G-SDI reflects the ever-growing demand for higher video quality in the broadcasting and production industries. Each standard serves a specific purpose and caters to different resolutions and frame rates, aligning with the progression in video technology. As video production continues to evolve, we can expect further advancements in these standards, pushing the boundaries of what’s possible in digital video transmission.
