16E1+3FE+1FX PDH Multiplexer

View : 179
Type : Optic 1+1 PDH Multiplexer
Description :

The device provides 1~16 E1 interface; 1~3 10/100M Fast Ethernet interface (Ethernet interface to exchange, wire speed 100M, support VLAN division (logical isolation)); 1*100base-FX optical Ethernet interface; 1 Console.

Overview

The series equipment is in PDH optical fiber transmission, the company developed, based on the special large-scale integrated circuit, point to point optical transmission equipment research and development. The device provides 1 ~ 16 E1 interface; 1 ~ 3 10/100M Fast Ethernet interface (Ethernet interface to exchange, wire speed 100M, support VLAN division (logical isolation)); 1*100base-FX optical Ethernet interface; 1 Console; 1 extended service interface can be used as E1 signal, RS232/RS485/RS422 data; 1 digital business telephone; the application is flexible, has the alarm function, the operation is stable and reliable, low power consumption, high integration degree.

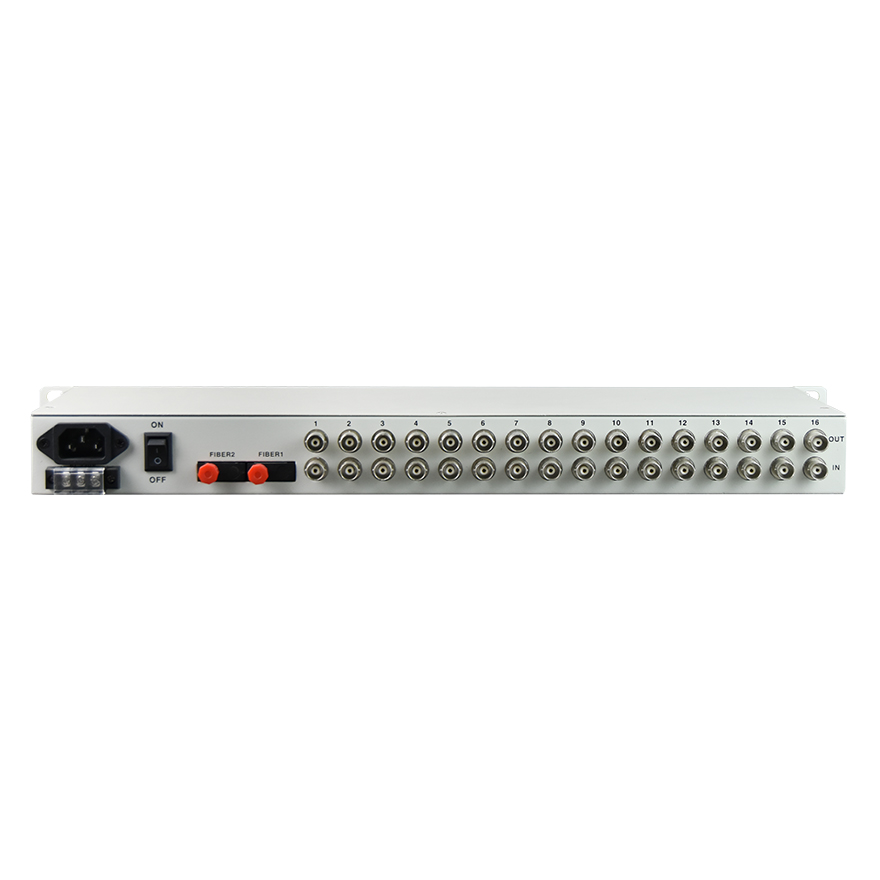

16E1 + 3FE + FX PDH Multiplexer 16E1 + 3FE + FX PDH Multiplexer

Features

● Based on self-copyright IC

● Modular wide dynamic optical detector

● Provide Console manage interface (RS232)

● Provide two fiber interface 1+1 protect(APS)function

● 3*FE Ethernet interface rate is 10M/100M, half/full duplex Auto-Nego

● Ethernet package size support 1916 byte and 4 Ethernet port could be set separately, and ethernet bandwidth can be set based on multiple of 32K

● E1 interface complies with G.703, adopts digital clock recovery and smooth phase-lock technology

● Uses standard 2 wire telephone(non-telephone handles) set as engineering order-wire hotline(optional)

● When the optical loses signal, it can detect the remote device is powered off or the fiber is disconnected and indicates an alarm by LED

● The local device can view the remote device’s working condition

● Provide command the remote interface Loop Back, support local E1Loop Back function, support E1 LOS and AIS alarm, ease line maintenance

● The transmission distance is up to 2-120Km without interruption

● Support SNMP manager (SNMP agent inside)

● AC 220V, DC-48V, DC24V can be optional

● DC-48V/DC24V power supply polarity detection function, Polarity-Free

Parameters

● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

● E1 Interface

Interface Standard:      comply with protocol G.703;

Interface Rate:             n*64Kbps±50ppm;

Interface Code:            HDB3;

E1 Impedance:             75Ω (unbalance), 120Ω (balance);

Jitter tolerance:            In accord with protocol G.742 and G.823

Allowed Attenuation:   0~6dBm

● Ethernet interface(100/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

● Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Model

Model Number: FC2P-E16F3PF1

Functional Description

16E1+3*100BaseTX Ports+1*100BaseFX PDH multiplexer,19”inch 1U,optional (order wire phone,Console/SNMP,1+1 Fiber Back up )

Port Description

1+1 optical port, 16 E1 interfaces (75/120 ohms), 3* FE interfaces+1*100base-FX interface,1*RS232 Console interface,1*SNMP Ethernet interface, one engineering order-wire telephone interface

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

Dimension Product Size: 19 inch 1U   485X138X44mm(WXDXH)

Weight

3KG

Application

application of 16E1 + 3FE + FX PDH Multiplexer
