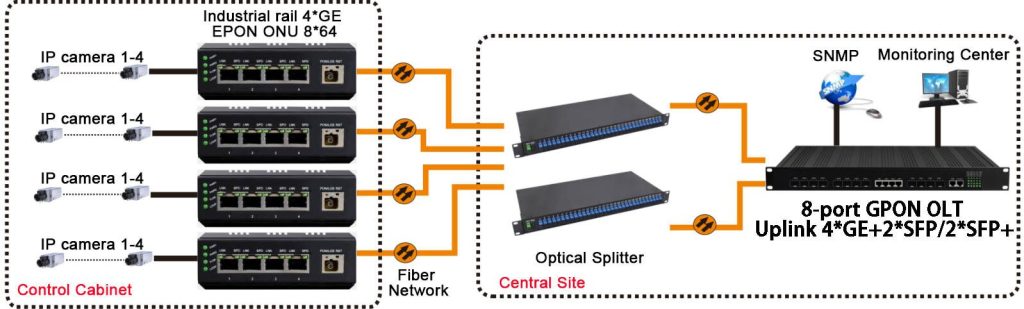

The industrial-grade FCX-9002 is our company’s latest industrial-grade high-GPON OLT series. The system has good stability and high reliability. It supports multiple management methods such as CLI, WEB, SNMP, etc. The product provides 8 downstream GPON interfaces, 4* GE upstream Ethernet interfaces, 2 SFP ports and 2 upstream SFP+ interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the entire network equipment, greatly reducing the labor cost and time cost in the network construction process. It is suitable for sparsely populated, remote, cost-sensitive areas, smart industrial parks, commercial buildings, FTTM, etc. Each GPON port supports a split ratio of up to 1:128, supports up to 1024 GPON users, and supports different types of ONUs under different networks. The 1U height is easy to install and maintain. It is widely used in access network construction such as front-end network coverage, private network construction, video surveillance, enterprise network campus, Internet of Things, and resident network fiber of various operators; the stability of the product and its wide compatibility are suitable for high-speed interconnection projects such as smart cities and smart transportation, and can work normally in harsh environments with high and low temperature differences.
|
Product model |
FCX-9002 |
|
Product Function Description |
Industrial-grade 4-port Gigabit Ethernet + 2-port 10G optical fiber + 2-port 1G optical fiber + 8-port GPON OLT |
|
Service port description |
4*Gigabit Ethernet electrical ports, 2*10 Gigabit Ethernet optical ports, 2*Gigabit Ethernet optical ports, 8*EPON optical ports |
|
power supply |
AC220V, DC-48V/DC+24V/ DC+12V, etc.; support AC+DC; AC+AC; DC+DC and other dual power backup modes |
|
Product Size |
(length×width×height) 485*300*45mm rack-mounted |
|
weight |
3.6Kg / PCS |
Uplink and downlink speed:
GPON: Downlink 2.5Gbps, Uplink 1.25Gbps transmission rate
Standard: ITU-T G.984 standard
Split Ratio: GPON 1:128
Physical interface: SFP slot
Type: C +/C ++/C +++
Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z
Rate: 10/100/1000M adaptive m full/half duplex adaptive
MAC address table: 4096 MAC addresses can be learned
Physical interface: RJ45 socket supports Auto-MDIX
Optical port: 2+2
Optical port connector: SFP/SFP+
Transmission rate: 1G/10Gbps
Fiber wavelength:850nm/1310nm/1490nm/1550nm
Fiber type: Single mode 9/125μm, multimode 50/125μm, 62.5/125μm
Transmission distance: 550m～80km
Operating temperature: -40 ℃ – +85 ℃
Storage temperature: -40 ℃ – +85 ℃
Humidity: 0% -95% (non-condensing)
MTBF: > 100,000 hours
● IP40 protection level, aluminum alloy anodized shell, can withstand the test of harsh environment;
● View device status and configuration information anytime and anywhere. Improve customer experience;
● Intelligent on-site alarm mechanism, real-time cloud remote alarm notification
● Visual management, PON system status is clear at a glance, traffic status is clear at a glance; zero configuration and ready to use
● Provide DBA/line/service/TR069/SIP voice template configuration, ready to use, fast deployment, saving room space.
● Complete network management functions.
● Support flexible DBA, up and down traffic speed control.
● Support IP TOS, IEEE802.1Q. Support port aggregation.
● Support port-based traffic control, traffic composition.
● Support ONU, automatic discovery and automatic registration.
● Support automatic reply test function.
● Support VLAN, VLAN conversion and QinQ, support up to 4094 VLANs
● Support port mirroring, RSTP and MSTP (recovery time <1s)
● Support link aggregation (recovery time <10ms), support storm control
● Support IGMP Snooping, support port isolation
● Support ACL access control based on data flow, support QoS based on port, VID, TOS and MAC address
● Support encrypted PON port transmission data,
● Support static routing, OSPF
● Meet the requirements of industrial level 4 electromagnetic compatibility;
● Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., fanless and efficient heat dissipation, reducing repair time;
● Wide temperature type: working temperature -40℃~ +85℃;
● Ethernet interface with three-level lightning protection, lightning protection reaches GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open circuit peak voltage 6KV standard;

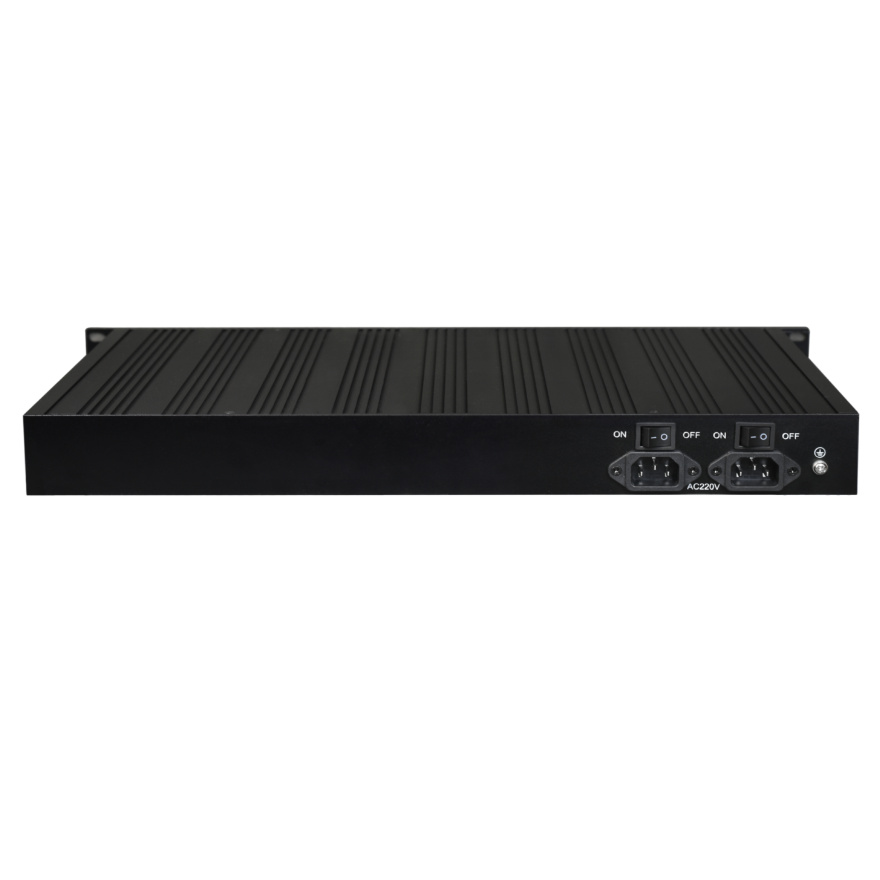

● Multiple power supply modes are optional: AC220V, DC-48V/DC+24V/ DC+12V, etc.; supports dual power backup modes such as AC+DC; AC+AC; DC+DC
