Industrial 4-Port GE EPON/GPON (XPON) ONU With POE

View : 1,080
Type : ONU
Description :

The device has 4 GE ports and supports a POE+ power supply. It features 1 fiber access port, a built-in industrial power supply, and an IP40 metal casing.

Overview

The device is one of our company’s latest industrial-grade GPON/EPON passive optical network communication terminal series. The device has 4 GE ports, supports POE+ power supply, has 1 fiber access port, built-in industrial power supply, and IP40 metal casing. With its stability and wide compatibility, the product is suitable for applications in smart cities, intelligent transportation, and other high-speed interconnection projects. It can operate normally in harsh environments with high-temperature differentials, meeting the demands of high-speed data transmission applications.

Features

The device features an IP40 protection level and is equipped with an anodized aluminum alloy casing, making it capable of withstanding harsh environmental conditions.

The XONU utilizes high-performance, low-power chips that support CTC V2.0 interconnection and intercommunication standards. With the assistance of NGBN ViewNMS, it can provide users with a wide range of services, fully meeting the requirements of telecom-grade FTTB devices.

In router mode, it supports PPPOE/DHCP/static IP.

It supports port-based rate limitation and bandwidth control.

It complies with the ITU-T G.984 standard, allowing for a transmission distance of up to 20km and remote management by the OLT.

It supports data encryption, group broadcasting, and port VLAN separation, as well as dynamic bandwidth allocation (DBA).

It supports both IPv4 and IPv6, and provides features such as ONU auto-discovery, link detection, and software upgrade.

VLAN partitioning and user separation are supported to avoid broadcast storms, and power outage alarms facilitate the detection of link issues.

It has built-in broadcast storm protection and a dedicated system fault prevention design, ensuring system stability.

SNMP-based EMS network management software allows for online upgrades, making maintenance convenient.

The ethernet interface (RJ45) supports 10/100/1000M adaptive, full/half duplex, and MDI/MDI-X auto-detection.

It can support POE (POE+) with a per-port output power of 802.3af/at (15.5w/25.5w) (optional).

The power supply features excellent lightning protection, with resistance against induced high voltage and surges. The fanless design provides efficient heat dissipation and reduces repair time.

When dual DC power supply (5.08mm terminal block):

  It can be powered by a wide range of DC9-70V or AC7-50V power sources, featuring automatic polarity detection which eliminates the need to distinguish positive and negative poles during installation.

  It supports internal isolation and redundant dual power inputs, providing reverse connection protection.

It has powerful lightning protection capabilities, with resistance against lightning strikes, induced high voltage, surges, and more.

The fanless design ensures efficient heat dissipation, reducing repair time.

It can be installed using DIN 35mm rail mounting or wall mounting.

Operating temperature from -40°C to +85°C.

The device has passed 100% burn-in testing.

5-year warranty.

Parameters

● Fiber PON Port

Uplink and Downlink rate:

GPON: uplink 1.25Gbps, downlink 2.5Gbps

EPON: uplink and downlink symmetrical 1.25Gbps transmission rate

Standards: ITU-T G.984/G.988

Split Ratio: 1:128

Maximum Transmission Distance: 20 kilometers

Wavelength: Tx 1310nm, Rx 1490nm

Transmit Optical Power: 0.5 to +5dBm

Receiver Sensitivity: -27dBm

Saturation Received Optical Power: -8dBm

Interface Type: SC-UPC, 9/125μm single-mode fiber



● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Speed: 10/100/1000M adaptive, full/half duplex adaptive

MAC Address Table: Can learn up to 4096 MAC addresses

Physical Interface: RJ45, supports Auto-MDIX



● Ethernet POE Features

PoE Standard: IEEE 802.3af/at

PoE Type: End-span (also supports mid-span)

PoE Port Features: Port output power of 25.5W

PoE Power Transmission Wiring: End-span method using 1/2+, 3/6- wire pairs (mid-span method using 4/5+, 7/8- wire pairs)



● Environmental Indicators

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +85°C

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model FCX-8001
Function Description Industrial DIN-Rail mounted 4-port Gigabit Ethernet EPON/GPON (XPON) ONU
Port Description 4 Gigabit Ethernet ports, 1 XPON optical port
Power Supply Redundant dual power input DC9-70V or AC7-50V, power consumption <5W

Overload Protection: Supported; Reverse Connection Protection: Supported; Redundancy Protection: Supported

Access Terminal: 4-core 5.08mm pitch pluggable terminal

Product Dimensions

Casing: IP40 protection level, aluminum alloy material

Size: 110mm (length) x 87mm (width) x 40mm (height)

Installation Methods: Rail-mounted, wall-mounted

Weight 0.51kg/pcs

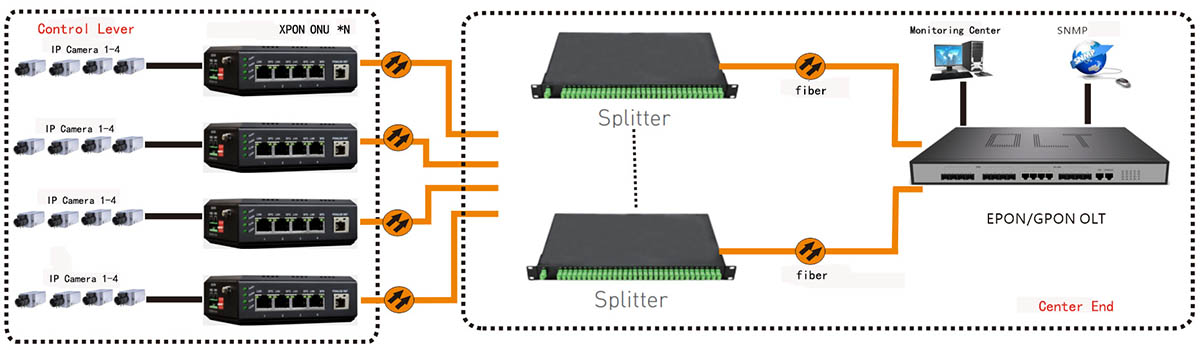

Application

application of xpon onu
