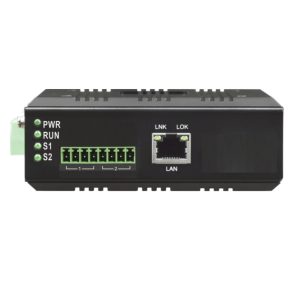

Industrial Aluminum Alloy Din Rail 1-2 Channel CAN Bus Server (mini)

This industrial rail-mounted CAN bus server, with an IP40 protection rating, instantly connects CAN bus devices to the internet, enabling centralized management of distributed serial devices and hosts over the network. It supports one or two CAN bus channels and one 100M Ethernet channel, and can be mounted on a 35mm rail or wall, meeting the needs of diverse applications.

The CAN bus server supports multiple network protocols, including TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP. It offers comprehensive management features, including access control, quick configuration, and online upgrades. Each CAN channel supports four TCP or UDP sessions, supporting various operating modes, including TCP Server, TCP Client, UDP Server, and UDP Client. It also supports web access. The included Windows-based management and configuration tool guides users step-by-step through device management and configuration, enabling instant networking of serial devices through simple setup. The user-friendly network management system offers simple and easy operation, providing a superior user experience.

●  CanBus Interface

Standards

Protocol: Complies with international CAN 1.0 and CAN 2.0 standards

Baud rate: 0-1000Kbps

Physical interface: Industrial 3.81mm terminal block

CAN definition: CANH, CANL, GND

● Ethernet Interface(10/100M)

Protocol: Compliant with IEEE 802.3ab and IEEE 802.3z

Speed: 10/100 auto-negotiating, full/half duplex

MAC address table: Capable of learning 4096 MAC addresses

Physical interface: RJ45 socket, supports Auto-MDIX

● Working Environment

Working Temperature: -40℃ — +85℃

Storage Temperature: -40℃ – +85℃

Working Humidity: 0% — 95% (no condensation)

MTBF: > 100,000 hours

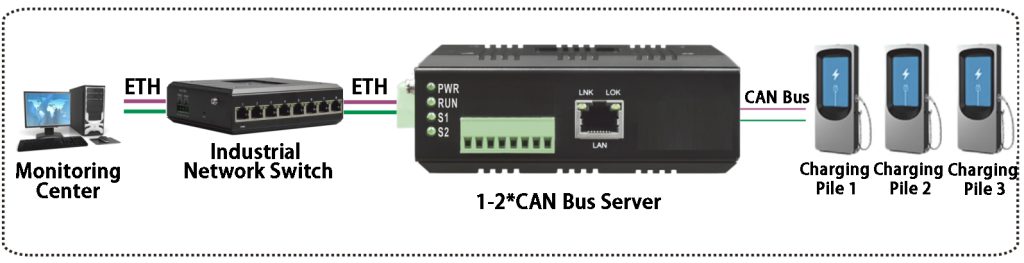

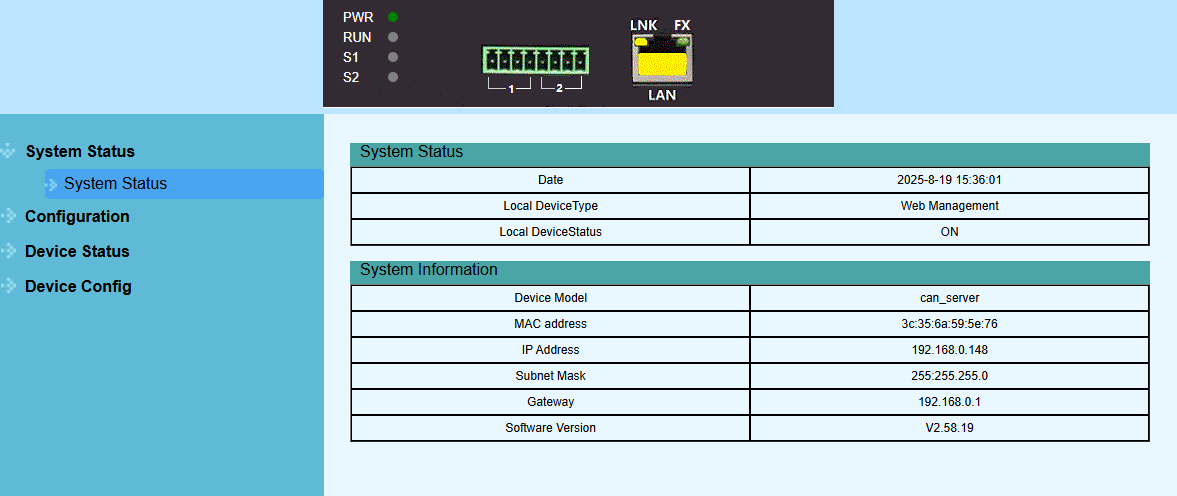

Web Management Page:

● Adopt ARM Cortex-M4, main frequency 240MHz processor;

● Supports one 100M Ethernet channel; Ethernet supports 10/100Base-T(X) auto-sensing Ethernet interface.

● Supports Auto-Nego Full&half duplex and automatic crossover detection (MDI/MDIX).

● Supports various configuration methods, including web and Windows tool configuration, and SNMP network management.

● Also provides one or two CAN bus channels, supporting 0-1Mbps line speed, non-blocking communication, automatic baud rate scanning and matching, and custom baud rates.

● Supports CAN 2.0A and CAN 2.0B frame formats, compliant with ISO/DIS 11898.

● Supports three CAN transmission modes: transparent conversion, transparent transmission with information, and relay.

● Maximum transmit data rate: 8000 frames/second; maximum receive data rate: 14000 frames/second. CAN-side message timestamp accuracy reaches 1µs.

● Each CAN channel features 6kV lightning protection and 3kV optical isolation. Each CAN channel has an independent shielded ground connection, powered by a 3kV DC-DC power supply, and communication signals isolated by high-speed optocouplers.

● Supports Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other operating modes.

● Supports CAN status and CAN parameter monitoring for clear communication status.

● Supports communication across gateways and routers. Flexible CAN data framing settings meet various packet segmentation requirements.

● Supports standard TCP/IP. Socket application access, TCP supports multiple connections, allowing up to four users to simultaneously monitor or manage CAN devices.

● Supports local and remote system firmware upgrades.

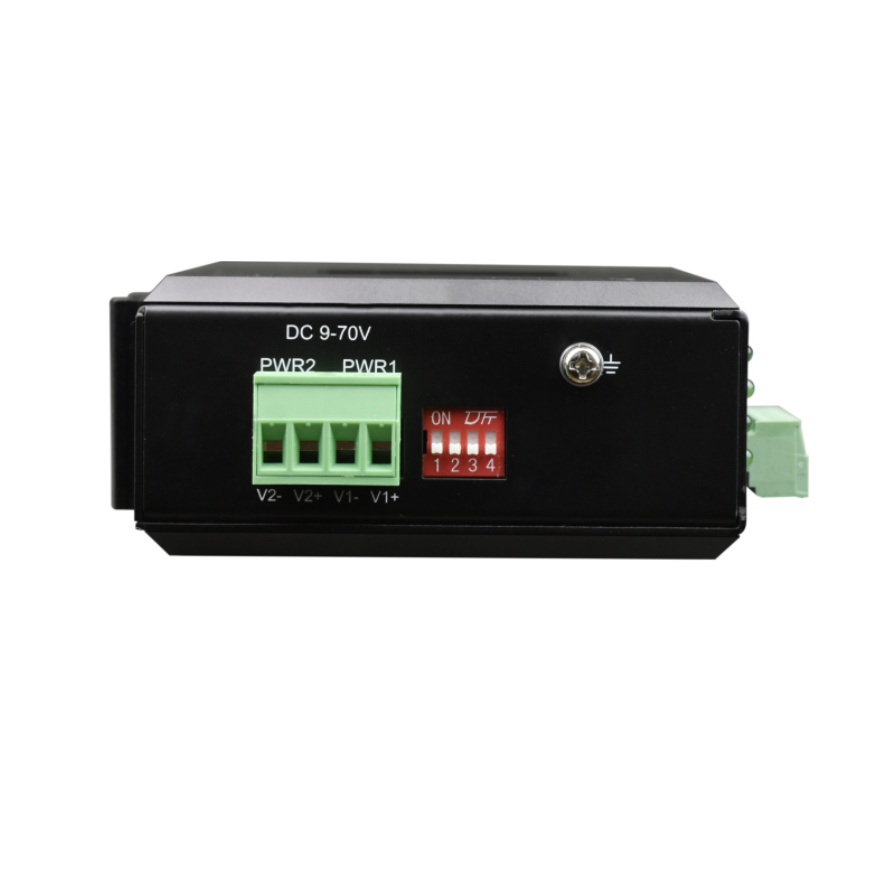

● Dual DC power supply (5.08 terminal block):

● Accepts a wide range of DC9-70V power, with automatic polarity detection, eliminating the need to distinguish between positive and negative poles during installation.

● Supports internal isolation, redundant dual power inputs, and reverse polarity protection.

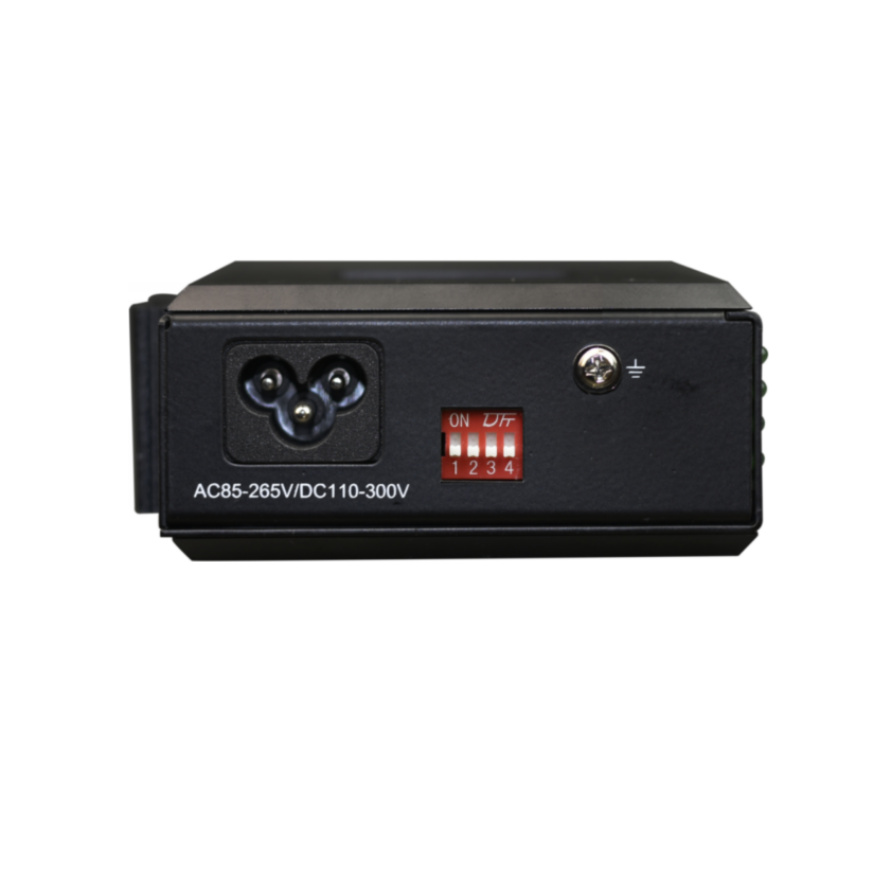

● AC power supply (3-position plum blossom AC jack):

● Supports a wide input range of AC~85-265V or DC110-300V.

● Power supply includes overload protection and meets Industrial Level 4 electromagnetic compatibility requirements.Strong lightning protection: protects against lightning strikes, inductive high voltage, and surges.

● Fanless design for efficient heat dissipation, reducing repair time.

● Anodized aluminum alloy housing with IP40 protection rating withstands harsh environments.

● Can be mounted on a DIN rail or wall.

● Wide operating temperature: -40°C to +85°C.

● All models are 100% oven-tested.
