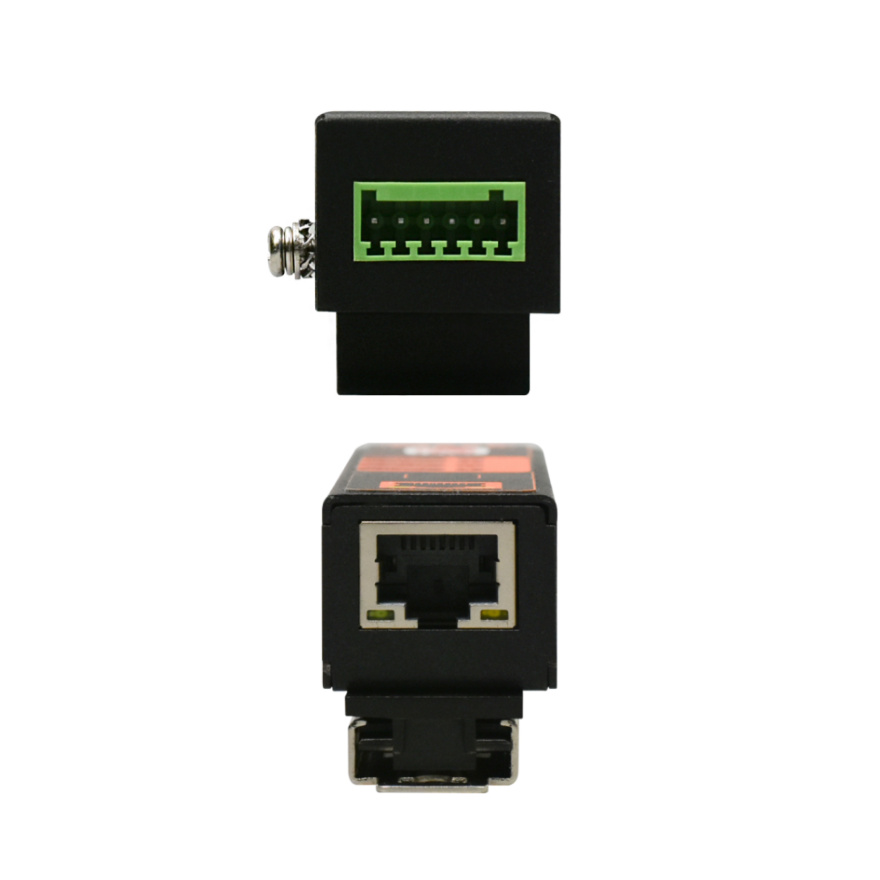

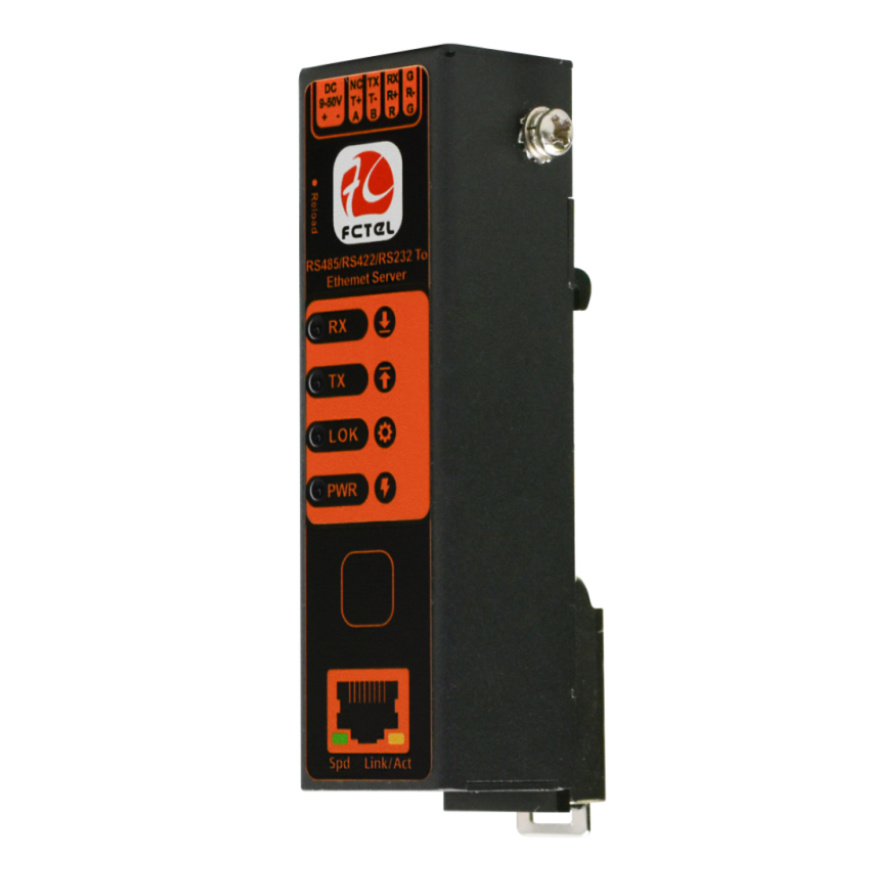

Industrial Din Rail Lipstick Type 1 Port RS485 RS422 RS232 All in One to Ethernet Server FCT-081219

This industrial rail-mounted serial server is a serial networking server that enables serial devices to immediately connect to a network, allowing for centralized management of distributed serial devices and hosts via the network. The product supports one port all in one selectable RS485/422/232 port and one 100Mbps Ethernet port, and can be installed using 35mm DIN rail or wall mounting, meeting the needs of different application environments. Its small size (24mm (L) x 80mm (W) x 20mm (H)) saves space for users.

The serial server supports various network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP; it has comprehensive management functions, supporting access control, quick configuration, and online upgrades; each serial port supports 4 TCP or UDP session connections, and supports multiple operating modes such as Modbus TCP, TCP Server, TCP Client, UDP Server, and UDP Client; it also supports web access. In addition, the provided Windows-based management and configuration tool guides users step-by-step through device management and configuration, enabling serial devices to connect to the network immediately with simple settings. It supports B/S architecture SNMP network management software for unified network management of multiple serial servers.

The hardware features a fanless, low-power, wide-temperature, and wide-voltage design, and has passed rigorous industry-standard testing, making it suitable for industrial environments with stringent EMC requirements. It can be widely used in PLC control and management, building automation, medical and healthcare automation systems, measuring instruments, and environmental power monitoring.

● Uses an ARM Cortex-M4 processor with a 240MHz clock speed;

● Supports 1-channel 100Mbps Ethernet; Ethernet supports 10/100Base-T(X) adaptive Ethernet interface; supports auto-negotiation (Auto-Nego Full & half duplex), and automatic crossover detection (MDI/MDIX);

● Provides 1-channel three-in-one RS485/422/232 serial port (serial port type can be set via the web interface), supporting 300bps-921600bps (RS232 maximum speed 256K) line speed non-blocking communication, and supports user-defined baud rates;

●  Supports multiple operating modes including Modbus TCP, TCP Server, TCP Client, UDP Server, and UDP Client;

●  Achieves transparent conversion from Modbus-RTU to Modbus-TCP, enabling reading serial device data via the network;

● Supports serial port status and parameter monitoring, providing a clear overview of communication status;

●  Supports communication across gateways and routers; supports virtual serial port driver access mode and automatic connection recovery function after network interruption;

●  Flexible serial data framing settings to meet various user packet requirements;

●  Supports standard TCP/IP SOCKET application access, TCP supports multiple connections, allowing up to 4 users to simultaneously monitor or manage serial devices;

● UDP mode supports single-machine or multi-machine communication, allowing multiple users to simultaneously monitor or manage serial devices;

●  Supports multiple configuration methods including Windows configuration tools, serial port, and WEB; supports SNMP network management;

●  Supports local and remote system firmware upgrades;

●  Supports B/S architecture SNMP network management software for unified network management of multiple serial servers. The RS485/232 interface features three levels of lightning protection, meeting the GB/T17626.5 (IEC61000-4-5) standard with a short-circuit current waveform of 10/700μs, an open-circuit peak output voltage of 6KV, and an internal resistance of 40 ohms;

● It supports a wide range of DC 9-50V AC and DC power input, and the power interface has 6kV lightning protection;

●  The power supply supports overload protection and reverse connection protection; it complies with industrial level 4 electromagnetic compatibility requirements;

●  Superb lightning protection function: protects against lightning strikes, withstands induced high voltage, and prevents surges;

●  Fanless high-efficiency heat dissipation reduces repair time; supports DIN rail or wall mounting;

●  Wide temperature range: operating temperature -40℃~ +85℃;

●  10/100M Ethernet interface

Protocol: Conforms to IEEE 802.3ab, IEEE 802.3z

Rate: 10/100 adaptive m full/half duplex adaptive

MAC address table: can learn 4096 MAC addresses

Physical interface: RJ45 seat, support Auto-MDIX

●  Serial Interface

Standard:

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD-

RS-485 4 wires: TxD+ TxD- RxD+ RxD-

RS-485 2 wires:

A(correspondingTX+)

B(correspondingTX-) GND

RS-232: RXD TXD GND

Physical interface:

4-core 2.54mm pitch screw-free terminal

● Working environment

Working temperature: -40°C – +85°C

Storage temperature: -40°C – +85°C

Working humidity:    0% – 95% (no condensation)

MTBF:               >100,000 hours

Application 1 single application:

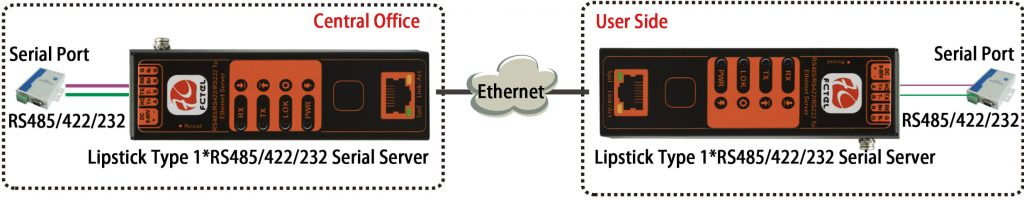

Application 2: Paired application
