Industrial 4G LTE VPN Cellular Router with SIM Slot FCT-081707

View : 258
Type :
Description :

Overview

This industrial 4G router adopts an industrial rail design and is fully compatible with 4G/3.5G/3G/2.5G networks and VPN links.

It can easily build a high-speed and stable wireless transmission network, and uses public LTE networks to provide users with wireless long-distance data transmission functions.

It adopts high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module, and uses an embedded real-time operating system as the software support platform. It also provides 2 channels of RS232/422/485, 4 channels of 100M LAN, 1 channel of 100M WAN and WiFi interface can connect serial devices, Ethernet devices and WiFi devices at the same time to achieve transparent data transmission and routing functions.

This industrial 4G router has a mature solution with stable system, which can ensure that the device is always online; the entire product adopts an aluminum alloy casing, which is anti-interference and anti-radiation, and the hardware adopts industrial-grade design; the system is equipped with watchdog protection and is loaded with system monitoring Protection; This product is widely used in finance, transportation, monitoring, electric power, mobile Internet of Things and telecommunications Internet of Things and other industries.

Features

All-aluminum alloy shell, good heat dissipation characteristics, metal oxygen anodizing process, IP40 protection level;

Supports Stateful Packet Inspection (SPI) to prevent denial of service (DDoS) attacks;

Support NAT, PAT, DMZ port mapping, virtual server;

The WAN end sends heartbeat detection packets for detection, and automatically connects when disconnected;

Intelligent anti-disconnection, supports online detection, online maintenance, automatic redialing when disconnected, ensuring that the device is always online

VPN disconnection redial interval definition, and dial-up times control; local network PHP browsing, and remote synchronization of local storage content

SMS controls routing online and offline, and short-term notification of routing status

Support VPN security tunnel function, including PPTP, L2TP

Complete and powerful router functions, supporting multiple Internet access methods: automatic allocation, designated IP, PPPoE, WiFi relay

Support iptables firewall, various network protocols

Support web software upgrade

Support dynamic DDNS: support peanut shell, 88IP and dyndns domain name service providers

Supports 4G backup network, seamlessly switches to 4G network when wired is disconnected, and can automatically detect wired recovery

The serial port supports 300bps-150000bps line-speed non-blocking communication; each channel provides three interface options: RS-232/RS-422/RS-485;

Supports Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes;

Complete the transparent conversion from Modbus-RTU to Modbus-TCP and realize reading serial device data through the network;

Supports SSL security protocol for serial port data encrypted transmission;

Supports MQTT multi-topic subscription and publishing functions; supports MQTT transparent transmission and Modbus to JSON data packet functions, and supports parsing server-delivered JSON and scheduled reporting functions respectively; supports multiple cloud platforms such as Huawei Cloud, Alibaba Cloud, and Mobile Cloud MQTT protocol docking;

The Ethernet interface is equipped with lightning protection, and the lightning protection reaches the GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs standard, and the open-circuit peak output voltage is 6KV standard;

The power supply supports super lightning protection functions: anti-lightning strike, anti-induced high voltage, anti-surge, etc.; efficient fan-less heat dissipation, reducing repair time;

When using dual DC power supply (5.08mm terminal block):

It can be powered by DC9-70V or AC7-50V wide range power supply. The power supply has automatic polarity detection function. There is no need to distinguish between positive and negative poles during installation;

Support internal isolation, redundant dual power input; anti-reverse connection protection

When powered by AC (three-position plum blossom AC socket):

Supports AC~85-265V AC, or DC110-300V DC wide range transmission and meets industrial level 4 electromagnetic compatibility requirements;

Super lightning protection function: anti-lightning strike, anti-induced high voltage, anti-surge, etc.;

Fanless and efficient heat dissipation, reducing repair time;

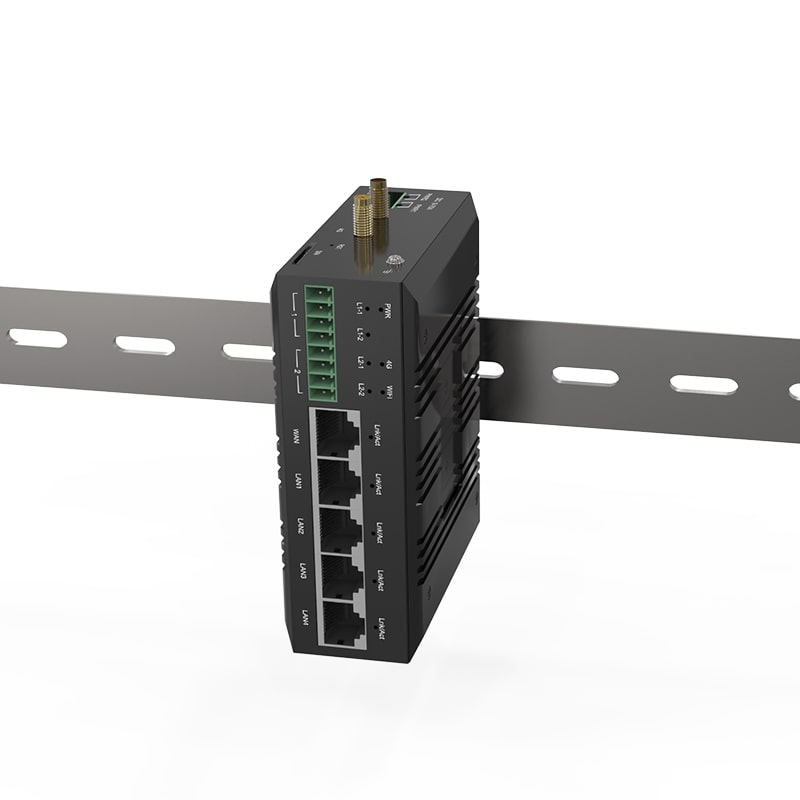

Provide DIN 35mm rail installation or wall-mounted installation;

Wide temperature type: working temperature -40℃~ +85℃;

All models have passed 100% baking machine test, warranty period: 5 years;

Parameters

●10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100 adaptive m full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 socket, supports Auto-MDIX



● Serial Interface

standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-422 RS-422 (ITU-T V.11)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

    Serial interface:

    RS-422: TxD+ TxD- RxD+ RxD- GND

    RS-485 4 wires: TxD+ TxD- RxD+ RxD- GND RS-485 2 wires: A (for TX+) B (for TX-) GND

    RS-232: RXD TXD GND



● 2.4G WiFi interface

Support EE802.11b/g/n.

Support wireless area code (country/region channel) selection

Wifi opening period control

SSID broadcast period control

Support transmit power adjustment

Single antenna (150Mbps rate) control

Guest network: Guest WFL can be set up to manage guests’ online behavior

Wireless bridging: can bridge to other WIFI (WDS bridging, etc.)



●4G interface

Network access: 3G/4G dial-up. Internet access, supports APN, VPDN.

Access authentication: supports CHAP/PAP/MS-CHAP/MS-CHAPV2/none

Network format: Support LTE/WCDMA (HSPA+/TD- CDMA/EVDO/EDGE/GPRS

LAN protocol: Support ARP Ethernet, STP

WAN protocol: supports static IP/DHCP/PPPoE/PPTP/L2TP



Environmental indicators

Operating temperature: -40 ℃ – +85 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF: > 100,000 hours

Specifications

Product Model

FCT-081707

Product Function Description

Industrial rail 4G router

Service Port Description

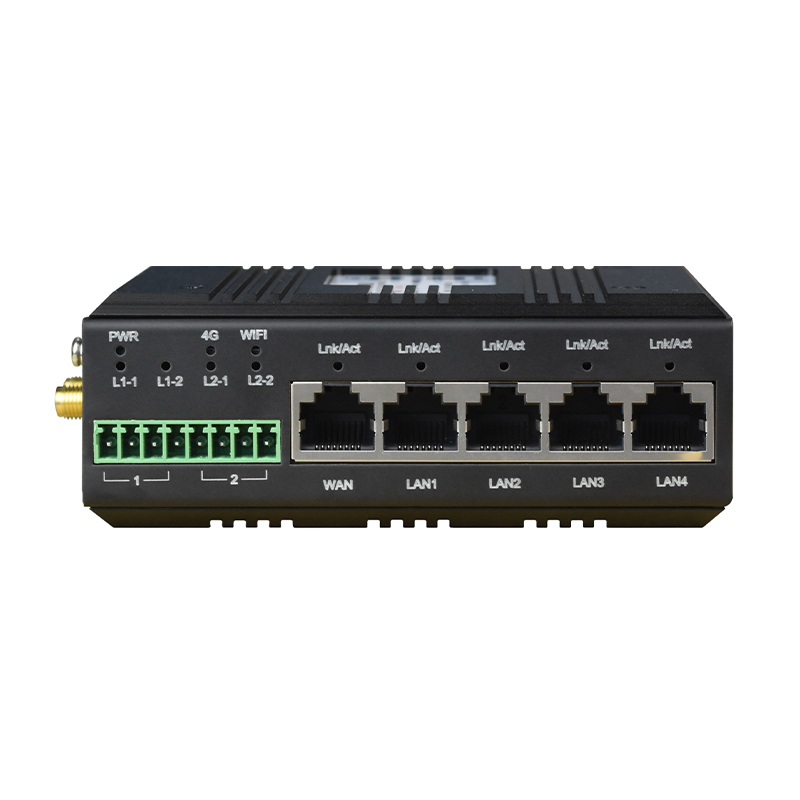

5*Ethernet ports, 1* 2.4G WIFI antenna interface, 1*4G antenna, 2*RS232/422/485 optional interfaces

Power Supply

DC power supply:

Redundant dual power supply input DC9-70V or AC7-50V, power consumption <10W

Overload protection: supported; reverse connection protection: supported; redundancy protection: supported

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V AC, or DC110-300V DC wide range input, power consumption <5W

Overload protection: support;

Access interface: three-position plum blossom AC socket

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 110mm (length) x 86mm (width) x 50.5mm (height)

Installation method: guide rail installation, wall-mounted installation

Weight

0.55Kg / PCS
