Water Pump Station · Remote Monitoring
Pump-station example: 1 RS-485 + 2 AI. The PLC handles local control; the gateway acquires data and provides remote communications. A 4G configuration is shown.
Photos show the 4G version; RedCap antennas follow the ordered configuration.
Bring instruments, controllers and on-site data onto a wired or cellular network.
Two serial / I/O terminal groups, one WAN and four LAN RJ45 ports. All Ethernet ports operate at 10/100 Mbps.
Dual DC power, ground and reset, cellular / Wi-Fi antenna connectors and two physical SIM slots. The 4G version is shown.

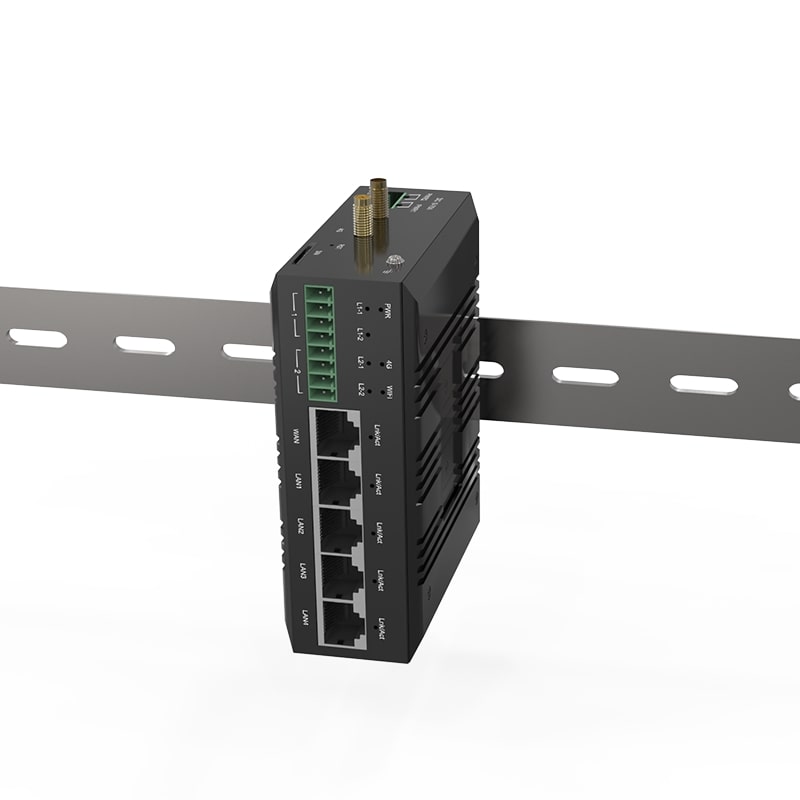

35 mm DIN-rail clip and four wall-mount holes; 110 × 86 × 40 mm aluminum-alloy enclosure.
Overall dimensions: 110 × 86 × 40 mm. Dimensions are in mm. Allow additional space for terminal access, antennas and cable bends.
The gateway uses dual DC 9–70 V inputs. DC 48–55 V is required when PoE is enabled. Optional five-port PoE PSE powers external equipment; it is not a PoE input for powering the gateway.
| Communication interfaces | |
|---|---|
| Processor | Industrial-grade 32-bit communication processor |
| LAN | 4 x RJ45, 10/100 Mbps, auto-negotiated full / half duplex |
| WAN | 1 x RJ45, 10/100 Mbps, auto-negotiated full / half duplex |
| Ethernet features | Auto-MDI/MDIX; 4,096-entry MAC address table |
| Serial / I/O | 2 x RS-232 / RS-422 / RS-485, selected when ordering. Each serial resource can be replaced by 2 DI / 2 DO / 2 AI / 2 AO of the same type, up to 4 I/O channels in total. |
| SIM / eSIM | 2 physical SIM slots; dual-SIM single standby; eSIM supported |
| Antenna interfaces | 4G: cellular + Wi-Fi. RedCap: dual cellular without Wi-Fi, or single cellular + Wi-Fi |
| Power connector | 4-position pluggable terminal, 5.08 mm pitch |
Serial rate: 300–150,000 bps. RS-232: RXD / TXD / GND; two-wire RS-485: A / B / GND. RS-422 and four-wire RS-485: TxD+ / TxD- / RxD+ / RxD- / GND. Interface types are selected when ordering.
| Mechanical and environmental specifications | |
|---|---|
| Dimensions | 110 × 86 × 40 mm |
| Enclosure & cooling | Aluminum-alloy enclosure; fanless cooling |
| Ingress protection | IP40 |
| Mounting | 35 mm DIN rail or wall mounting |
| Weight | 0.55 kg per unit |
| Operating temperature | 4G: -40 to +85 degC; see the RedCap temperature note |
| Storage temperature | -40 to +85 degC |
| Operating humidity | 0-95% RH, non-condensing |
| Wireless LAN | |
|---|---|
| Wireless LAN | 2.4 GHz, IEEE 802.11b/g/n, single antenna; theoretical wireless rate up to 150 Mbps |
Wireless rates are theoretical peaks; actual traffic depends on network, antennas and load. Ethernet ports operate at 10/100 Mbps.
| Serial Ports | I/O | Example Configuration |
|---|---|---|
| 2 channels | 0 channels | D2: 2 x RS-485 |
| 1 channel | 2 channels | D1K2: 1 x RS-485 + 2 DI |
| 0 channels | 4 channels | K2J2: 2 DI + 2 DO |
Two resource groups: each provides one serial port OR two same-type I/O channels. Do not add the maximum 2 serial ports and 4 I/O channels together.
| Power & PoE | |
|---|---|
| Gateway power input | Dual redundant DC 9-70 V inputs; DC 48-55 V when PoE is enabled |
| Protection | Overload and reverse-polarity protection |
| Gateway consumption | Less than 3 W without PoE |
| PoE role & ports | Optional PSE power output on 5 Ethernet ports |
| PoE input requirement | Gateway DC input must be 48-55 V when PoE is enabled |
| PoE output capability | 5 ports support IEEE 802.3at; confirm the available total simultaneous output for the specific project |
| Acquisition interface options | |
|---|---|
| Serial / I/O relationship | Every two I/O channels of the same type replace one serial port; two resource groups, up to 4 I/O channels |
| Allowed combinations | Each group: one serial port or 2 DI / 2 DO / 2 AI / 2 AO. Combine the two groups without allocating a resource twice |
| Digital input (DI) | Dry contact or NPN / PNP transistor input |
| Digital output (DO) | Dry contact: 30 VDC / 2 A. MOS / optical MOS: 24 VDC / 0.12 A. |
| Analog characteristics | 12-bit resolution; sampling rate 1,000 samples/s |
| Analog input ranges | 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, -5 to +5 V |
Choose 2 serial ports, 1 serial + 2 I/O, or 4 I/O. Confirm signal types and ranges with the order. The listed analog-input ranges do not establish analog-output ranges.
The RedCap cellular module operates at −35°C to +75°C, with an extended module range of −40°C to +85°C. Confirm extension conditions and complete-device applicability with the order.
| Cellular versions | |
|---|---|
| 4G Cat.4 | UF; LTE FDD / TDD, without carrier aggregation |
| 5G RedCap | UR; Release 17, 5G SA / LTE Cat.4; see regional bands |
| Configuration | Application Priority | Ordering Code |
|---|---|---|
| 2 cellular antennas, without Wi-Fi | Prioritize cellular reception | UR (dual cellular) |
| 1 cellular antenna + 2.4 GHz Wi-Fi | Wi-Fi required alongside cellular | UWUR (single cellular) |
Test reception, throughput and connection stability on site when using a single cellular antenna in weak-signal or multipath conditions.
| Cellular versions | Supported Network | Module Theoretical Downlink / Uplink |
|---|---|---|
| 4G Cat.4 | LTE FDD / TDD | FDD: 150 / 50 Mbps; TDD: 130 / 30 Mbps |
| 5G RedCap | 5G SA / LTE Cat.4 | 5G SA: 226 / 120 Mbps; LTE: 150 / 50 Mbps (module theoretical peaks). |
Theoretical peaks depend on module configuration and network support. Traffic through a single Fast Ethernet port is limited by its 100 Mbps rate and protocol overhead.
Operating system: OpenWrt
| Network and data functions | |
|---|---|
| Wired access | Static IP, DHCP, PPPoE |
| Cellular access | Cellular dial-up; APN / VPDN private networks |
| Dial-up authentication | CHAP, PAP, MS-CHAP, MS-CHAPv2, or no authentication |
| Link backup | Wired / cellular backup, wired recovery detection and dual-SIM failover |
| Connection maintenance | Heartbeat and online detection, reconnection, watchdog and system monitoring |
| Routing | NAT, PAT, DMZ, port mapping, virtual server, DDNS |
| Firewall | SPI stateful packet inspection and iptables firewall configuration |
| VPN compatibility | PPTP / L2TP; configurable redial intervals and attempts |
| Device management | Web management / upgrade; SMS connection control and status notification |
| Wi-Fi management | Wireless repeater, WDS bridging, guest network, scheduling, regional channels and transmit-power adjustment |
| Serial tunneling | TCP / UDP Server, Client |
| Protocol conversion | Modbus RTU to Modbus TCP |
| MQTT data | Multi-topic publish / subscribe, MQTT tunneling, Modbus-to-JSON conversion, incoming JSON parsing and periodic reporting |
Dual SIM is single standby; two cellular connections do not operate simultaneously. eSIM requires carrier provisioning. Link switching and service recovery depend on network conditions and configuration.
| Model / Region | -CN | -AU | -EU |
|---|---|---|---|
| Region | China / India | Latin America / Australia / New Zealand | EMEA / Southeast Asia |
| LTE-FDD | B1/3/5/8 | B1/2/3/4/5/7/8/28/66 | B1/3/5/7/8/20/28 |
| LTE-TDD | B34/38/39/40/41 | B40 | B38/40/41 |
| WCDMA | B1/5/8 | B1/2/4/5/8 | B1/5/8 |
| GSM | EGSM900 / DCS1800 | GSM850 / EGSM900 / DCS1800 / PCS1900 | EGSM900 / DCS1800 |
| Model / Region | -CN | -EU |
|---|---|---|
| Region | China | EMEA / Southeast Asia / Australia / New Zealand |
| 5G NR SA | n1/3/5/8/28/40/41/78/79 | n1/3/5/7/8/20/28/38/40/41/77/78 |
| LTE-FDD | B1/3/5/8 | B1/3/5/7/8/20/28 |
| LTE-TDD | B34/38/39/40/41 | B38/40/41/42/43 |
Regional suffixes depend on cellular version: CN / AU / EU for Cat.4; CN / EU for RedCap. For Australia and New Zealand, choose Cat.4 AU or RedCap EU. EMEA means Europe, the Middle East and Africa. Verify operator bands and local coverage before deployment.
Each application is shown separately. Click an image to enlarge it on this page.
Pump-station example: 1 RS-485 + 2 AI. The PLC handles local control; the gateway acquires data and provides remote communications. A 4G configuration is shown.
Automation example: the PLC connects over Ethernet and serial instruments connect over RS-485. Wired and cellular links provide remote access and backup according to configuration.
Energy-monitoring example: two RS-485 ports collect meter and environmental-instrument data for a remote business platform. The platform is a project option.
These are typical application illustrations, not installation wiring diagrams. Confirm sensor types, separate power supplies, PoE loads and grounding for the project. A 4G configuration is shown; RedCap uses the ordered antenna arrangement.
Choose interfaces and network options to generate the corresponding complete ordering model.
2 serial ports · 0 I/O channels
Inquire About This Configuration| FCT- | 6300- | F5 | Interface code + quantity | UW | UF / UR | -P | -CN / -AU / -EU |
|---|---|---|---|---|---|---|---|
| Company + type | Series | 5 Fast Ethernet ports | For example D2, D1A2 | Optional Wi-Fi | Choose one cellular version | Optional PoE | 4G: CN / AU / EU; RedCap: CN / EU |
An interface letter is followed by its quantity: D2 = 2 RS-485 ports; D1A2 = 1 RS-485 port + 2 current inputs. Wireless codes are ordered UW + UF / UR. Omit UW without Wi-Fi.
| NO | Item | Definition | |
|---|---|---|---|
| 1 | Company | FC = FCTELE | |
| 2 | Product type | T = industrial gateway | |
| 3 | Series | 6300 = 110 mm industrial DIN-rail series | |
| 4 | Port specification | Ethernet | F = Fast Ethernet; F5 = 5 Fast Ethernet RJ45 ports, fixed as 4 LAN + 1 WAN. |
| Serial Ports | D = RS-485; R = RS-232; X = RS-422. | ||
| DI / DO | K = digital input (DI); J = digital output (DO). | ||
| AI / AO | A = current input; M = current output; V = voltage input; Y = voltage output. | ||
| 5 | Wireless configuration | UW = optional 2.4 GHz Wi-Fi; UF = 4G Cat.4; UR = 5G RedCap. Choose UF or UR. | |
| Other wireless codes | UL = LoRa; UX = Wi-Fi 6; UB = Wi-Fi 7; UO = 4G Cat.1; UG = full-featured 5G. These are general naming references, not confirmed options for this model. | ||
| 6 | eSIM / PoE | eSIM supported, subject to carrier provisioning. -P = optional five-port standard PoE PSE, available for 4G and RedCap. DC 48-55 V is required when enabled. Omit -P without PoE. | |
| 7 | Regional suffix | Cat.4: -CN / -AU / -EU. RedCap: -CN / -EU. Place the regional suffix last; see the band tables. | |
| Example Ordering Model | Configuration Details |
|---|---|
| FCT-6300-F5D2UWUF-P-CN | 2 RS-485 + Wi-Fi + 4G Cat.4 + PoE, China version |
| FCT-6300-F5D2UF-CN | 2 RS-485 + 4G Cat.4, without Wi-Fi / PoE, China version |
| FCT-6300-F5D2UR-P-CN | 2 RS-485 + RedCap-CN + PoE, dual cellular antennas, without Wi-Fi |
| FCT-6300-F5D2UR-P-EU | 2 RS-485 + RedCap-EU + PoE, dual cellular antennas, without Wi-Fi |
| FCT-6300-F5D2UWUR-P-EU | 2 RS-485 + RedCap-EU + Wi-Fi + PoE, single cellular antenna |
| FCT-6300-F5D1A2UF-CN | 1 RS-485 + 2 current inputs + Cat.4, without Wi-Fi / PoE |
All examples provide 4 LAN + 1 WAN and eSIM support. RedCap uses dual cellular antennas without Wi-Fi, or a single cellular antenna with Wi-Fi; assess site signals for the latter. Every two same-type I/O channels replace one serial port.
FCTELE cloud deployment is optional; video needs a separate video platform. Confirm antennas, power supplies, mounting accessories and the simultaneous PoE output budget for the order and project.
Four RJ45 LAN ports and one RJ45 WAN port, all 10/100 Mbps. FCT-6300-F5 has five copper Ethernet ports and no SFP port.
No. Serial and I/O share two resource groups. Each group supports one RS-232 / RS-422 / RS-485 port, or two DI, DO, AI or AO channels of the same type. Select 2 serial ports, 1 serial + 2 I/O, or 4 I/O channels when ordering.
Use interface code D1A2. The datasheet example FCT-6300-F5D1A2UF-CN means 1 RS-485 port, 2 current inputs and China-version 4G Cat.4, without Wi-Fi or PoE. Confirm the input range when ordering.
The two physical slots operate in dual-SIM single-standby mode: only one cellular connection is active at a time. Dual-SIM failover and wired / cellular backup are supported. eSIM needs carrier provisioning; switching and application recovery depend on the site network and configuration.
The datasheet specifies two arrangements: UR uses dual cellular antennas without Wi-Fi; UWUR uses one cellular antenna with 2.4 GHz Wi-Fi. For Wi-Fi configurations, assess site reception and test weak-signal or multipath performance.
4G Cat.4 uses -CN, -AU or -EU; RedCap uses -CN or -EU. Australia and New Zealand use -AU for Cat.4 and -EU for RedCap. Confirm the band tables, carrier network and site coverage.
The datasheet lists Modbus RTU-to-TCP conversion, multi-topic MQTT publish / subscribe, tunneling, Modbus-to-JSON conversion, incoming JSON parsing and periodic reporting. Validate instrument registers, platform topics and data formats with the delivered firmware.
Check the selected regional bands and local operator coverage, SIM activation, APN and authentication settings, antenna connections and power input. Review Web status and test the installed location. A module peak rate is not a guaranteed application throughput.
PoE is optional five-port PSE output for compatible powered devices, identified by -P. The gateway requires DC 48-55 V when it is enabled. The five ports support IEEE 802.3at; confirm the available simultaneous total output for the project.
Both cellular versions offer optional PoE PSE. Non-PoE configurations accept dual DC 9-70 V inputs. When PoE output is enabled, input must be DC 48-55 V; check supply capacity together with the load.
The aluminum enclosure measures 110 x 86 x 40 mm and supports 35 mm DIN rail or wall mounting. The 4G operating range is -40 to +85 degC. The RedCap module range is -35 to +75 degC; confirm extended -40 to +85 degC conditions and the complete-unit range with the order.
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
