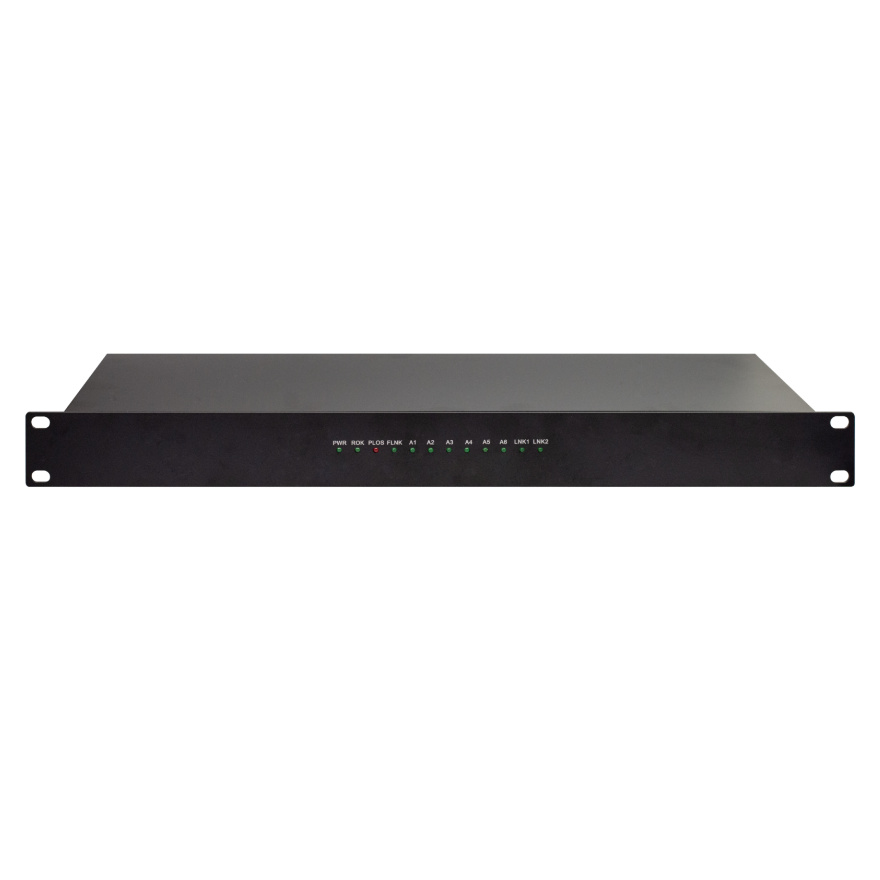

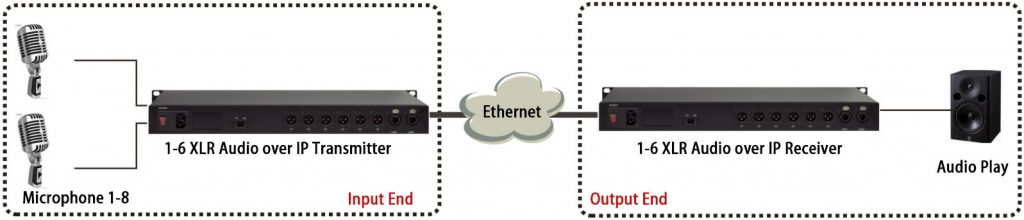

This converter encapsulates broadcast program source audio within IP data packets, supporting UDP encapsulation. It enables the conversion of 1-6 channels of XLR audio signals to a 100M Ethernet network, allowing communication within the same network segment or across different segments via a router.

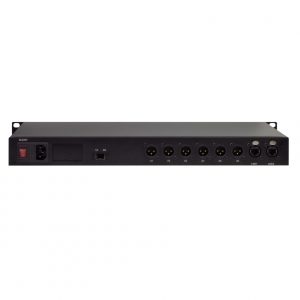

The device features 6 XLR audio ports, 2 Gigabit Ethernet electrical ports, and 1 Gigabit Ethernet optical port.
● Provides 1-6 XLR audio ports, 2 Gigabit Ethernet electrical ports, and 1 Gigabit Ethernet SFP optical port;
● The entire unit features a single-board design with a full aluminum alloy casing and IP40 protection rating;
● Utilizes FPGA, digital encoding/decoding, and clock recovery technologies for high integration and stability.
● The audio interface uses XLR balanced connectors, and the audio power supply uses a high-power toroidal transformer with ±18V power supply for a high dynamic range;
● Uses advanced digital processing, clock recovery, and digital encoding/decoding chips for superior performance;
● Ethernet interface speed is 10M/100/1000M, full-duplex/half-duplex adaptive;
● Supports automatic recovery after power failure or network disconnection;
● Supports Ethernet packet reordering and buffering to mitigate network latency;
● Adjustable frame length to balance bandwidth and transmission delay;
● Hardware-based design for fast startup;
● Supports WEB management;
● Three-level lightning protection for audio/network interfaces, meeting IEC61000-4-5 (8/20μS) differential mode: 6KV, impedance (2Ω); common mode: 6KV, impedance (2Ω) standards;
● Multiple power supply options available: AC220V, DC-48V/DC24V, etc., supporting dual power supply backup.
|
Model |
FCT-080901 |
|
Product Function Description |
Transmits 1-6 channels of XLR audio over Ethernet, 1U rack-mountable. |
|
Business port description |
1-6 XLR audio interfaces; 2 Gigabit Ethernet ports |
|
Power supply |
AC220V or DC-48V (power supply optional), supports power redundancy backup. |
|
Product Size |
Casing: Aluminum alloy (Length × Width × Height) 485*138*45mm, rack-mountable |
|
Weight |
1.75kg |
Protocol: Complies with IEEE 802.3ab, IEEE 802.3z
Speed: 10/100/1000Mbps adaptive full/half-duplex
MAC Address Table: Supports learning up to 4096 MAC addresses
Physical Interface: RJ45 connector, supports Auto-MDIX
Input/Output Interface: XLR connector, balanced 0dBm/600Ω
Maximum Input Level: ≥9.5 dBm
Audio Gain: ±0.1 dB
Audio A/D Sampling: 24-bit
Weighted Signal-to-Noise Ratio: ≥85dB
Nominal Bandwidth: 20Hz～20kHz
Non-linear Distortion: ≤0.2%
Frequency Response: ≤±0.5 dB
Working temperature: -40℃—+85℃
Storage temperature: -40℃—+85℃
Working humidity: 0%—95% (no condensation)
MTBF: ＞100,000 hours
