Model FCP-G4D4
Description :

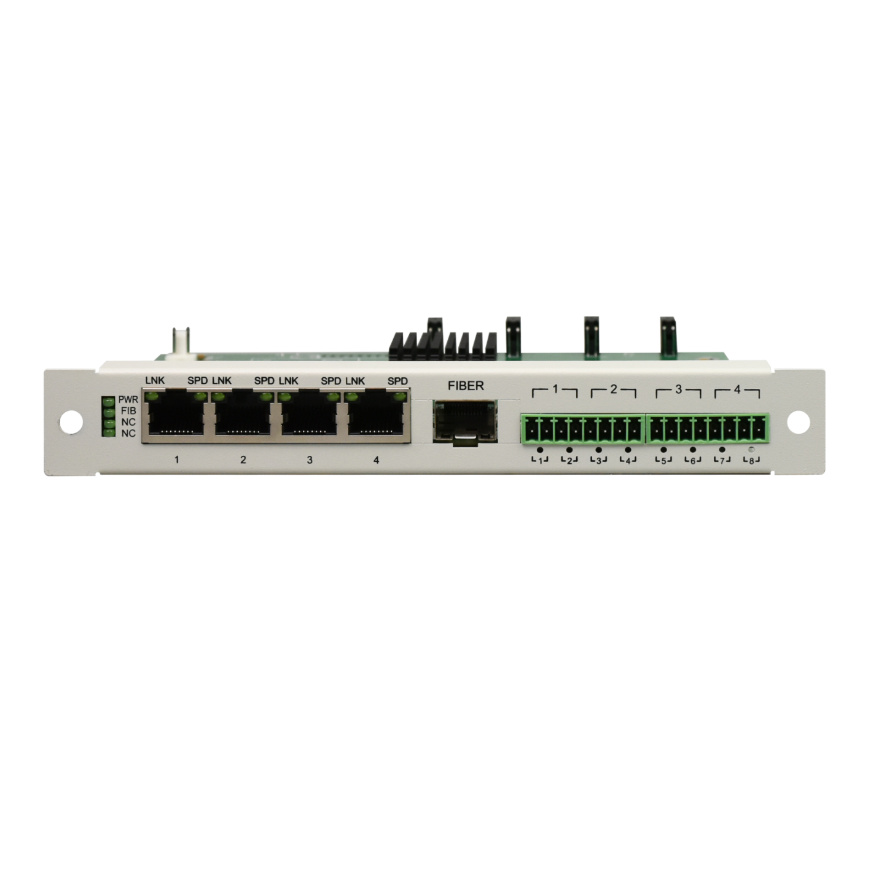

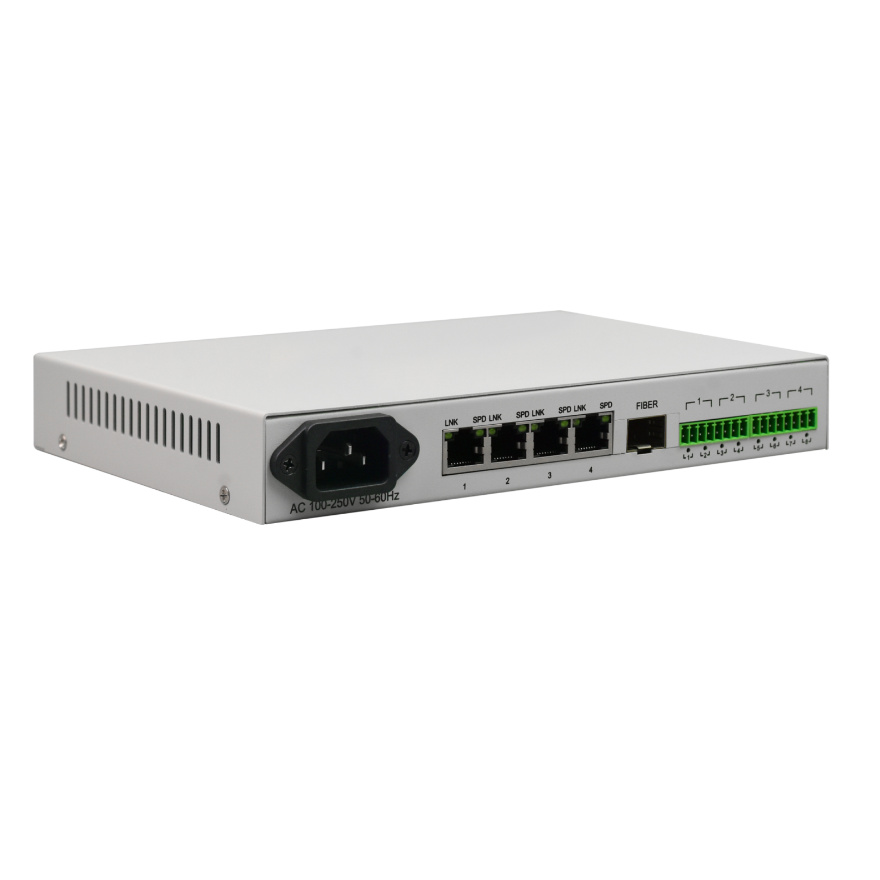

Desktop Type 4*GE+4*Serial or 8*DI/DO Optical Converter FCP-G4D4
Desktop Type 4*GE+4*Serial or 8*DI/DO Optical Converter FCP-G4D4

Overview

This series of products is a point-to-point multi-service optical transmission equipment developed based on the company’s proprietary ultra-large-scale integrated circuits. This product provides 4 Gigabit Ethernet ports, 1-8 digital input/output interfaces, and 1-4 RS232/422/485 interfaces; the 4 Gigabit Ethernet interfaces (sharing 1000M bandwidth) are transmitted through a single optical fiber; it has one optical interface; the internal circuitry uses fully digital circuits, ensuring reliable and stable operation, low power consumption, high integration, small size, and ease of installation and maintenance.

Features

● Based on proprietary integrated circuits, the total bandwidth of the fiber optic line is 1.5G;

● The unrepeated transmission distance of the optical port can reach 2 to 120 kilometers;

● The four Gigabit Ethernet ports are 10/100/1000M, fully/half-duplex adaptive, and each Ethernet port supports Auto-MDIX (automatic crossover/straight-through cable detection);

● Gigabit Ethernet supports the transmission of extra-long VLAN data packets and can be used with switches that support the IEEE802.1Q protocol, supporting jumbo frames with a maximum packet length of 10240;

● It can access 1-8 channels of digital input/output or 1-4 channels of RS232/422/485 serial interfaces (2 digital input/output channels correspond to 1 serial port);

● It can be inserted into a 4U 17-slot centralized chassis and supports SNMP network management;

● All types of interfaces meet the IEC61000-4-5 (10/700μS) lightning protection standard: Differential mode: 6KV impedance (40Ω); Common mode: 6KV, impedance (40Ω);

● Multiple power supply options are available: AC220V, DC-48V/DC24V, etc.

Paramaters

Model

FCP-G4D4

Product Function Description

Simultaneously transmits 4 Gigabit Ethernet interfaces (sharing 1000M bandwidth) over a single optical fiber, along with 1-8 digital input/output interfaces and 1-4 RS232/422/485 interfaces;

Service Port Description

1-8 channel digital input/output interfaces / 1-4 channel RS232/422/485 interfaces; 4 Gigabit Ethernet interfaces, 1 fiber optic interface

Power Supply

AC220V / DC-48V / DC+24V (power supply options)

Power consumption: ≤10W

Product Size

(Length × Width × Height) 216mm × 140mm × 31mm

Weight

1.3KG/PCS



● Optical FiberPort

Optical Port: 1

Optical Port Speed: 1.5G

Fiber Type: Single-fiber/Dual-fiber

Fiber Interface: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single-mode

Transmission Distance without Repeater: 20~120Km

Typical Transmit Power:

Single-mode 1310/1550nm: ≥-9dBm

Multimode 850nm: -18dBm

Multimode 1310nm: -25dBm

Receive Sensitivity Range: -28dBm~-40dBm



● 10/100/1000M Ethernet Port

Protocol: Compliant with IEEE 802.3az, IEEE 802.1Q (VLAN)

Speed: 10/100/1000M adaptive, full/half-duplex fully adaptive

MAC Address Table: Can learn 4096 MAC addresses

Physical Interface: RJ45 connector, supports Auto-MDIX



● Serial Port

Standards

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD- GND

RS-485 4 wires: TxD+ TxD- RxD+ RxD- GND

RS-485 2 wires:

A(corresponding to TX+)

B(corresponding to TX-) GND

RS-232: RXD TXD Signal Ground



● Dry Contact Port

Output interface type:

Dry contact

1: Signal relay dry contact output;

2: Optical MOS relay output (maximum internal resistance 25Ω)

Pulse quantity:

Optical MOS relay output, 0-VCC (VCC is the power supply voltage of this machine)

Response time: Signal relay dry contact output: <1.2ms, optical MOS relay output <0.6ms

Switch signal: Signal relay dry contact output 30VDC/0.5A; optical MOS relay output: 245VDC/0.12A

Maximum switching frequency: 50HZ

Output surge protection: Signal relay dry contact output: None;

Optical MOS Rrelay output: TVS+solid discharge tube protection



● Environmental Index

Working temperature: -10℃—+60℃

Storage temperature: -40℃—+85℃

Working humidity:   0%—95% (non-condensing)

MTBF:              >100,000 hours

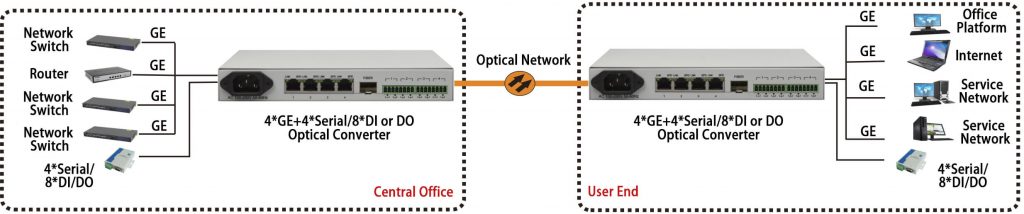

Application
