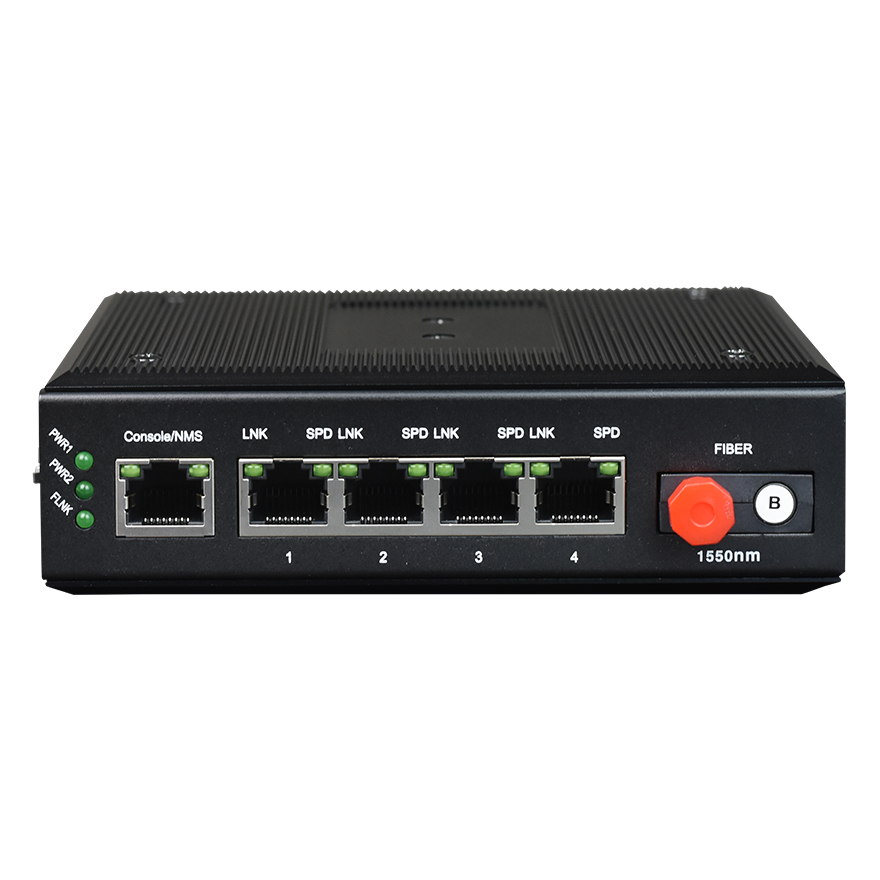

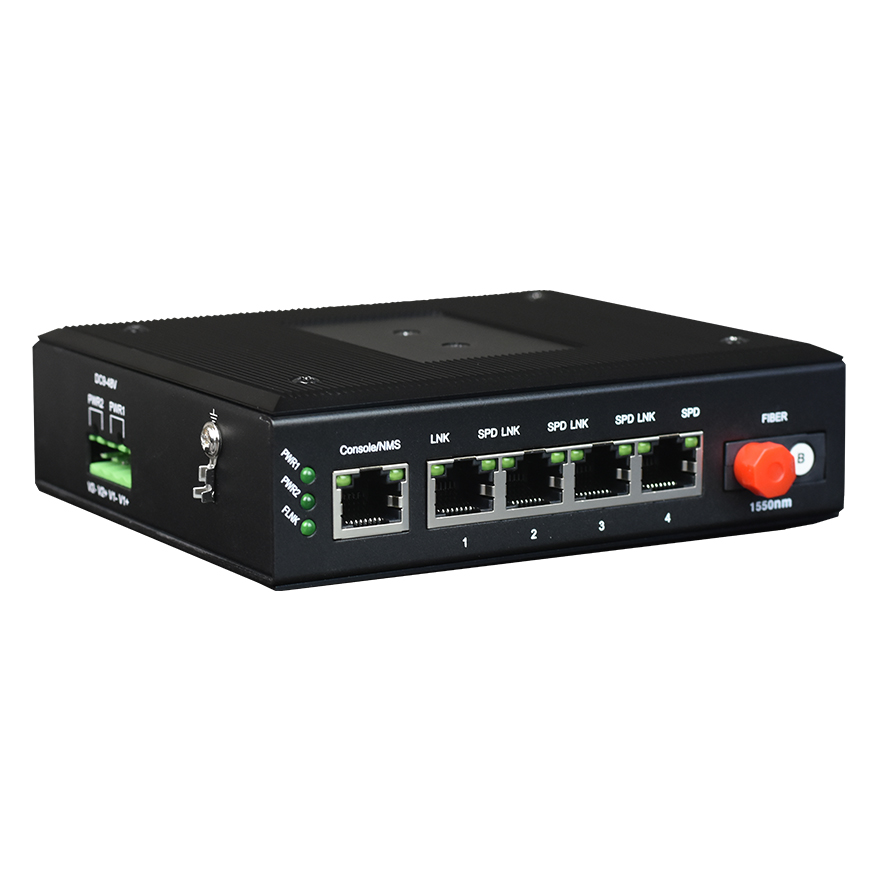

Industrial Rail 4FE Fiber Media Converter

View : 558
Type : unmanaged ethernet switch
Description :

This series of products are industrial grade 4 port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber,

Overview

    This series of products are industrial grade 4 port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission. This product offers 1 fiber optic port; 4 Fast Ethernet port, and share the 100M bandwidth, the bandwidth of each port can be set by Console (Ethernet interface can support VLAN ), namely Logic Isolation; 1 Console port. With the alarm function, the operation is stable and reliable, low power consumption, high integration, small size. Console function is optional, please state the requirements when in order.




Features

Industrial Ethernet series, designed for harsh industrial environments

device provides four Fast Ethernet ports, and share 100M bandwidth, the bandwidth of each channel can be set through the Console port (Ethernet interface support VLAN );
electrical connector (RJ45 connector) support 10 / 100M adaptive, full / half duplex mode, MDI / MDI-X auto-detect
optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC / ST / FC interface, optional
VLAN support the transmission of long packets can support IEEE802.1Q protocol products matching switches used to support up to 10240 byte Ethernet packets;
support a wide range of AC and DC input
support internal isolation, redundant dual power inputs
Power Support overload protection, anti-reverse protection
meet industry four electromagnetic compatibility requirements
Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
Fanless cooling efficiency, reduce repair time
IP40 enclosure protection rating, can withstand the test of harsh environments
rail or wall mounting
wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃
All models are tested by 100% roast machine, Warranty: 5 years

Parameters

 Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm

Ethernet interface(10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX

Working environment
Working temperature: -40°C ~ 85°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 100°C
Storage Humidity: 5%~95 % (no condensation)

Specifications

Functional Description

4*FE over Fiber,Desktop Type

Port Description

One Fiber 100M Ethernet interface;4*FE

Power

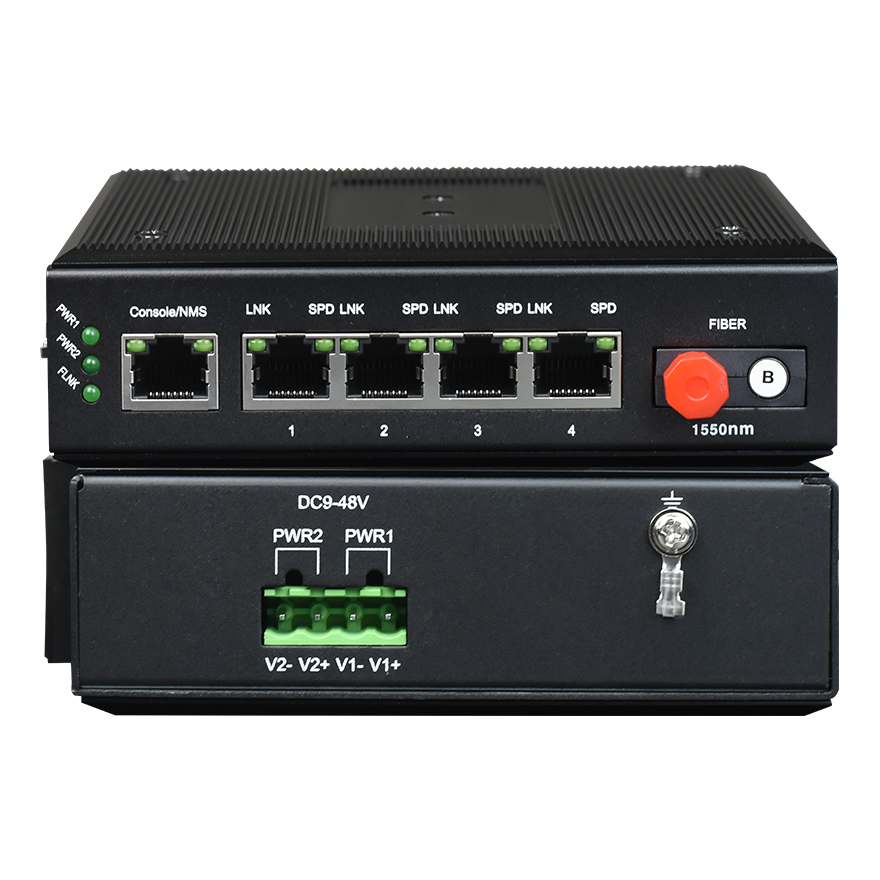

Dual redundant power inputs DC9-48V/AC9-48V, power consumption <10W

Dimension

Product Size: 133 X120 X40mm (WXDXH)

Weight

0.685Kg
