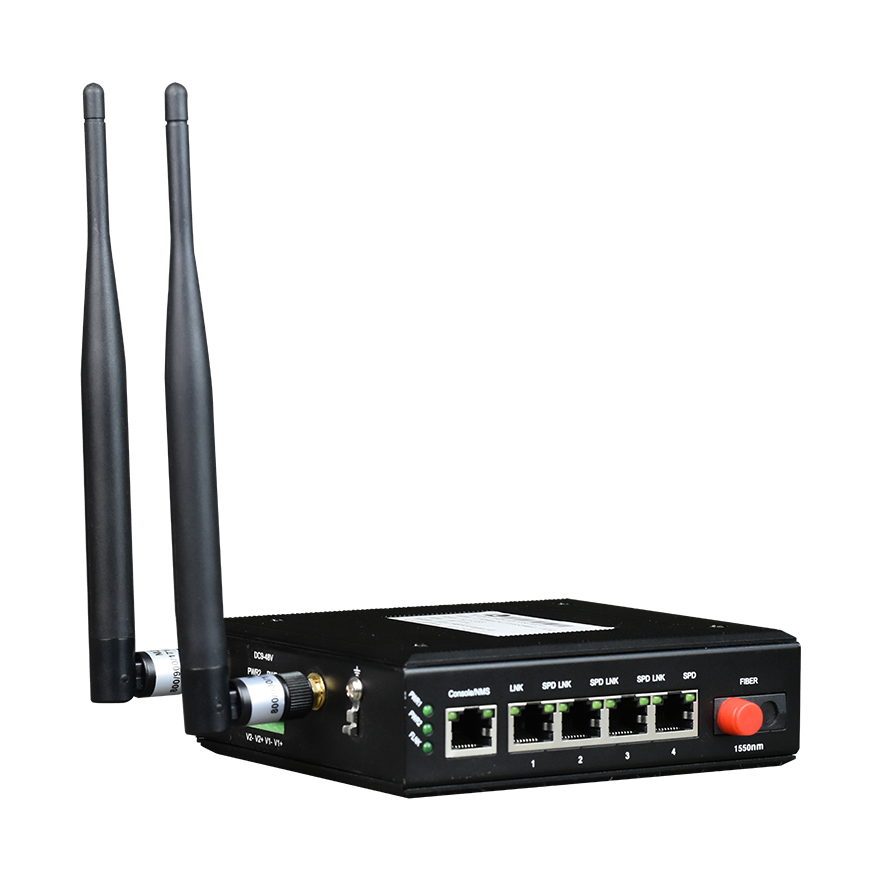

Optical fiber WiFi backup 4*FE to 1 uplink 100M optical Industrial grade optical transceiver

View : 524
Type : Industrial Fiber Media Converter
Description :

This series of products adopt industrial rail design, and the equipment is point-to-point structure design, so as to realize the stability, reliability and real-time of data transmission in the harsh environment.


This series of products adopt industrial rail design, and the equipment is point-to-point structure design, so as to realize the stability, reliability and real-time of data transmission in the harsh environment. When working, the network signal becomes a chain structure, which simplifies the engineering installation and reduces the engineering cost.

This product provides: one 100Mbps Ethernet optical port; one 300mbps built-in wireless module of ieee802.11b/g/n, four 100Mbps Ethernet electrical interfaces; it can be connected with four 100Mbps Ethernet electrical interfaces with WiFi and optical fiber, four 100Mbps Ethernet optical interfaces, and one Gigabit SFP optical equipment in the middle convergence terminal;

The device is based on the scheme of Ethernet switch chip + FPGA, with remote management function, SNMP software can manage the device, with perfect alarm function, the whole machine is stable and reliable, low power consumption, high integration, small size.



Industrial Ethernet series, designed for harsh industrial environments

The equipment provides one 300mbps wireless module of ieee802.11b/g/n, four 100Mbps Ethernet ports and one 100Mbps optical interface.

Support the transmission of VLAN ultra long data packets, which can be matched with the switch products supporting IEEE802.1Q protocol; have the functions of broadcast storm protection, flow balancing, conflict isolation and error detection; Ethernet port 10 / 100Mbps adaptive, port MDI / mdi-x adaptive without manual adjustment;

A 300mbps built-in wireless module of ieee802.11b/g/n, with a total bandwidth of 300m, can be connected with the equipment with WiFi at the corresponding convergence end;

When the optical fiber is normal, use the optical fiber as the communication and WiFi as the backup. When the optical fiber is abnormal, WiFi can work to ensure the business is not interrupted;

Ethernet interface and power interface shall be provided with lightning protection, which shall meet the standard of GB / t17626.5 (iec61000-4-5) short circuit current wave of 10 / 700 μ s and open circuit peak output voltage of 6kV;

Wide range AC / DC input (9v-48v), internal isolation, redundant dual power input, overload protection and anti reverse connection protection are supported.

Meet the requirements of industrial level IV electromagnetic compatibility;

Super lightning protection function: anti lightning, anti induction high voltage, anti surge, etc., efficient heat dissipation without fan, reducing repair time;

Protection grade of IP40 shell, able to withstand the test of harsh environment, rail or wall mounted installation;

Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃

All models are tested by 100% roast machine, Warranty: 5 years


● Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Transmission distance:   2km multimode fiber, attenuation (3dbm / km)

Wavelength:            850nm

Transmitting power:     – 12dbm (min) – – 9dbm (max)

Receiving sensitivity:     – 28dbm (min)

Link budget:            16dbm

Single-mode Fiber

8/125um, 9/125um

Transmission distance:    20km single-mode fiber, attenuation (0.35dbm / km) (customized if larger distance is needed)

Wavelength:            1310nm (1550nm for ultra long distance transmission)

Transmitting power:     – 9dbm (min) – – 5dBm (max)

Receiving sensitivity:    – 27dBm (min)

Link budget:            18dbm

●  Ethernet interface(100/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

 Wifi interface

Technical standard:

Ieee802.11b/802.11g/802.11n, ieee802.3/802.3u

WLAN Rate:

11n: 802.11n HT20: Max, 72.2mbps @ mcs7: 1nss max, 144.4mbps @ mcs15: 2nss 802.11n ht40: Max, 150Mbps @ mcs7: 1nss

Max, 300mbps @ mcs15:2nss

11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps

11b: 11, 5.5, 2, 1Mbps

WLAN characteristics:

Support 2.4GHz, compatible with 2.4GHz, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b standard

Support 64 / 128 / 152 bit WEP encryption, 128 bit WPA standard (TKIP / AES), IEEE

802.1x and other security encryption mechanisms

Support SSID broadcast control and MAC address based access control

Number of working channels: USA, 1-11ch, UE, 1-13, JP, 1-14

Frequency range: 2.4 ~ 2.4835ghz

Spread frequency technology: DSSS (direct sequence spread frequency)

Data modulation mode: BPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)

It supports dual antennas, which can greatly enhance its wireless transmission ability and enhance the stability of wireless signals.

Sensitivity @ per (packet error rate): mcs15: – 70dBm @ 10% per; mcs7: – 75dbm @ 10% per; 54m:

-78dbm @ 10% per; 11m: – 92dbm @ 8% per; 6m: – 94dbm @ 10% per; 1m: – 98dbm @ 8% per (ClassicType value)

Transmission distance: 60m for indoor and 150m for outdoor (depending on the environment)

RF power: 11n 14dbm 11g 16dbm, 11b 19dbm,

 Working environment

Working temperature: -40°C ~ 85°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 100°C

Storage Humidity: 5%~95 % (no condensation)


Product name

One 300mbps wireless + 4 100m Ethernet + 1 100m optical port of ieee802.11b/g/n, industrial switch (Industrial rail type or wall mounted type)

Functional Description

One 300mbps wireless + 4 * 10 / 100M Ethernet port + 100Mbps optical switch, industrial rail type or wall mounted type, ieee802.11b/g/n

Port Description

One 300mbps wireless with ieee802.11b/g/n, four 100m Ethernet ports, one 100m optical interface, one Ethernet network management interface (SNMP), one console interface


Redundant dual power input dc9-48v / ac9-48v, power consumption < 10W

Overload protection: support; reverse connection protection: support; redundancy protection: support c

Access terminal: 4-core 5.08mm spacing plug-in terminal


Product Size: 133 X120 X40mm (WXDXH)
