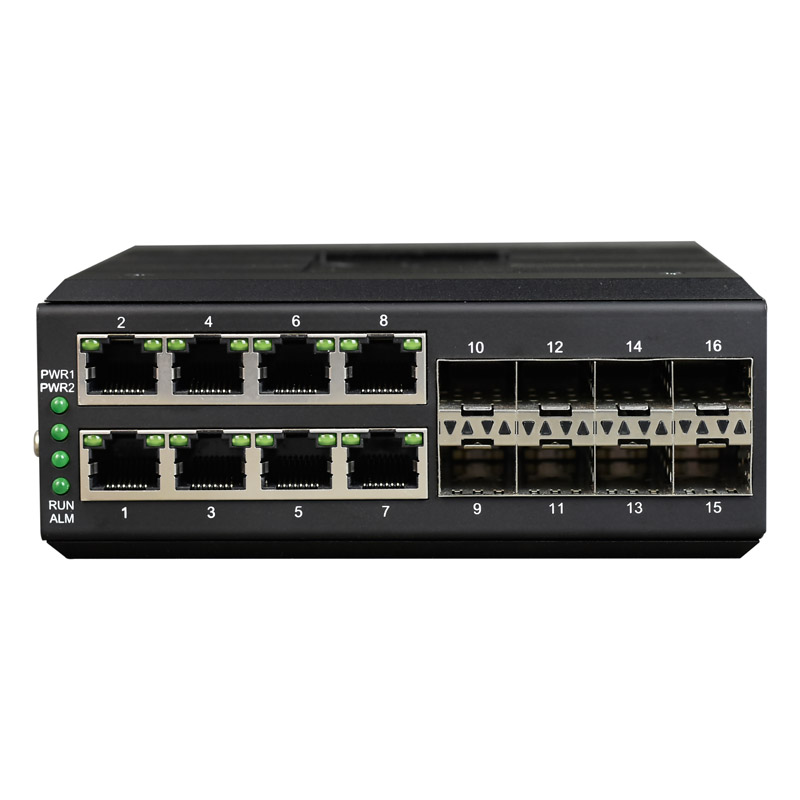

Managed Din-Rail 8-Port Gigabit Ethernet + 8-Port Gigabit SFP Industrial Switch

View : 450
Type : Managed Din Rail Industrial Switch
Description :

The 8*Gigabit Ethernet + 8*Gigabit SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch.

Overview

This product adopts an industrial rail design. The 8*Gigabit Ethernet + 8*Gigabit SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch. It has high integration and rich functions. It has 8 Gigabit Ethernet ports and 8 Gigabit SFP ports, especially suitable for occasions with large data streams such as video transmission.



It supports rich Layer-2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and forms cascaded, single-ring, tangent-ring networks and other topological structures. The self-healing time is less than 20ms, ensuring the real-time and stability of the network. The switch adopts mature technology and open network standards, it adapts to low and high temperature, has features of strong anti-electromagnetic interference, anti-salt spray, anti-seismic and anti-shake, and meets the harsh working environment requirements of industrial sites. It can provide efficient, reliable and quick solutions for the industrial Internet of Things.


Din-rail Managed 8 Port Gigabit Industrial Network Switch

Features

All-aluminum alloy shell, good heat dissipation characteristics, gold oxide oxidation process, IP40 protection level;

Aluminum alloy industrial guide rail design, designed for harsh industrial environments;

Support 8 Gigabit ethernet ports and 8 Gigabit SFP optical ports;

Each ethernet port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms;

Support port bandwidth limitation, port flow control, broadcast storm suppression;

Support Web, CLI, and Telnet management functions;

Power down alarm, loop alarm;

Provide Console debugging;

Can support POE (POE+) equipment;

Management functions:

1. Support CLI, WEB, and SNMP management methods

2. Support port speed limit based on ingress/egress, support half-duplex back pressure flow control and 802.3X full-duplex flow control

3. Support storm suppression based on broadcast, multicast and unknown unicast

4. Support IEEE 802.1Q 4K VLAN, support QINQ

5. Support port mirroring, support Syslog, support Ping command, etc.

6. Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, policy QOS

7. Support port traffic statistics, online upgrade

8. Support STP/RSTP, MSTP, support EAPS, ERPS

9. Support IGMP Snooping V1/V2/V3, support GMRP

 10. Support manual aggregation, support static/dynamic LACP protocol

11. Support one relay alarm, support RMON management, TRAP alarm

12. Support DHCP Snooping, Option 82, support 802.1X

13. Support user hierarchical management, support ACL access control list

14. Support DDOS, support port-based MAC filtering/binding

15. Support cable detection, easy to check the length of the network cable in engineering

16. Support NTP, easy to synchronize network time in real-time

17. Support IPV4/IPV6 static route three-layer switching technology

Ethernet interface with lightning protection, radar protection to GB/T17626.5 (IEC61000-4-5) short circuit current wave 10/700μs, open circuit peak output voltage 6KV standard;

Support a wide range of AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply supports overload protection, and anti-reverse connection protection;

Comply with industrial level 4 electromagnetic compatibility requirements;

Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., no fan for efficient heat dissipation, reducing repair time;

IP40 shell protection level, able to withstand the test of harsh environments, rail or wall-mounted installation;

Wide temperature type: working temperature -40℃~ +85℃.

Specifications

Product Model

FCM-G8Q8

Supported Protocol

IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d、IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum Frame Length

10K

Port Number

8*10/100/1000M RJ45 Ethernet ports, 8*100/1000M SFP optical ports, and 1*Console port

Network Medium









1000Base-LX: Use long-wavelength laser (1310nm) to cross multi-mode and single-mode fiber, the maximum distance of multi-mode fiber is 550m, and single-mode is 20-120km.

1000Base-SX: The maximum transmission distance of 62.5μm multimode fiber is 275m, and the maximum transmission distance of 50μm multimode fiber is 550m.

10Base-T: Cat3 or Higher; (Supports maximum transmission distance of 200m)

100Base-T: Cat5 UTP; (Supports maximum transmission distance of 100m)

1000Base-T: Cat-5e or Cat 6 UTP; (Supports a maximum transmission distance of 100m)

VLAN Address Capacity

4K

MAC Address Capacity

8K

Cache

4Mbits

Backplane Bandwidth

52Gbit

Forwarding Rate





10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Operating Environment



Storage temperature: -40℃~85℃; storage humidity 0%~90% non-condensing

Working temperature: -40℃~85℃; working humidity 0%~90% non-condensing

MTBF

> 100,000 hours

Power Supply

Redundant dual power input DC9-48V/AC9-48V

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

Power Consumption

Max 15W

Product Size

133mm(L) x 120mm(W) x 50.0mm(H)

Weight

0.95KG/PCS

Application

application of industrial switch
