Managed Din-Rail 16-Port Gigabit Ethernet + 8-Port Gigabit SFP Industrial Ring Network Switch

View : 664
Type : Managed Din Rail Industrial Switch
Description :

The 16+8 switch features an industrial din rail design, it is a new generation multi-service access Gigabit Ethernet switch with high integration, rich functionality, and simplicity.

Overview

The 16+8 switch features an industrial din rail design, it is a new generation multi-service access Gigabit Ethernet switch with high integration, rich functionality, and simplicity. It includes 16 Gigabit Ethernet ports and 8 Gigabit optical ports, making it particularly suitable for data-intensive applications such as video transmission. It supports a wide range of Layer 2 management protocols required for industrial switches and ITU G.8032 redundant ring network protocol. It can form a network with cascaded single-ring tangent topology, with a self-recovery time of less than 20ms, ensuring network real-time performance and stability.



The switch adopts mature technology and open network standards, making it suitable for low and high-temperature environments, with strong resistance to electromagnetic interference, salt spray resistance, and shock and vibration resistance. It meets industrial sites’ demanding working environment requirements, providing efficient, reliable, and fast solutions for the industrial Internet of Things.


16 port switch

Features

The switch features a full aluminum alloy casing, with excellent heat dissipation characteristics, an oxide process on the metal-oxide semiconductor, and an IP40 protection level.

The aluminum alloy industrial rail design is specifically engineered for harsh industrial environments.

It supports 16 Gigabit Ethernet ports and 8 Gigabit SFP optical interfaces.

Each ethernet or optical port supports standard ERPS ring network protocol, with a self-recovery time of less than 20ms.

It supports port bandwidth limitation, port traffic control, and broadcast storm suppression.

It supports Web, CLI, and Telnet management functions.

It provides power failure alarms and loop alarms.

The switch features Console debugging capabilities.

It supports POE (POE+) devices.

● Management functions:

  It supports CLI, WEB, and SNMP management methods.

  ● It supports ingress/egress-based port rate limiting, half-duplex back-pressure flow control, and 802.3X full-duplex flow control.

  ● It offers storm suppression for broadcast, multicast, and unknown unicast traffic.

  ● It supports IEEE 802.1Q 4K VLAN and QINQ.

  ● It supports port mirroring, Syslog, Ping command, etc.

  ● It support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, and strategy QOS.

  ● It supports port traffic statistics and online upgrades.

  ● It supports STP/RSTP, MSTP, EAPS, and ERPS.

  ● It supports IGMP Snooping V1/V2/V3 and GMRP.

  ● It supports manual aggregation and static/dynamic LACP protocols.

  ● It provides relay alarm capabilities, RMON management, and TRAP alarms.

  ● It supports DHCP Snooping, Option 82, 802.1X.

  ● User-based management and ACL access control list support are also included.

It supports DDOS and port-based MAC filtering/binding.

The Ethernet interfaces are equipped with lightning protection according to GB/T17626.5 (IEC61000-4-5) standards, with a short-circuit current wave of 10/700μs and an open-circuit peak output voltage of 6KV.

It supports a wide range of AC/DC input (9V-48V) with internal isolation and redundant dual power supply inputs, providing overload protection and reverse connection protection.

It complies with industrial-grade electromagnetic compatibility requirements.

With powerful lightning protection, it is resistant to lightning strikes, high voltage induction, and surges. It also features efficient fanless cooling, reducing repair time.

Working temperature -40℃~ +85℃.

Specification

Module

FCM-G16Q8

Supported Protocols

IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Max Frame Length

10K

Ports

16*10/100/1000M RJ45 port, 8*100M/1000M SFP port, 1 Console port

Network Media









1000base LX: a long wavelength laser (1310nm) is used to cross multimode and single-mode fiber. The maximum distance of multimode fiber is 550m and that of single-mode fiber is 20-120km.

1000base SX: the maximum transmission distance of 62.5 μ m multimode fiber is 275m, and the maximum transmission distance of using 50 μ m multimode fiber is 550m.

10Base-T: Cat3 UTP or Higher; (support the maximum transmission distance of 200m)

100base TX: Cat5 UTP; (supporting maximum transmission distance of 100m)

1000BASE-T: Cat-5e UTP or Cat6 UTP (supporting maximum transmission distance of 100m)

VLAN Address Table

4K

MAC Address Table

8K

Cache

4Mbits

Backplane Bandwidth

56Gbit

Filtering and Forwarding Rate





10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Operating Environment



Storage temperature: – 40 ℃ – 85 ℃; storage humidity 0% ~ 90%

Working temperature: – 40 ℃~ 85 ℃; working humidity 0% ~ 90%

MTBF

>100,000 hours

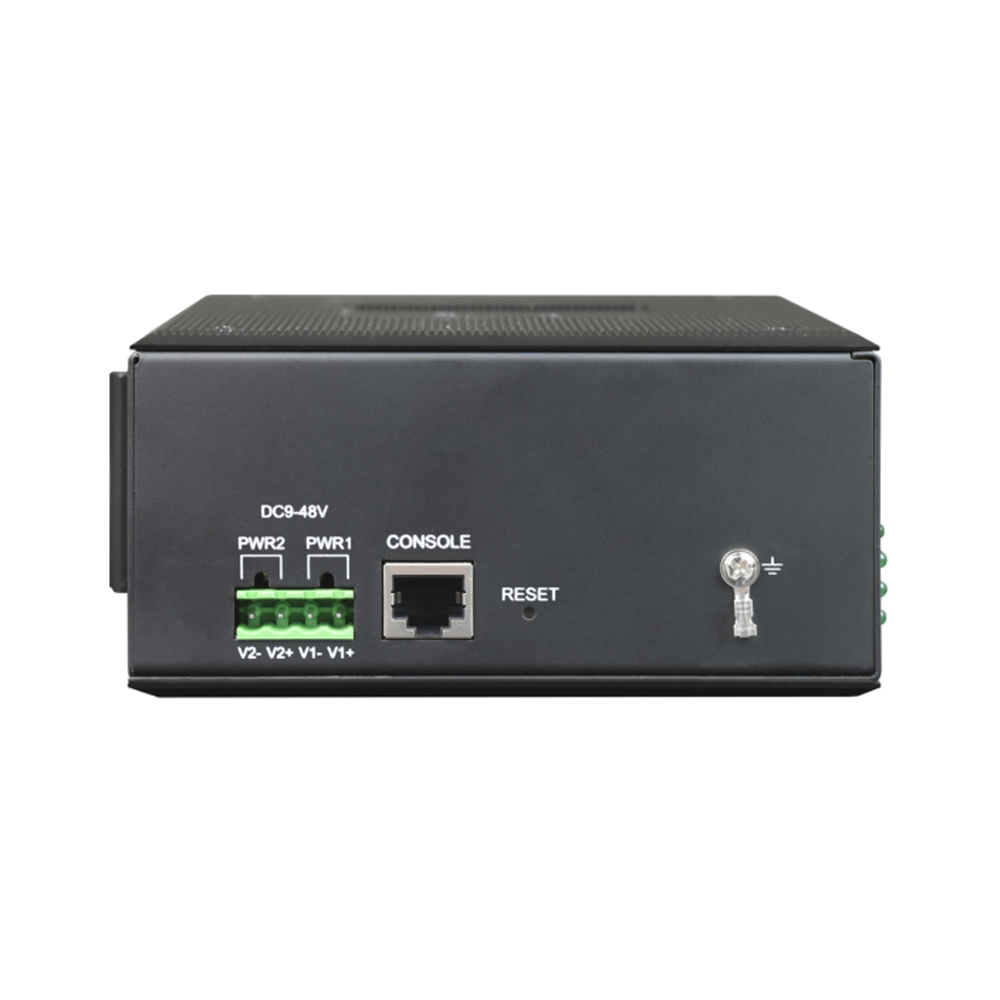

Power Supply

Redundant dual power input DC9-48v/AC9-48v

Overload protection: support; reverse protection: support; redundancy protection: support

Access terminal: 4-core 5.08mm spacing plug-in terminal

Power Consumption

Maximum 17w

Dimension

133mm (L) x 120mm (W) x 50.0mm (H)

Weight

1.7Kg/piece

Application

application of 16 PORT SWITCH
