Industrial Rail Converged 4*FE + 4*FE(SFP) to 2*GE(SFP) Network Switch FCM-075511-3

View : 193
Type :
Description :

Overview

This series of products adopts industrial rail design. 4*FE + 4*FE(SFP) to 2*GE(SFP) switch is a new generation of multi-service access Ethernet switches with high integration, rich functions, simple and convenient features. They are especially suitable for occasions with large data flows such as video transmission. They adopt mature technology and open network standards, adapt to low and high temperatures, have strong resistance to electromagnetic interference, salt spray, shock and vibration, meet the harsh working environment requirements of industrial sites, and provide efficient, reliable and fast solutions for the industrial Internet of Things.

Features

All-aluminum alloy shell, good heat dissipation characteristics, gold oxide oxidation process, IP40 protection level;

Aluminum alloy industrial rail design, designed for harsh industrial environment;

Provides two uplink Gigabit fiber interfaces, 4*100M Ethernet electrical ports, and 4*100M Ethernet optical interfaces;

The switch has built-in 2Mbit SSRAM high-speed memory, non-blocking design, supports the transmission of VLAN ultra-long data packets, and the longest packet supports 16K. It can be used with switch products that support IEEE802.1Q protocol;

It has functions such as broadcast storm protection, traffic balancing, conflict isolation and error detection;

Electrical port 10/100Mbps self-adaptation, electrical port MDI/MDI-X self-adaptation does not require manual adjustment,

Ethernet interface with lightning protection, lightning protection reaches GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard

Support wide range AC and DC input (9V-48V), support internal isolation, redundant dual power input, power supply supports overload protection, anti-reverse connection protection

Meet the requirements of industrial level 4 electromagnetic compatibility

Super strong lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc., fanless and efficient heat dissipation, reducing repair time

IP40 shell protection level, can withstand the test of harsh environment, rail or wall mounting

Wide temperature type: working temperature -40℃~ +85℃

Parameters

FiberPart

Optical port:6

Optical Fiber:Single/Dual fiber

Fiber interface:LC(SFP)

Wavelength:850nm/1310nm Multimode;1310nm/1550nm Single mode

Relay-free transmission distance: 0~80Km

Typical transmit power: single mode 100uw — 0.93mw



10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 support Auto-MDIX



Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Number

FCM-075511-3

Service Port Description

4*100 Gigabit Ethernet electrical ports + 4*100 Gigabit SFP optical ports + 2*Gigabit SFP optical ports

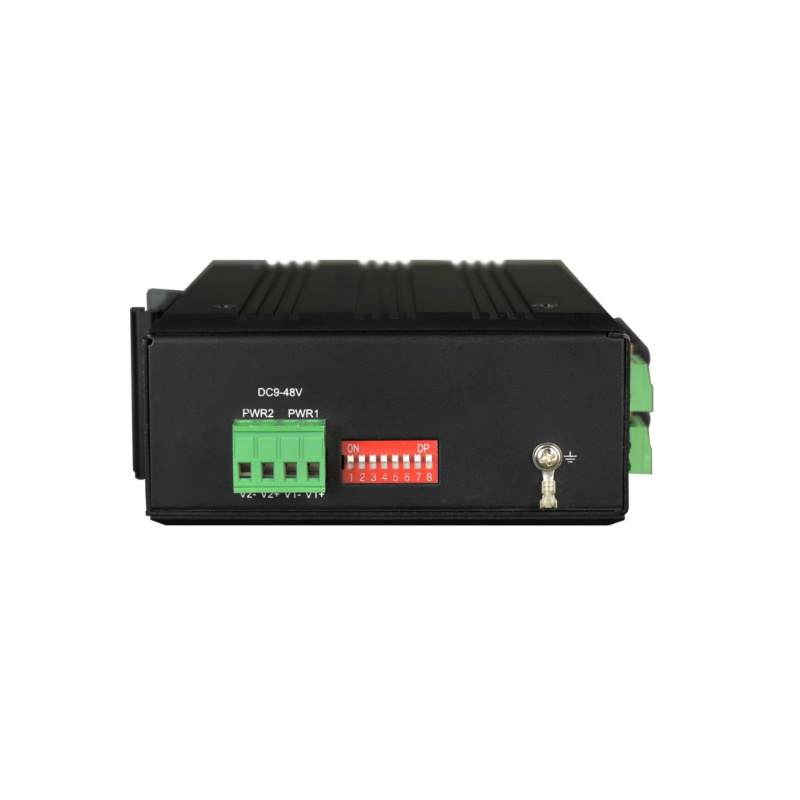

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-40V, power consumption <7W

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 133mm (length) x 120mm (width) x 50.0mm (height) (height)

Installation method: guide rail installation, wall mounting

Weight

0.75KG/PCS
