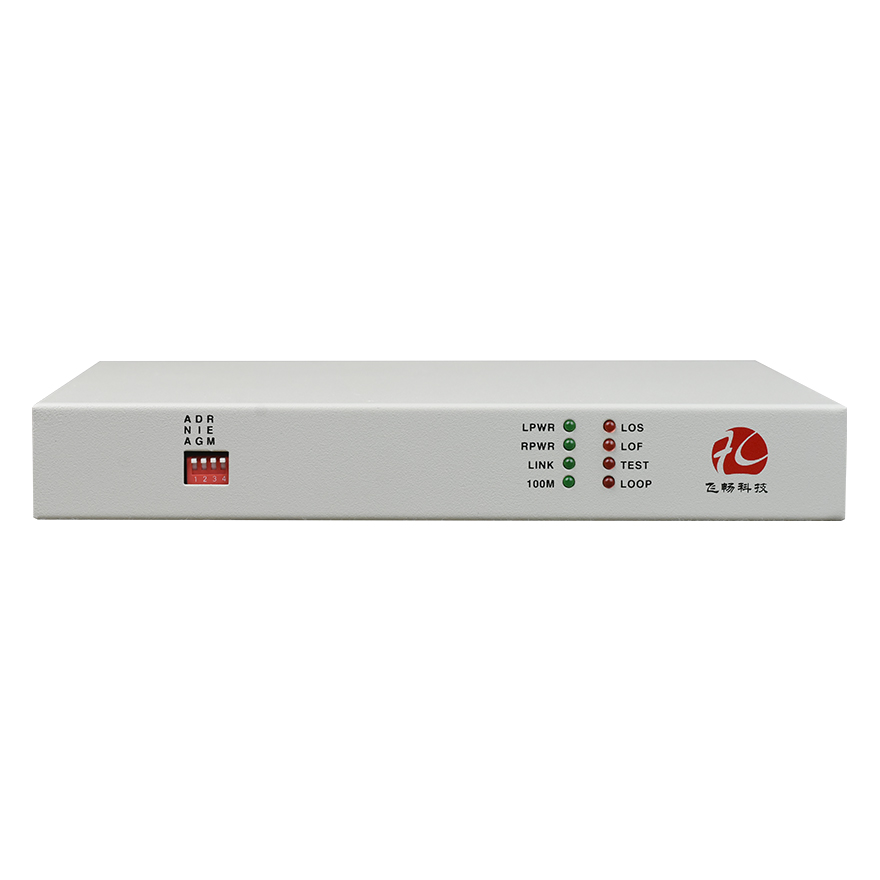

E1-4 Channel RS232/RS422/RS485 Converter

View : 262
Type : E1-Serial converter
Description :

This interface converter is based on FPGA, providing 4Channel RS232/485/422 transmission on E1 interface.

Overview

    This interface converter is based on FPGA, providing 4Channel RS232/485/422 transmission on E1 interface. The product breaks through contradictions between traditional serial interface communication distance and communication rate, besides, it also can solve electromagnetic interference, ground ring interference and lightning damage. The device greatly improves reliability, security and confidentiality of data communication. It is widely used for various industrial control, process control and traffic control occasions, especially for Bank, and Power and other sectors and systems which have special requirements of electromagnetic interference environment. RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud rate.


Features

Based on self -copyright  IC
Support 3 line RS232 (TXD,RXD,GND), support for flow control CD,DSR,CTS
Have three Loop Back Mode: E1 interface Loop Back (ANA)、RS232/485/422 interface Loop  Back(DIG)、Command the remote RS232/485/422 interface Loop Back(REM)
RS232/RS485/RS422 supports hot-plug, supports DTE or DCE device interconnection
RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud  rate
Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV,    Impedance (2 Ohm), CM(Common Mode): 6KV, Impedance (2 Ohm) standard
Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
It can form E1 serial converter (A) — E1 fiber optic Modem (B) — fiber serial Modem (C) topology
AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

Parameters

E1 interface
Interface Standard: comply with protocol G.703;
Interface Rate: 2048Kbps±50ppm;
Interface Code: HDB3;
Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
Serial interface
Standard
EIA/TIA-232 RS-232 (ITU-T V.28)
EIA/TIA-422 RS-422 (ITU-T V.11)
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Interface
RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 2 wires: Data+(Correspond TX+), Data-(Correspond TX-), Signal Ground
RS-232: RXD, TXD, Signal Ground
Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specifications

Model

Model Number:FCC-E1D4/R4/Q4

Functional Description

E1-4RS232/422/485 Converter , provides three interfaces Optional , Used in pairs , Serial port rate up to 56.7Kbps

Port Description

One E1 interfaces, four data interfaces (RS232 / RS485 / RS422)

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V,DC30V, DC110V

Power consumption: ≤10W

Dimension

Product Size:  216X140X31mm (WXDXH)

Weight

1.2KG
