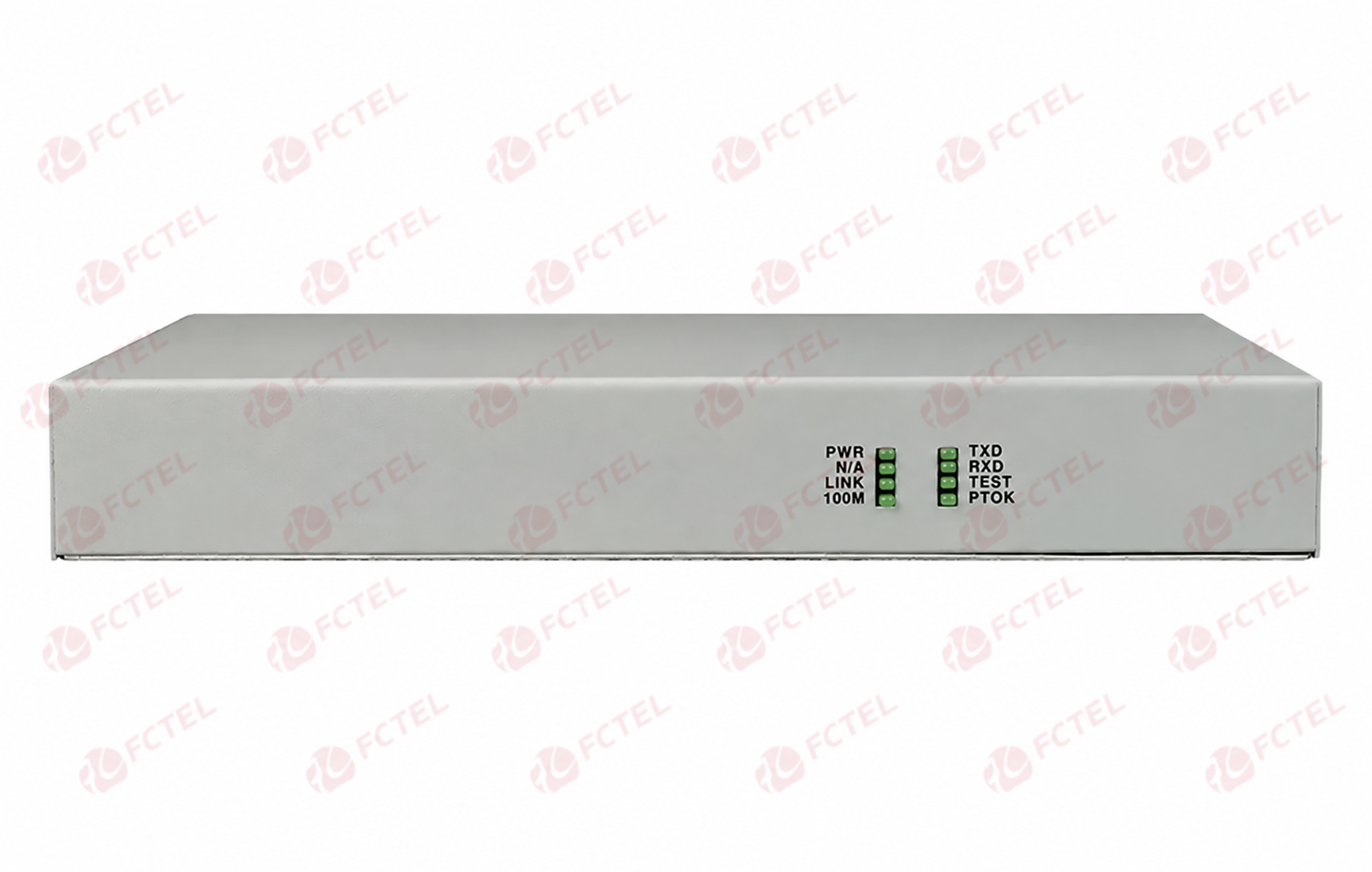

Model FCC-V1F1
Description :

The FCC-V1F1 is normally used in pairs to connect two Ethernet networks through V.35 baseband modem links. It provides one DTE/DCE V.35 interface and one 10/100Base-T Ethernet interface.

Ethernet to V.35 Protocol Converter
Ethernet to V.35 Protocol Converter
Ethernet to V.35 Protocol Converter
Ethernet to V.35 Protocol Converter

Overview

The FCC-V1F1 Ethernet to V.35 protocol converter uses a large-scale FPGA design and provides one DTE/DCE V.35 interface plus one Ethernet interface. It transports 10/100Base-T Ethernet data through an existing V.35 channel and operates as a high-performance, self-learning Ethernet bridge.

Used in pairs, the converter extends Ethernet over V.35 services supplied by existing DDN, ISDN or ATM networks, including baseband modem links. Built-in loopback diagnostics simplify commissioning and routine maintenance.

Features

  • Proprietary integrated-circuit design.
  • Supports oversized Ethernet frames up to 2,036 bytes.
  • Dynamic 4,096-entry MAC address table with local frame filtering.
  • 10/100 Mbps Ethernet with full/half-duplex auto-negotiation and VLAN support.
  • Auto-MDI/MDIX support for straight-through and crossover Ethernet cables.
  • Automatic Ethernet monitoring and recovery for continuous, stable operation.
  • Two local loopback modes: V.35 local loopback (ANA) and Ethernet local loopback (DIG).
  • Built-in pseudorandom-code test for the V.35 channel, allowing the unit to act as a V.35 BER tester.
  • Supports DTE, DCE, external-clock and internal-clock operating modes.
  • Rack-mount version supports SNMP management.
  • Power options: AC 220 V, DC -48 V or DC +24 V; DC inputs are polarity independent.

Technical Parameters

10/100M Ethernet Interface

Standards IEEE 802.3; IEEE 802.1Q VLAN
Rate and duplex 10/100 Mbps auto-negotiation; full/half-duplex auto-negotiation
MAC address table Self-learning table with 4,096 MAC addresses
Connector RJ45 with Auto-MDI/MDIX

V.35 Interface

Mode DCE and DTE
Rate N × 64 Kbps (N = 0–32)
Connector DB25 / M34

Specifications

Model FCC-V1F1
Functional description Ethernet to V.35 protocol converter / self-learning Ethernet bridge

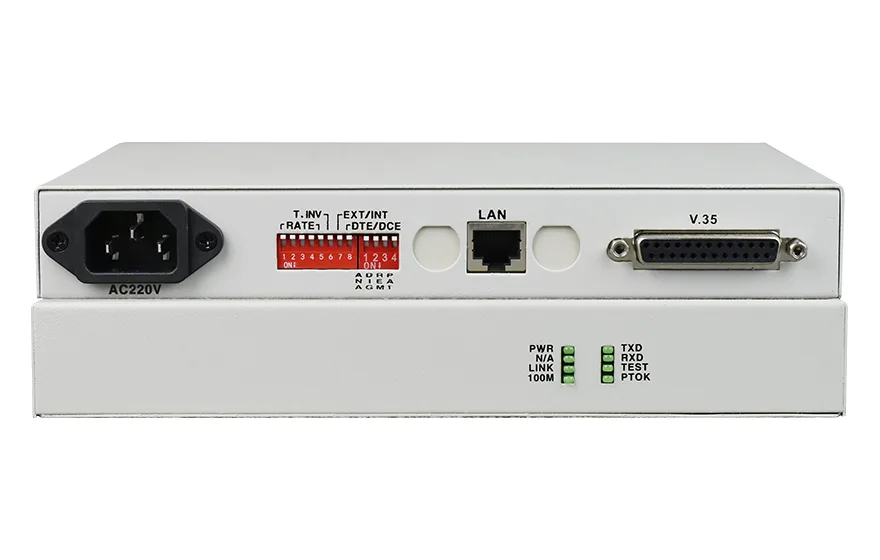

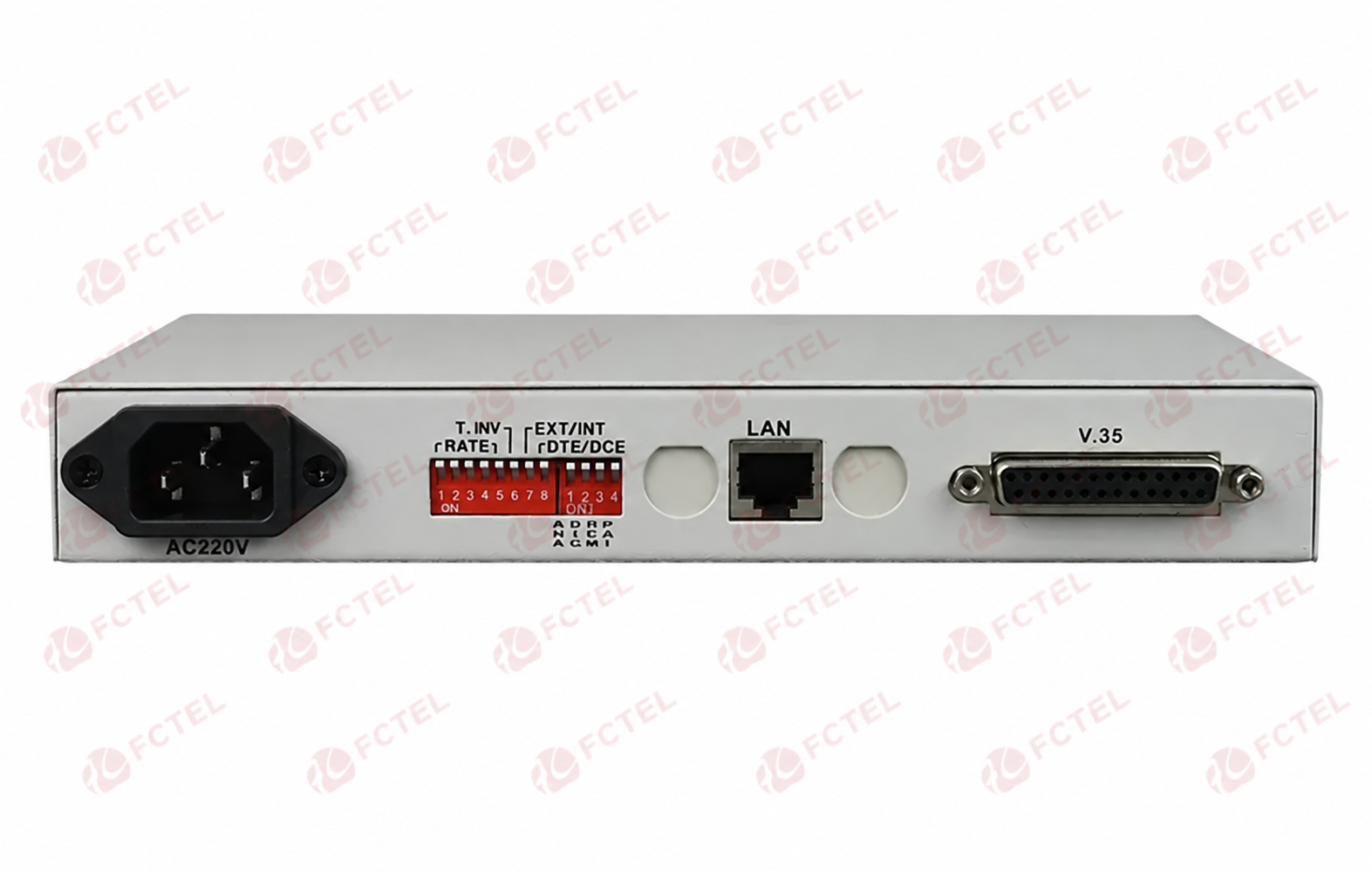

Interfaces One 10/100Base-T Ethernet port and one DTE/DCE V.35 port
Power supply AC 180–260 V; DC -48 V; DC +24 V
Power consumption ≤10 W
Dimensions 216 (W) × 140 (D) × 31 (H) mm, mini chassis
Operating temperature -10°C to +60°C (commercial); -40°C to +85°C (industrial)
Storage temperature -40°C to +85°C
Relative humidity 0–95%, non-condensing
MTBF >100,000 hours

Application

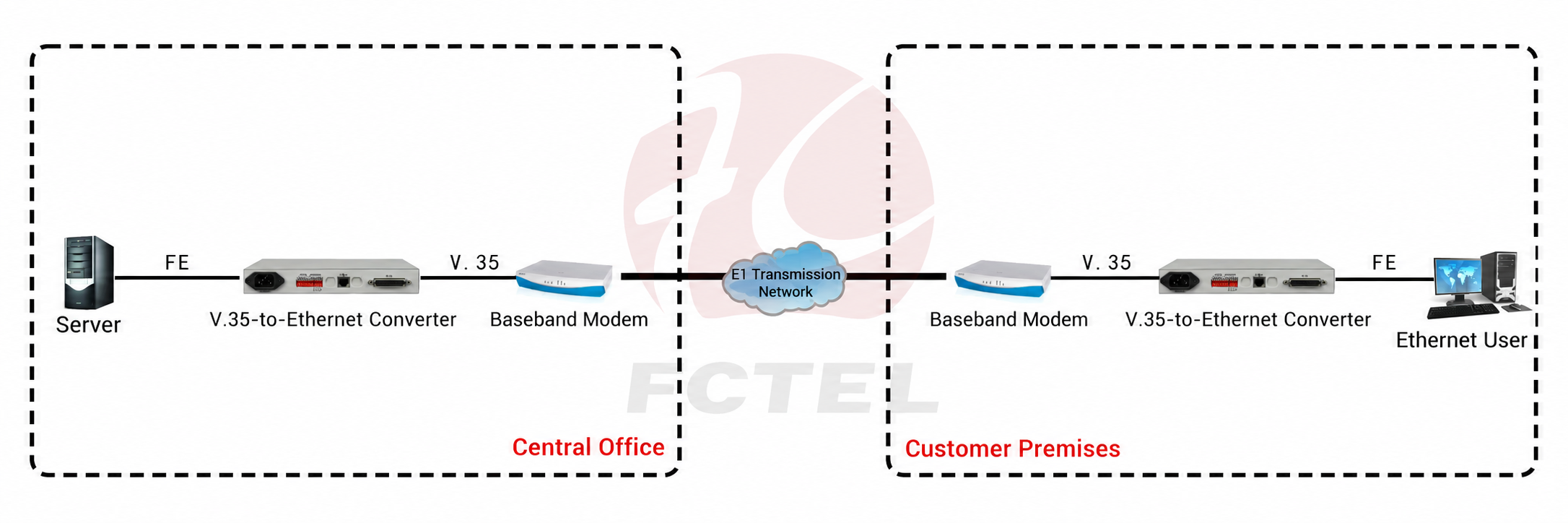

This topology shows a pair of FCC-V1F1 converters carrying Ethernet traffic through baseband modems and an E1 transmission network between a central office and customer premises.

FCC-V1F1 Ethernet to V.35 converter application diagram
