Unframed E1-RS530 interface Converter

View : 151
Type : V Serial Interface Converter
Description :

This device provides an economical digital access solution for E1 and Fractional E1 network services.

Overview

    This device provides an economical digital access solution for E1 and Fractional E1 network services. With an adapter cable, the device can connect to other DTE device, such as router, at data rates of 64Kbps to 2048Kbps.User data is placed into the E1 frame, using only the required number of timeslots, timeslot assignment is accomplished according to the data port speed and manual setting of DIP switches. GVE is widely used in communication network, both in WAN and LAN connection field.


Features

Based on self -copyright  IC

You can distinguish when a dying gasp or break when E1 E1 transmission intermediate signal is lost
While supporting adaptive 120Ω / balance and 75Ω / Imbalance impedance, no need to make settings
System through rigorous testing and practical verification, fully compliant with EIA-530, ITU-T G.703, G.704 and other recommendations; provides three loopback functions: E1 local loopback (ANA), RS530 loopback (DIG) make peer RS530 loopback (REM);

Pseudo-random code test function, namely to facilitate the opening of the line, when one can come with 2M BERT
DTE or DCE equipment support and interconnection; RS530 interface supports hot swap
RS530 clock work supports internal clock, external clock and line clock;
Optional AC 220V, DC -48V, DC + 24V, DC power supply no positive and negative points

Parameters

E1 interface
Interface Standard: comply with protocol G.703;
Interface Rate: 2048Kbps±50ppm;
Interface Code: HDB3;
Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm

RS530 Interface

Interface Rate: 2048Kbps

Interface character: match EIA-530

Connector: DB25 male/female (optional).

Interface type: DCE

Clock: G.703 resume clock, internal /RS530 external

Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specifications

Model

Model Number:FCC-E1fR530

Functional Description

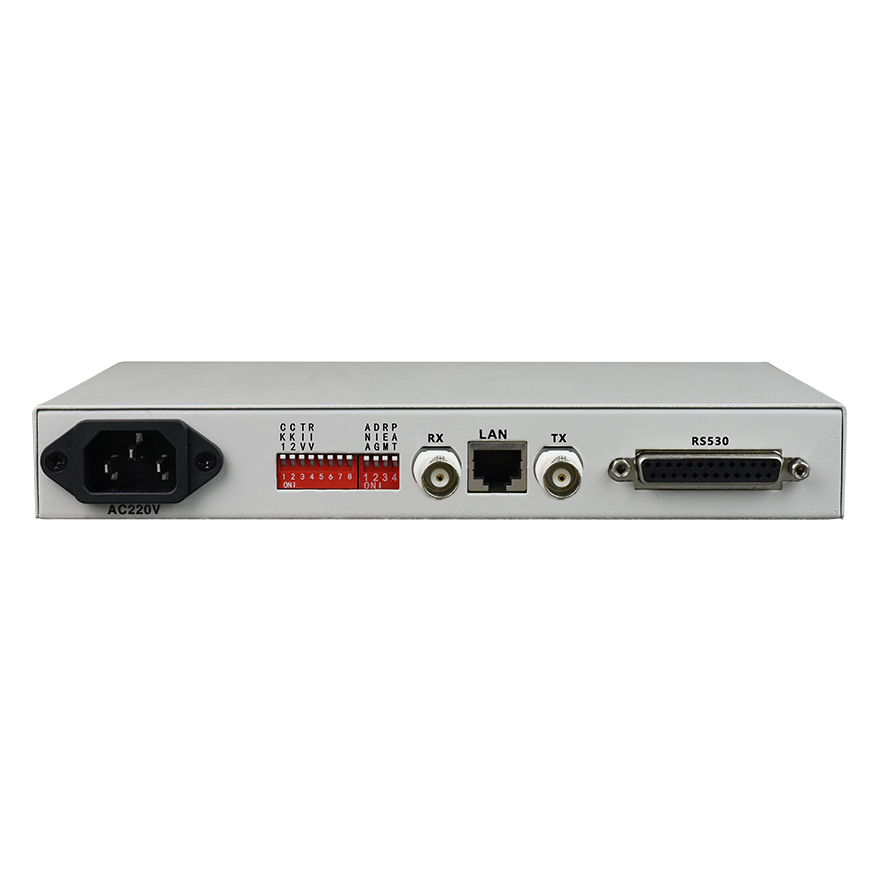

Unframed E1-RS530 (EIA-530) interface Converter

Port Description

One E1 interface, One RS530 interfaces

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V,DC30V, DC110V

Power consumption: ≤10W

Dimension

Product Size:  216X140X31mm (WXDXH)

Weight

1.2KG

Application
