The 10G OEO Fiber Repeater/Amplifier uses optical-electrical-optical (OEO) wavelength and wavelength division multiplexing (DWDM/CWDM) technology. With wavelength multiplexers, it can achieve single or multiple-channel long-distance transmission of optical signals within a single fiber. This enables balanced amplification, clock extraction, and reshaping of optical signals, significantly extending the transmission distance of the signals.
- Product Search Guide: space = AND, | = OR, ! = NOT
10G Optical Fiber OEO Repeater/Amplifier
Model
FCM-10G
Description :
The 10G OEO Fiber Repeater/Amplifier uses optical-electrical-optical (OEO) wavelength and wavelength division multiplexing (DWDM/CWDM) technology.
Overview
Features
● The device can achieve balanced amplification, clock extraction, and reshaping of optical signals.
● It ensures non-blocking transmission and exchange performance to guarantee higher security and stability of data transmission.
● It supports 10Gbase-SR/LR/ER/ZR optical interfaces to 10Gbase-SR/LR/ER/ZR.
● It enables transparent transmission of data with low latency.
● It supports wavelengths of 850nm, 1310nm, 1550nm, as well as CWDM/DWDM wavelengths specified by ITU-T.
● It supports extended frame sizes.
● It supports the DMI functionality of optical modules.
● It supports loopback testing functionality.
● It is compatible with SFP+/XFP interface optical modules.

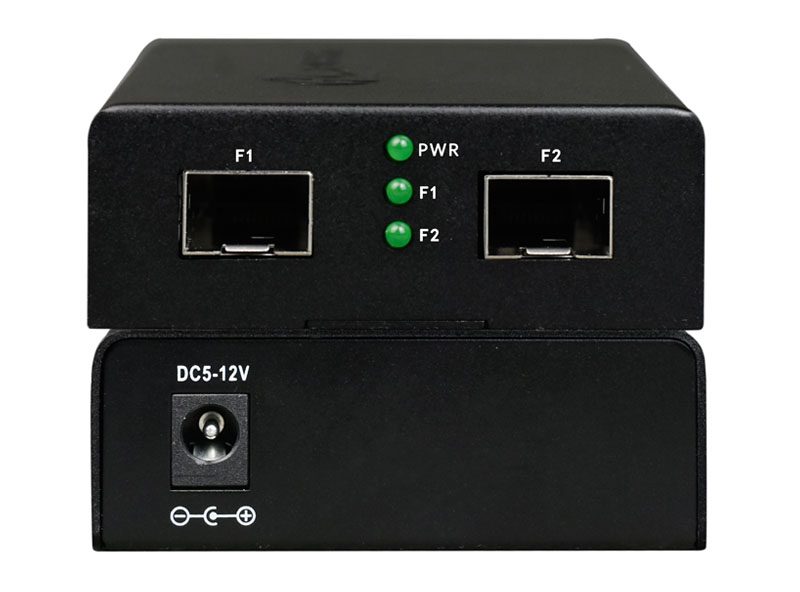

● It supports a wide voltage range of 5-12V power supply.

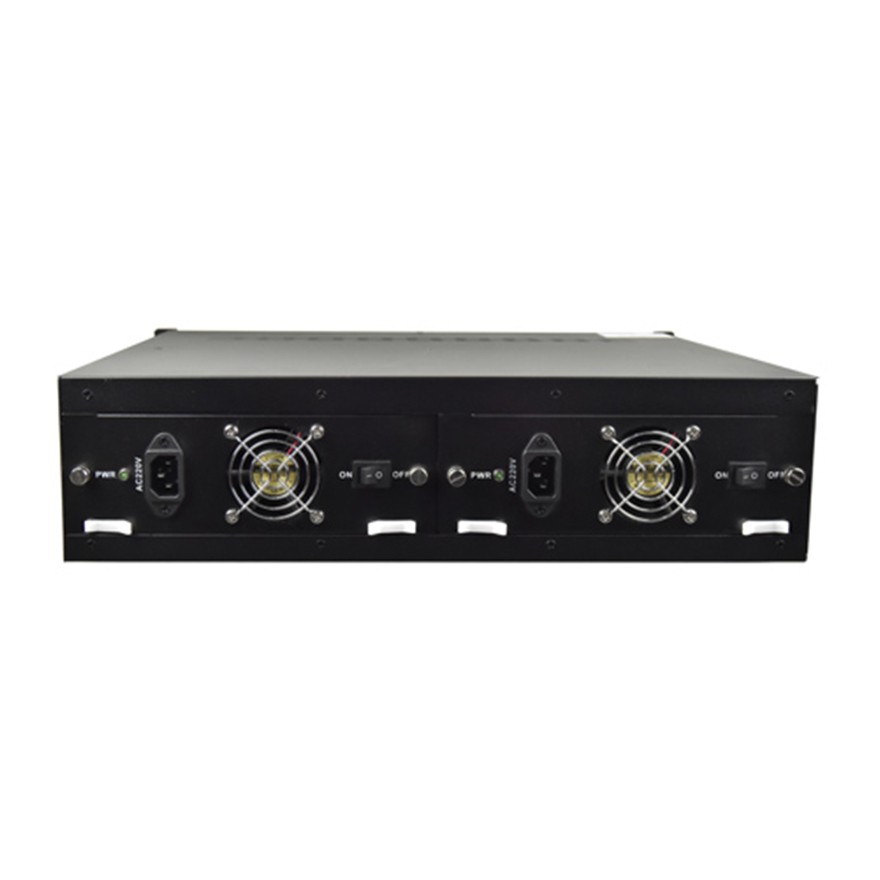

● It enables centralized power management in rack installations.
● It supports external power supply.
Parameters

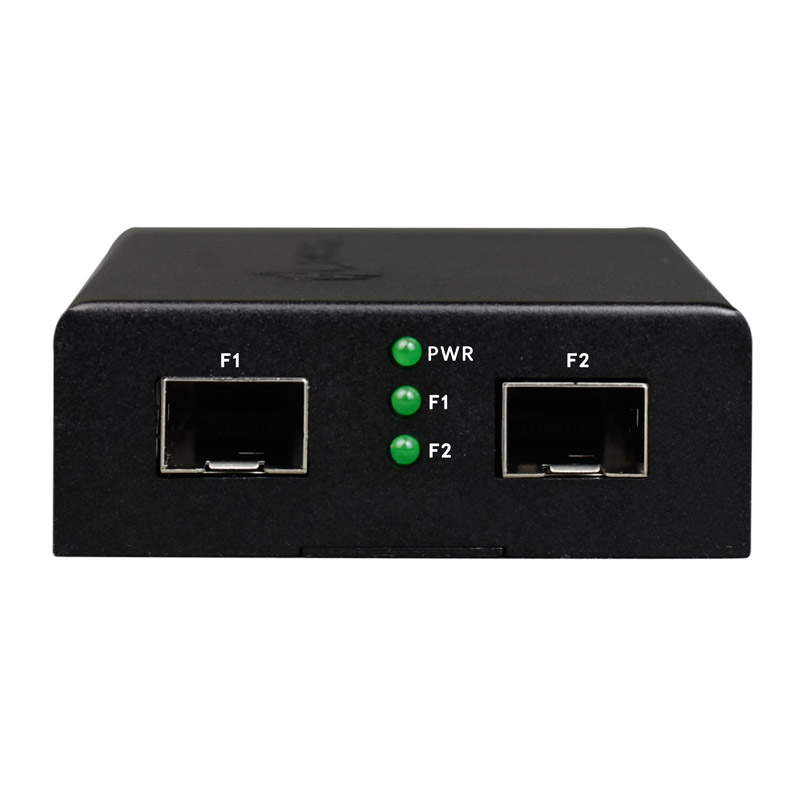

● 10G Optical Ethernet Port
Optical port: 2
Fiber interface: SFP+
Transmission Rate: 10Gbps
Wavelength: 850nm/1310nm/1490nm/1550nm
Fiber Type: Single-mode 9/125μm, Multiple-mode 50/125μm,62.5/125μm
Transmission distance: 550m ~ 80km
● Environmental Index
Working temperature: -20℃—+65℃
Storage temperature: -40℃—+85℃
Working humidity: 0%—95% (non-condensing)
MTBF: >100,000 hours
Specifications
|
Product Model |
FCM-10G |
|
Function Description |
Optical port 10Gbase-SR/LR/ER/ZR to 10Gbase-SR/LR/ER/ZR conversion |
|
Port Description |
2*10Gbase-SR/LR/ER/ZR |
|
Power Supply |
Power supply type: External Power Supply Power input voltage: AC100V ~ 240V 50/60Hz Machine working voltage: 12V1A Machine power consumption: 0.75W ~ 3W |
|
Product Size |
(L×W×H) 93*70*25mm Compact Type Body color: metal, black |
|
Weight |
0.25 KG/PCS |
Application
Related Products
Documentation and project verification — FCM-10G
Before ordering or wiring, confirm the exact model and configuration, interface pinout, optical or network compatibility, power input and installation conditions. Optional configurations are not interchangeable.
Browse FCTEL technical documents · Request the current model-specific datasheet and wiring diagram
