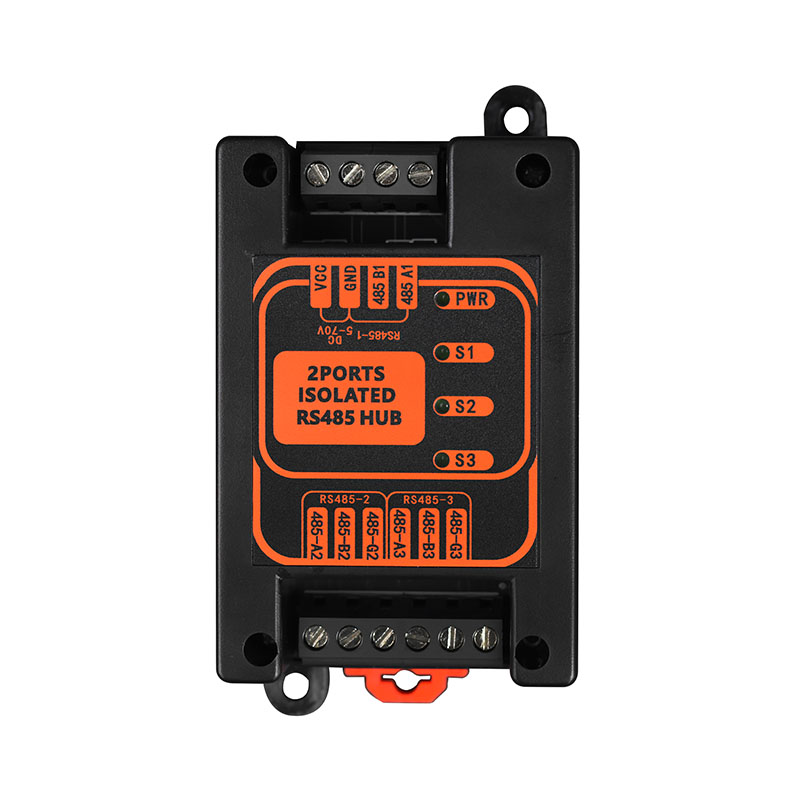

2 Port Opto-Isolated RS485 Hub

View : 469
Type : RS485 Hub
Description :

The 2-port RS485 isolation hub has 2 completely electrically isolated RS485 channels, each with independent RS485 transceivers and very low transmission delay.

Overview

The 2-channel RS485 isolation hub has 2 completely electrically isolated RS485 channels, each with independent RS485 transceivers and very low transmission delay. It complies with the RS485 standard and supports transparent and protocol-independent RS485 message transmission, making it suitable for various applications such as the Modbus protocol. The upstream port on the 2-channel RS485 isolation hub is an RS485 port for connecting monitoring devices such as PCs to the network.



Each channel of the 2-channel RS485 isolation hub has a 6kV lightning protection capability, optocoupler isolation, and an isolation voltage of up to 2.5KV. Each channel also has an independent ground, which ensures that if one RS485 bus is damaged, the devices on other RS485 buses will be protected. Each RS485 port can carry up to 128 nodes, and each RS485 port and power port has a 6kV lightning protection capability.


Isolated RS485 Hub

Features

The 2-port RS485 isolation hub is designed for industrial use, with complete communication isolation, stable and reliable performance, and a maximum transmission rate of up to 300Kbps.

Each RS485 channel has a 6kV lightning protection capability, 2.5KV optocoupler isolation, and comes with an independent shielded ground interface and LED indicators.

Automatic data flow control technology allows for automatic identification and control of data transmission direction.

It supports multi-node communication, with each RS485 channel capable of carrying up to 128 enhanced nodes, and a maximum transmission distance of 1500 meters.

Each RS485 channel is powered by an isolated voltage of 2500V DC-DC, with high-speed optocoupler isolation for communication signals, achieving electrical isolation between ports.

The RS485 interface has three levels of lightning protection, meeting the GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open circuit peak output voltage of 6KV, and internal resistance of 40 ohms standard.

It supports a wide range of 5-70V AC and DC power inputs, with a power interface having a 6kV lightning protection capability.

The power supply supports overload protection and reverse connection protection, compliant with industrial level 4 electromagnetic compatibility requirements.

Super strong lightning protection function: lightning strike protection, high voltage induction resistance, surge protection, etc.

Fanless design for efficient heat dissipation, reducing repair time.

It can be mounted on a rail or wall.

Working temperature: -40℃ to +85℃.

It has passed 100% burn-in testing.

Parameters

● Serial Interface

Standard

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial Port Interface:

RS-485 2 wires: A (corresponds to TX+) B (corresponds to TX-) GND

Physical Interface: 5.08mm pitch screw terminal



● Environmental Index

Operating Temperature: -40℃ to +85℃

Storage Temperature: -40℃ to +85℃

Operating Humidity: 0% to 95% (non-condensing)

MTBF: >100,000 hours

Specifications

Model

FCC-D2J

Function Description Industrial DIN-Rail 2-Port RS485 Hub
Port Description 2 isolated RS485 channels, 1 upstream isolated RS485 interface
Power Supply

DC5-70V input, power consumption <1W

Overload protection: supported; reverse connection protection: supported

Access terminal: 2-core 5.08mm pitch screw terminal

Dimensions

97mm (L) x 54mm (W) x 32mm (H)
Mounting method: 35mm rail mounting, wall mounting

size

Weight  0.072kg/pc

Application

application of Opto-Isolated RS485 Hub
