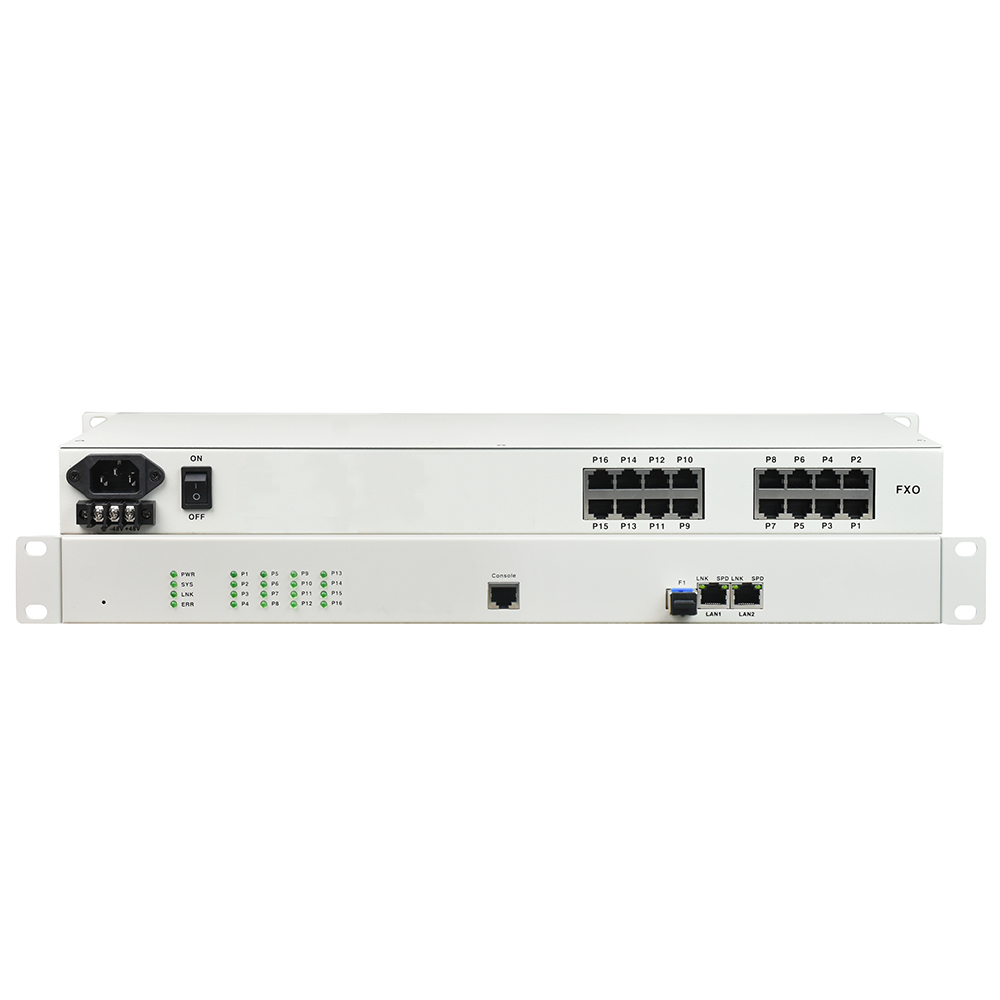

16 Port POTS FXO/FXS over Ethernet (IP) Converter

View : 504
Type : Voice over IP
Description :

This device encapsulates voice data in IP packets, supports UDP packetization, and realizes the conversion of 16 ports voice to 2 100M Ethernet.

Overview

This device encapsulates voice data in IP packets, supports UDP packetization, and realizes the conversion of 16 ports voice to 2 100M Ethernet. It can be used for communication within the same network segment or across different network segments through a router.


pots to ip

Features

The device provides a Console (RS232) management interface for easy installation and commissioning.

Ethernet interface rate is 10/100M, full duplex/half duplex adaptive.

It supports automatic recovery after a power failure or network disconnection.

It supports Ethernet packet disorder recovery and caching to resist network delay.

The frame length can be adjusted to balance bandwidth and transmission delay.

It’s based on hardware design, and it has a fast startup speed.

The voice port supports FXO/FXS/2-4 wire EM/2-4 wire audio/magnetic telephone interfaces. The FXO port is connected to the PBX, and the FXS port is connected to the user’s telephone.

It supports caller ID display, reverse polarity billing, and fax function.

The telephone interface supports the mutual dialing function of both sites.

It supports Console serial port network management and WEB network management methods.

Multiple power supply options are available: AC220V, DC-48V/DC24V, etc.; It supports dual power backup modes such as AC+DC; AC+AC; DC+DC.

Parameters

● 10/100M Ethernet Interface

Protocol: Complies with IEEE 802.3, IEEE 802.1Q(VLAN)

Rate: 10/100M adaptive, full/half duplex fully adaptive

MAC Address Table Capacity: Can learn 4096 MAC addresses

Physical interface: RJ45 socket, supports Auto-MDIX (cross/straight-through cable adaptation)



● FXS Phone Port

Ring voltage: 75V

Ring frequency: 25Hz

2-wire input impedance: 600Ω (off-hook)

Return loss: 20dB



● FXO Trunk Port

Ring detection voltage: 35V

Ring detection frequency: 17Hz-60Hz

2-wire input impedance: 600Ω (off-hook)

Return loss: 20dB



● E&M 2/4 Wire

E&M type: TYPE V

E wire maximum current: 22mA; saturation voltage: 3V

M wire constant current: 7mA; minimum detection current: 5mA

AD gain: 0dB

DA gain: 0dB

2/4 wire input impedance: 600Ω



● Magnetic Telephone Interface

Ring voltage: 75V

Ring frequency: 25Hz

2-wire input impedance: 600Ω (off-hook)

Return loss: 20dB



● Environmental Indicators

Operating temperature: -10℃~+60℃ (commercial grade) / -40℃—+85℃ (industrial grade)

Storage temperature: -40℃—+85℃

Operating humidity: 0%—95% (non-condensing)

MTBF: > 100,000 hours

Application

application of pots to ip
