30Voice over E1 PCM Mux | CAS Signaling

View : 1,205
Type : Voice E1 Multiplexer
Description :

This device is a kind of developed transmission equipment based on our company E1 line transmission the special-use VLSI.

Overview

This device is a kind of developed transmission equipment based on our company E1 line transmission the special-use VLSI. It has an alarm function.1~30channel voice optional, 16-time slot  signaling and CAS ( channel-associated signaling) can communicate with each other. The working is reliable, stable, and low power consumption, high integration, small size, and easy for installation and maintenance.

Product Photo

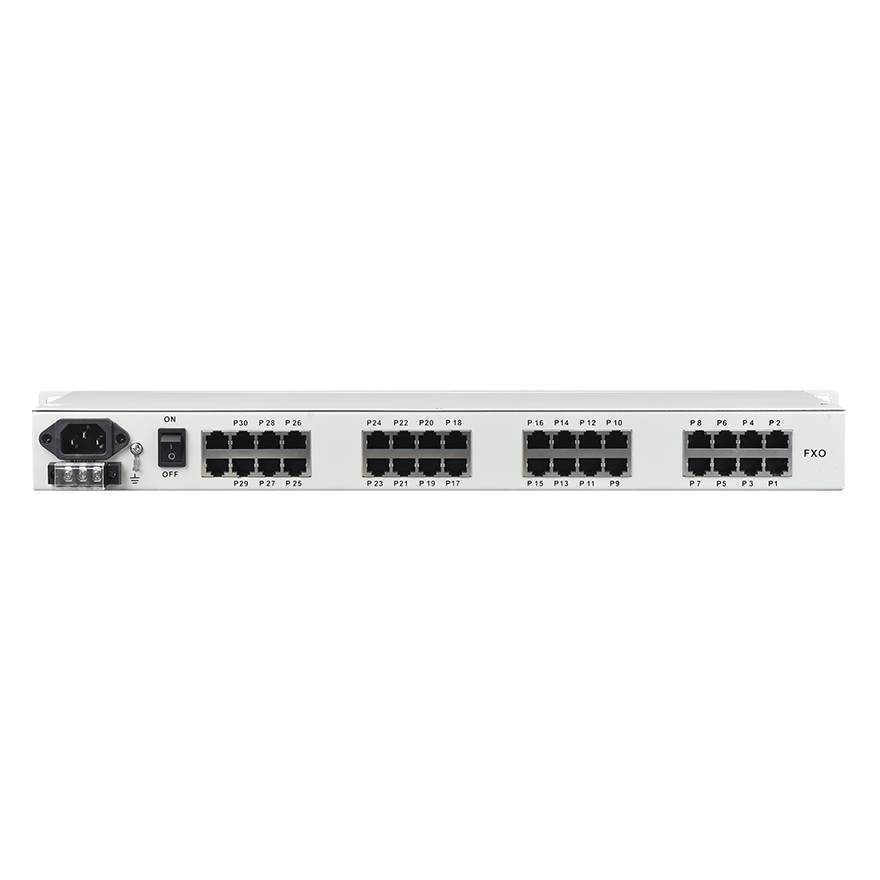

30-channel voice to e1 multiplexer 30-channel voice to e1 multiplexer

Features

Based on self-copyright IC

The machine is a single PCB design

E1 interface complies with G.703, adopts digital clock recovery and smooth phase-lock technology

CAS 16 time slot signaling can communicate with CAS(channel associated signaling)、E1 digital trunk cards and E1 interface PBX;

With the Console interface, can set the ABCD code by Console

1~30 channels voice access, support caller ID function;

Voice port supports FXO and FXS port, 2/4 wire audio interface, Magnet phone, FXO port docking with program-controlled switchboard, FXS port connected to the user’s telephone

The device supports independent SNMP network management(optional)

Multiple power mode options: AC220V, DC-48V / DC24V, etc;

Telephone interface with lightning protection, lightning reached IEC61000-4-5,Short circuit current wave 8/20μs,open-peak output voltage 6KV standards

Parameters

  • E1 Interface

 Interface Standard: comply with protocol G.703;
 Interface Rate:     n*64Kbps±50ppm;
 Interface Code: HDB3;

 E1 Impedance: 75Ω (unbalance), 120Ω (balance);

 Jitter tolerance: In accord with protocol G.742 and G.823

 Allowed Attenuation:     0~6dBm

  • FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

  • FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency:    17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

  • EM 2/4line

AD:     0dB

DA:     0dB

Two/Four-line Impedance:     600 Ohm

Return loss: 20 dB

 Working environment

Working temperature:      -10°C ~ 50°C

Working Humidity:      5%~95 % (no condensation)

Storage temperature:   -40°C ~ 80°C

Storage Humidity:   5%~95 % (no condensation)

Specifications

Model FCC-CS30
Functional Description 30*Voices to CAS( Channel Associated Signaling), can set the ABCD code by Console, One E1 interface
Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

Dimension Product Size: 485X138X45mm(WXDXH) 19 1U
Weight

2.4KG

Application

application of 30-channel voice to e1 multiplexer
