This voice multiplexer over fiber provides 30 channel FXO/FXS telephone, it supports 6U rack plug-in, and 6U rack equipment with SNMP network management.
- Product Search Guide: space = AND, | = OR, ! = NOT
30 Channel Phone Voice Multiplexer over Fiber
Model
FCP-O30/FCP-S30
Description :
This Voice Multiplexer over Fiber provides 30 channel FXO/FXS telephone, it supports 6U rack plug-in, and 6U rack equipment with SNMP network management.
Overview
Specifications
| Model | FCP-O30/FCP-S30 |
| Function | 30*POTS (FXO/FXS) over fiber |
| Power |
Power supply: AC180V ~ 260V; DC –48V; DC +24V Power consumption: ≤10W |
| Dimension | 19inch 485X200X45mm(WXDXH) |
| Weight | 2.4KG |
Features

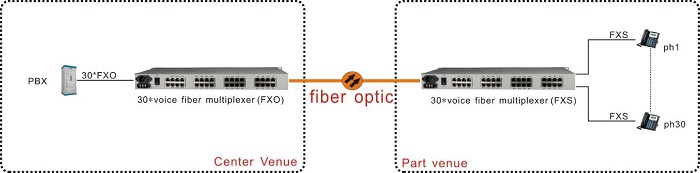

● The voice interface supports FXO/FXS, EM 2/4-Wire, 2/4-Wire Audio, Magnetic Telephone interfaces. The FXO port is connected to a PBX, while the FXS port is connected to a user’s telephone set;
● The FXO/FXS telephone interface supports Caller ID display, reverse polarity billing, and fax function;
● The telephone interface: mutual dialing between two sites;
● Transmission distance: up to 2-120Km without interruption;
● Telephone interface: lightning protection that complies with GB/T17626.5 (IEC61000-4-5) standards for short circuit current wave 10/700μs and can withstand peak output voltages of up to 6KV under open circuit conditions.
● Multiple power supply options are available, including AC220V, DC-48V, DC24V, etc.
Parameters
● Fiber
Optical port: 1 or 2
Optical Fiber: Single/Dual fiber
Fiber interface: FC/SC/ST/LC (SFP)
Wavelength: 850nm/1310nm Multi-mode; 1310nm/1550nm Single-mode
Relay-free transmission distance: 20~120Km
Typical transmit power:
Single mode1310/1550nm: ≥-9dB
Multimode850nm: -18dBm
Multimode1310nm: -25dBm
Receive sensitivity range: -28dBm~- 40dBm
Physical Interface: RJ45 Support Auto-MDIX
● FXS Phone Port
Ring voltage: 75V
Ring frequency: 25HZ
2-wire Impedance: 600 Ohm (off-hook)
Return loss: 40 dB
● FXO Trunk Port
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
2-wire Impedance: 600 Ohm (off-hook)
Return loss: 40 dB
● EM 2/4-Wire
AD: 0dB
DA: -3.5dB
2/4-wire Impedance: 600 Ohm
Return loss: 20 dB
● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Questions You May Ask
Q: How long is the lead time after placing an order?
A: The specific lead time will vary depending on the quantity and the product. Generally, it will be 3 to 5 days.
Q: What is the MOQ?
A: For most products we support sample order.
Q: Can the logo be customized?
A: Yes, OEM is supported.
Q: How can I get a quote?
A: After you submit your inquiry and confirm the product specifications, we will provide you with a detailed quote as soon as possible
