4Voice+FE Fiber Multiplexer | RJ11 Type
Model
FCP-O4F1b/FCP-S4F1b
Description :
This device provides 4 channels telephone and 2 channels 10/100M Ethernet interface (Wire Speed 100M).
Overview
Specifications
| Model | FCP-O4F1b/FCP-S4F1b |
| Function Description | 4*telephone, 1*100 Mbps Ethernet, 1*Fiber interface |
| Power Supply |
Power supply: DC5-12V Power consumption: ≤10W |
| Dimension | 90*104*31mm (WXDXH) mini type |
| Weight | 0.6KG |
Solution
Features
● The local end can display the fiber connection status of the remote device;

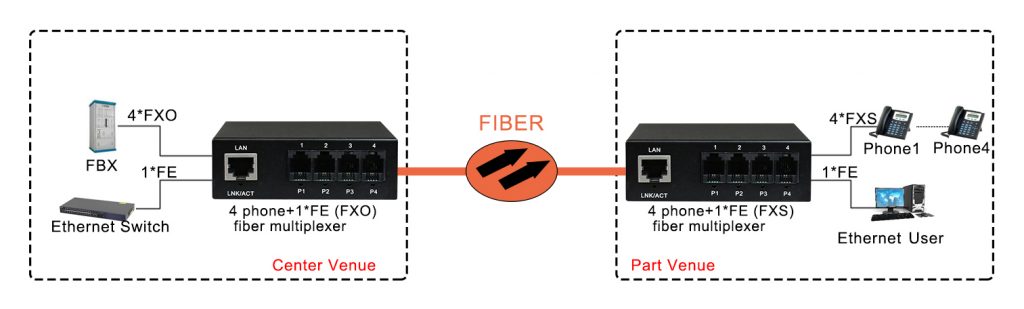

● The voice interface supports FXO/FXS port. The FXO port is connected to a PBX, while the FXS port is connected to the user’s telephone set;
● The FXO/FXS telephone interface supports Caller ID display, reverse polarity billing, and fax function;
● The telephone interface supports mutual dialing between two sites;
● Ethernet interface can support AUTO-MDIX (crossed line and straightly connected line self-adaptable);
● It comes with an external AC220V/5-12V power adapter, and can also be used with an external DC-48V/5-12V power adapter;
● The telephone interface is equipped with lightning protection that complies with GB/T17626.5 (IEC61000-4-5) standards for short circuit current wave 10/700μs and can withstand peak output voltages of up to 6KV under open circuit conditions.
Parameters
● Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5/125um single mode fiber, attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9/125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
● Ethernet Interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Table Capacity: 4096
Connector: RJ45, support Auto-MDIX
● FXS Phone Port
Ring voltage: 75V
Ring frequency: 25Hz
2-wire Impedance: 600 Ohm (off-hook)
Return loss: 40 dB
● FXO Trunk Port
Ring detect voltage: 35V
Ring detection frequency: 17Hz-60Hz
2-wire Impedance: 600 Ohm (off-hook)
Return loss: 40 dB
Return loss: 20 dB
● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
