1. What LFP actually passes through
A basic industrial fiber media converter translates Ethernet frames between a copper port and a fiber port. Consider a point-to-point link with a switch at the local end and a PLC at the remote end. If the remote copper cable is removed, the local converter may still maintain an apparently healthy copper link to its switch. Without another signal, the switch sees its port as up even though traffic can no longer reach the PLC. That mismatch delays alarms and may keep a failed path in service.
Link Fault Pass-through is intended to reduce that blind spot. The converter detects a loss of link on one interface and deliberately changes the link state on the associated interface. The neighboring device can then record a port-down event, raise an alarm, or let a higher-level redundancy mechanism react. This is a physical-link relationship. It does not inspect IP reachability, Modbus transactions, VLAN membership, application response, or process values.
This boundary matters during diagnosis. A frozen PLC, duplicate IP address, incorrect VLAN, broadcast loop, or blocked firewall rule may leave both physical links up. LFP cannot identify those conditions. Conversely, when LFP forces a port down, that event does not prove that the fiber itself has failed. The original cause could be a disconnected copper cable, loss of power at a remote converter, an incompatible optical pair, or a genuinely damaged fiber. Always correlate link LEDs with switch logs, optical measurements, and one-change-at-a-time tests.
2. Confirm model support and propagation direction
FCTEL publishes a DIN-rail industrial gigabit media converter with one copper port, one fiber port, and an LFP option selected by a DIP switch. Its public product information states that the optical-port alarm can be passed to the copper side. That statement is useful for this specific product family, but it must not be generalized to every media converter. Other models can implement one-way fault propagation, bidirectional propagation, remote-fault signaling, or no LFP function at all.
Before touching a switch, record the complete product model, hardware revision, power arrangement, current DIP positions, optical type, and the device connected at each end. Read the matching manual to confirm which switch position enables LFP, whether power must be cycled, and which failed port affects which opposite port. If two converters form the link, document both units separately. An enabled local unit and a disabled remote unit can produce an incomplete or confusing fault indication.
The peer device also matters. A link between two identical converters may behave differently from a link between a converter and a managed switch with a fixed optical port or SFP module. Auto-negotiation, far-end fault indication, and port shutdown handling vary by interface. Treat LEDs as observations rather than final conclusions. The acceptance record should include the switch port status and event log in addition to the indicators on both converters.
3. Draw the four physical segments before configuration
Represent the path as four observable segments: the local host-to-converter copper cable, the local optical interface, the remote optical interface, and the remote converter-to-host copper cable. Add the speed, duplex mode, negotiation setting, fiber type, connector type, wavelength pair, and single-fiber or dual-fiber arrangement. This drawing prevents a common mistake: changing LFP while an unrelated media mismatch already exists.
Capture a healthy baseline before enabling the feature. Save the managed switch port state, MAC address table, error counters, and recent link events. Confirm that traffic passes in both directions. Photograph or record the normal LEDs. If the site uses a single-fiber bidirectional optical pair, verify the complementary wavelengths at both ends. If it uses dual fiber, confirm transmit-to-receive polarity. Clean connectors according to the maintenance procedure rather than repeatedly unplugging and reinserting contaminated ferrules.
Perform the configuration in an approved maintenance window or on an isolated test bench. Stop or protect any process that depends on the link. Set only the documented LFP DIP switch and apply the specified restart procedure. After the change, first verify the no-fault condition: copper and optical links should establish correctly, application traffic should pass, and neither switch port should oscillate between up and down.
4. Validate LFP with a four-fault matrix

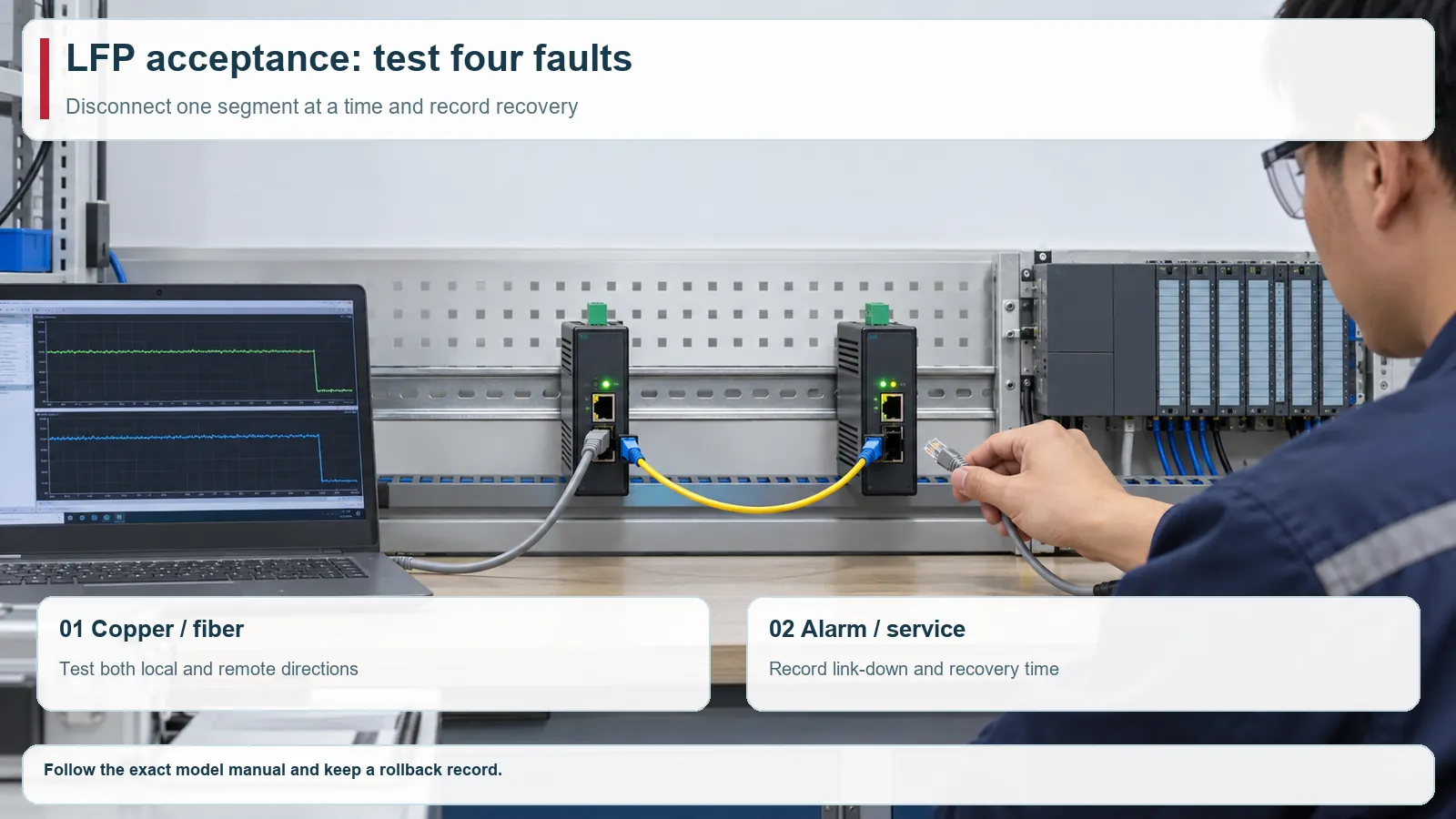

A useful acceptance matrix contains at least four controlled failures. First, disconnect the local copper cable. Second, open the fiber link using the approved safe procedure. Third, disconnect the remote copper cable. Fourth, remove power from the remote converter. Create only one fault at a time. For each case, record the original fault location, the detection at the nearest converter, the state shown by the far converter, the adjacent switch or PLC port state, the alarm received by operations, and the time required for the service to recover.
Do not write a universal expected result before checking the installed model. A device that passes only an optical fault toward its copper port will not behave like a converter that associates failures in both directions. Some optical implementations use additional far-end signaling, while others can only detect local receive loss. The purpose of the matrix is to make the actual behavior explicit and repeatable, rather than to force every device into the same LED pattern.
After restoring each segment, wait long enough to confirm a stable link. Review error counters and repeated link events. A link that recovers but continues to flap is not accepted. If optical power is near a receiver limit, temperature or connector movement may create intermittent symptoms that resemble LFP problems. Measure or retrieve optical levels where the product supports it, and use sectional replacement or an optical time-domain reflectometer when the physical path remains uncertain.
5. Coordinate LFP with redundancy and monitoring
LFP can provide a cleaner physical event to an upstream switch, but it does not choose an alternate path. Ring protection, spanning tree, routing, controller redundancy, or the application itself still decides how traffic moves after a failure. If a link-down event participates in STP, RSTP, MSTP, ERPS, or another protection design, test the combined behavior in a controlled environment. Two independent detection mechanisms can interact and cause repeated transitions if timers and failure boundaries are poorly understood.
Separate monitoring into three layers. A physical link alarm indicates that a port or media segment is unavailable. A device-reachability alarm indicates loss of management or power. An application health check identifies a service that has stopped even while the link remains up. Keeping these signals distinct helps technicians distinguish a fiber break, converter power loss, loose copper cable, configuration error, and unresponsive PLC. It also prevents an LFP alarm from being described as proof of an application failure.
Acceptance evidence: exact converter models and revisions; both DIP positions; copper and fiber identifiers; baseline switch counters; four controlled fault cases; alarms and timestamps; recovery behavior; and a documented rollback. Repeat the test whenever either converter is replaced, an optical module changes, a switch port is reconfigured, or the network redundancy design is modified.
6. Common mistakes and a practical field sequence
Frequent mistakes include enabling LFP on only one end without understanding the resulting direction, moving DIP switches while the device is energized contrary to its instructions, failing to record the original switch positions, and treating LFP as a ring protocol. Another mistake is to see a forced port-down state and immediately replace the fiber. The event identifies a linked failure condition; it does not independently locate the defective component.
A disciplined field sequence is short. Confirm the exact product documentation. Map the four segments. Capture the healthy baseline. Configure both ends as designed. Verify normal traffic. Introduce one fault at a time. Compare local and remote observations. Restore the link and confirm stability. Finally, connect the physical alarms to the operating procedure and redundancy design. This sequence turns LFP from an unexplained DIP switch into a testable maintenance function.
