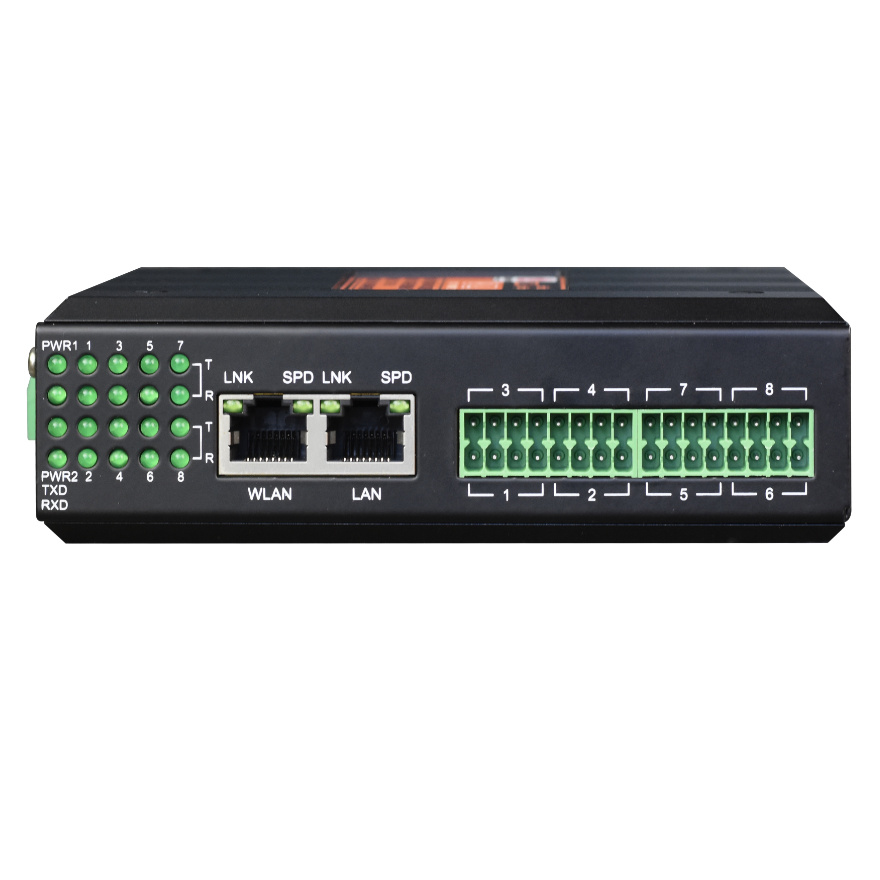

Model FCT-081625

Description :

Overview

This industrial rail-mounted 1-16-channel DI/DO/AI/AO server is IP40 protection grade and is a server that enables DI/DO/AI/AO devices to immediately have networking capabilities. This product supports 1-16-channel DI/DO/AI/AO to 2-channel 100M Ethernet, and can be installed in 35mm rail and wall-mounted styles to meet the needs of different application sites.

This server supports a variety of network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP protocols; it has complete management functions, supports access control, fast configuration, online upgrades, etc.; supports Modbus TCP; supports WEB access methods. In addition, the management configuration tool based on the Windows platform provided can guide users to manage and configure the device step by step.

Parameters

Product Number	FCT-081625
Product Function Description	Transmit 16-channel DI/DO/AI/AO on Ethernet, industrial rail type
Service Port Description	16DI/DO/AI/AO Interface; 2100M Ethernet port

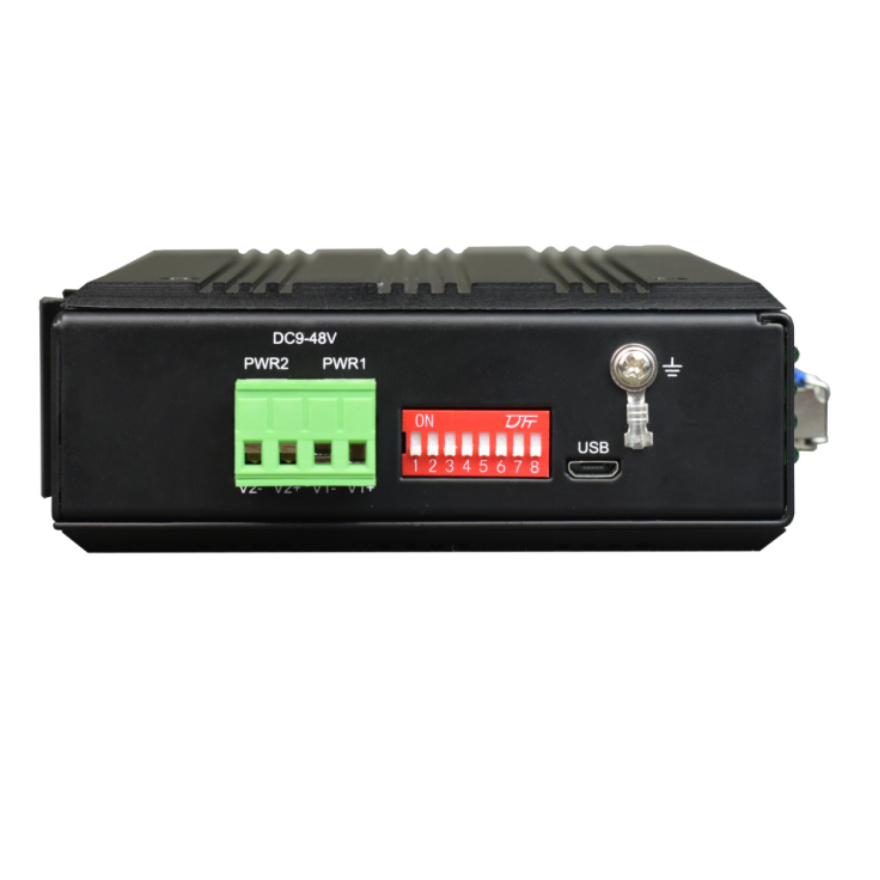

Power Supply	Redundant dual power supply input DC9-55V or AC7-43V, power consumption <5W Overload protection: support; Reverse polarity protection: support; Redundant protection: support Access terminal: 4-core 5.08mm pitch plug-in terminal
Product Size	Shell: IP40 protection grade, aluminum alloy material Dimensions: 133mm(L) x 120mm(W) x 40.0mm(H) Installation method: guide rail installation, wall-mounted installation
Weight	0.65KG/PCS

● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 support Auto-MDIX

● Dry contact Interface

Output interface type:

Dry contact:

signal relay dry contact output; 30VDC/0.5A, maximum switching frequency: 50HZ

Pulse quantity (wet contact):

MOS relay output, 245VDC/0.12A, 0-VCC (VCC is the power supply voltage of this machine)

Response time:

Dry contact output: <1.2ms; wet contact output <0.6ms

Switch signal input:

Dry contact:; Wet contact: NPN&PNP

Output surge protection:

Dry contact output: None;

Wet contact output: TVS+solid discharge tube protection

● Current Analog

Input and output range: 0~20mA (including 4~20mA)

Resolution: 12 bits

Sampling rate: 20K times/second

Time delay: <0.1ms

Maximum load capacity: 600Ω

Input resistance: 125Ω

Accuracy: 0.2% (normal temperature)

● Voltage Analog

Input and output range: 0~10V (including 0~5V), -5V-+5V

Resolution: 12 bits

Sampling rate: 20K times/second

Time delay: <1ms

Maximum load capacity: 600Ω

Input resistance: 100ΚΩ

Accuracy: 0.2% (normal temperature)

● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Application

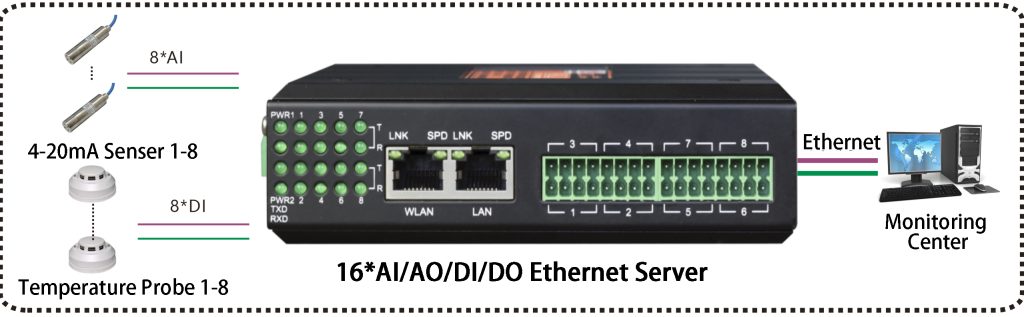

Case 1: Single Case Application

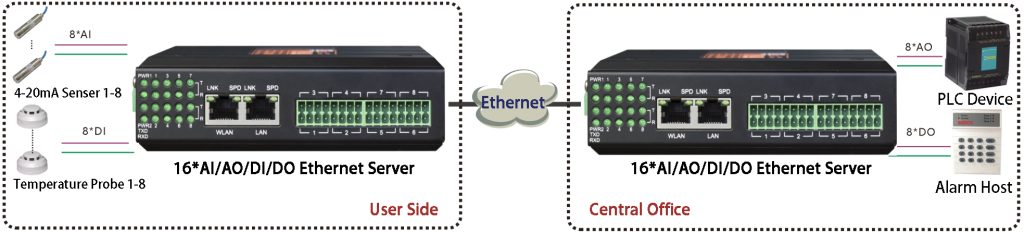

Case 2：Paired Device Application

Features

● Adopts ARM Cortex -M4, main frequency 240MHz processor;

● Supports 2*100M Ethernet, two ports are switch ports, Ethernet supports 10/100Base-T(X) adaptive Ethernet interface; supports auto-negotiation (Auto-Nego Full & half duplex), supports automatic cross-line detection (MDI/MDIX);

● Supports up to 16 DI/DO/AI/AO, with 2 channels as a unit, and arbitrarily configures DI/DO/AI/AO, such as 4 DI+4 DO+4 AI+4 AO, or 8 DI+8 AI, each channel has an indicator light status indication, the first 1-8 dry contact or analog channels can be replaced with 1-4 RS232/422/485, and can use Modbus protocol for remote acquisition, control, and self-polling acquisition, and can also be connected to the configuration screen PLC as a slave;

● Analog input supports 12-bit resolution output, 2‰ accuracy, and supports 2-wire, 3-wire, and 4-wire sensor access; supports 0-20mA, 4-20mA, 0-5V, 0-10V, -5V-+5V 5 types of analog input signals.

● The dry contact input supports dry interface or NPN, PNP transistor mode, and the dry contact output supports dry contact or 24V MOS tube mode;

● The optical interface supports three optical fiber transmission modes: multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber. SC/ST/FC/LC interfaces are optional.

● Supports Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes;

● Supports Windows configuration tools, serial ports, WEB and other configuration forms, and supports SNMP network management;

● Supports local and remote system firmware upgrades;

● Supports a wide range of 9-55V AC and DC power input; supports internal isolation, redundant dual power input; power supply supports overload protection and anti-reverse connection protection;

● Meets the requirements of industrial level 4 electromagnetic compatibility; Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.;

● No fan, efficient heat dissipation, reducing repair time; anodized aluminum alloy shell, IP40 protection level, can withstand the test of harsh environments;

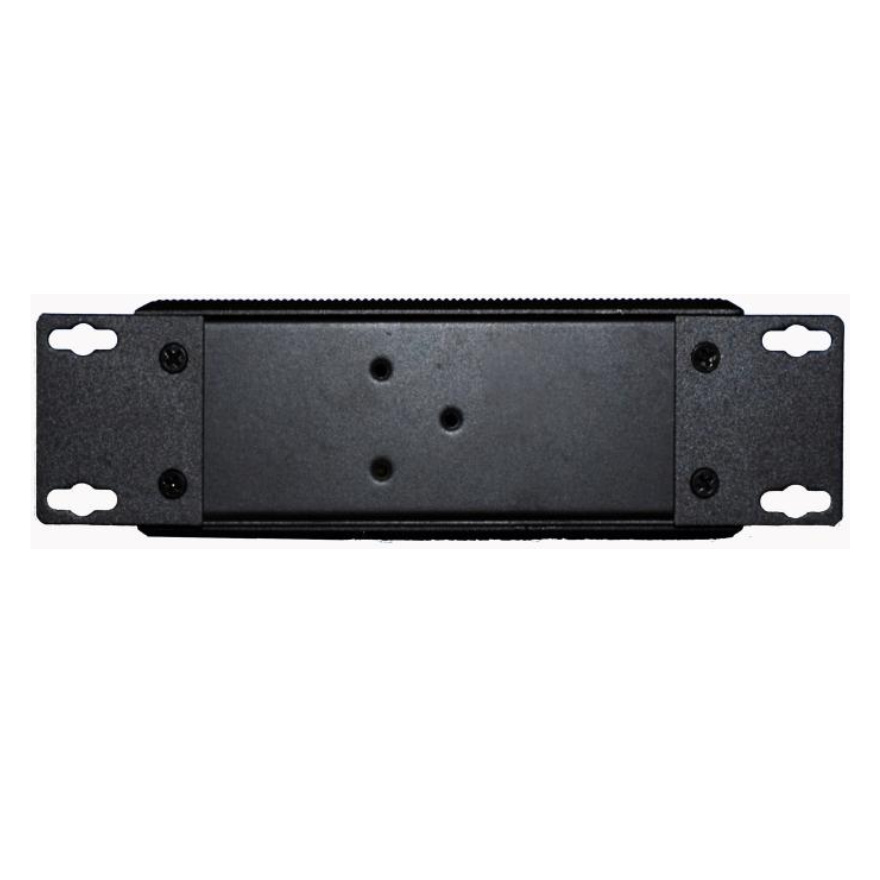

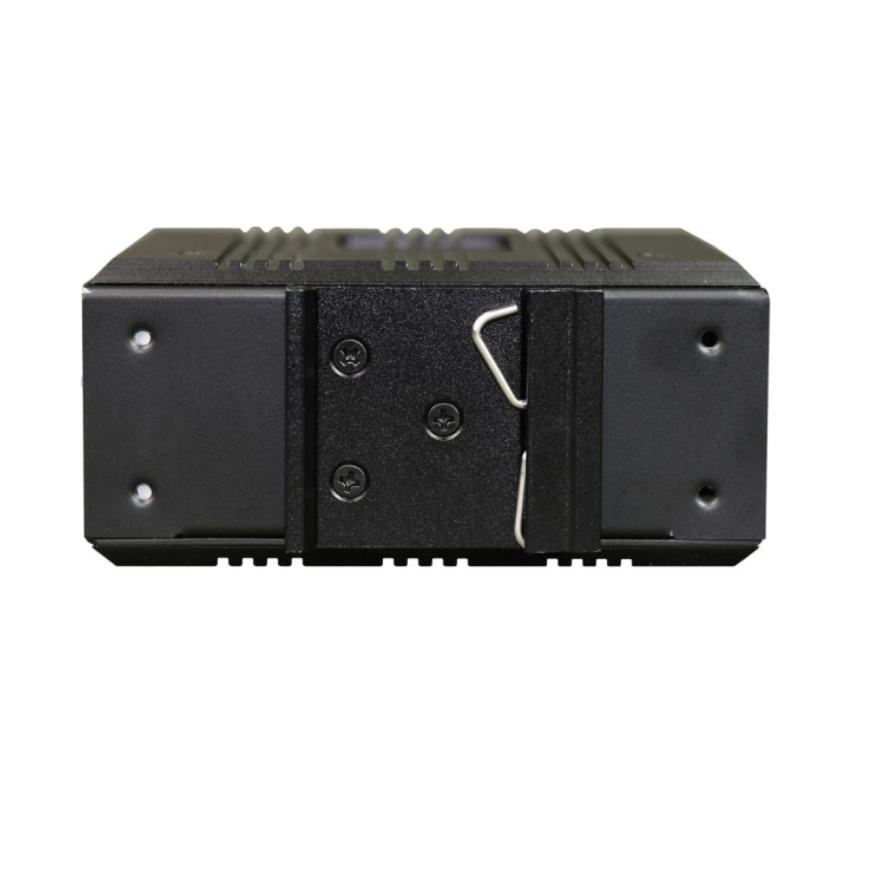

● Guide rail or wall mounting;

● Wide temperature type: working temperature -40℃~ +85℃;

● All models have passed 100% oven test;
