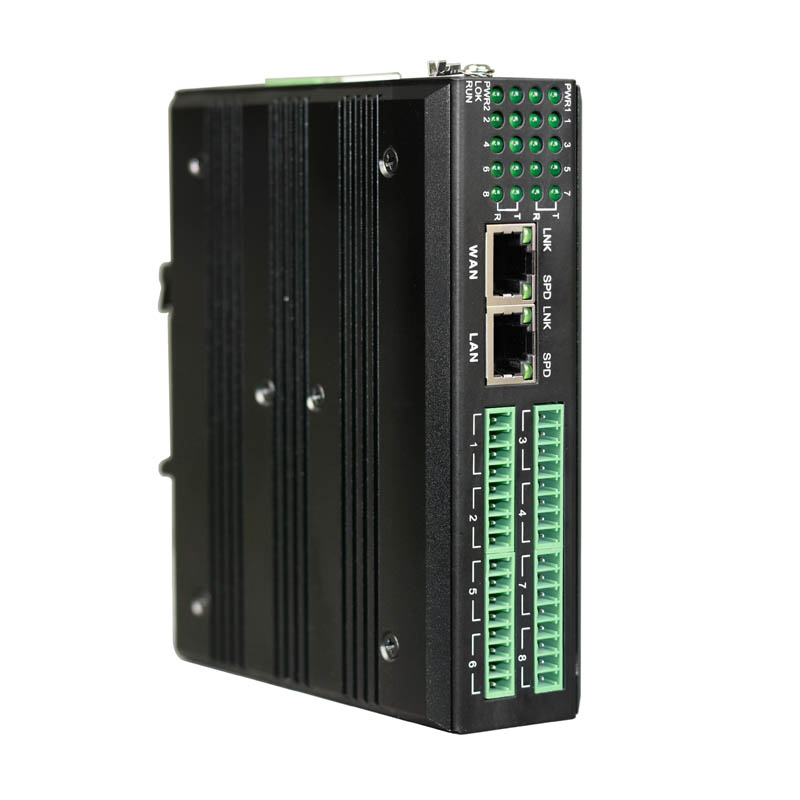

16 Channel Dry Contact over Ethernet Converter (with WEB and SNMP Management)

View : 126
Type : Dry Contact over Ethernet
Description :

This product supports 16 channels of DI or DO, DI supports dry contact input mode, and DO supports dry contact output and pulse output.


This industrial rail-type dry contact server is IP40 protection grade. It is a dry contact network server that can immediately enable dry contact devices to have networking capabilities. This product supports 16 channels of DI or DO, DI supports dry contact input mode, and DO supports dry contact output and pulse output. It can convert dry contact to 2*100M Ethernet ports to meet the needs of dual IP and dual MAC addresses/multi-network management or network backup, and it can be installed on 35mm rail or wall.


The dry contact server supports multiple network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, SNMP, Telnet, SSH and other protocols; it has complete management functions, supports access control, quick configuration, online upgrade, etc., supports Modbus TCP, and other working modes; support WEB access mode. In addition, the management and configuration tool based on the Windows platform is provided to realize the immediate networking of the dry contact devices through simple settings. The interface design of the network management system is friendly, and the operation is simple and convenient, which can bring you a good user experience.


The hardware adopts fanless, low power consumption, wide temperature and wide voltage design, it has passed strict tests in line with industry standards and can adapt to the industrial field environment with strict requirements for EMC.


Using ARM 9 processor, main frequency 300MHz processor, running Linux OS Openwrt system;

● Support 2*10/100M adaptive electrical Ethernet interface, provide dual IP and dual MAC addresses, to meet the needs of multi-network management or network backup;

● Ethernet supports 10/100Base-T adaptive Ethernet interface; supports auto-negotiation (Auto-Nego Full&half duplex), supports automatic cross-line detection (MDI/MDIX);

● Support a total of 16 channels of dry contact DI and DO; DI supports dry contact input mode, DO supports dry contact output and pulse output (wet contact) two modes;

● Support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes;

● Support SNMP protocol Get and Set commands to read and set the input and output status of the dry contact;

● Each channel has an indicator light indicating the dry contact on and off; the input dry contact is automatically detected on and off;

● The dry contact input interface has its own filter to filter out the interference pulse and ensure the stable output of the dry contact signal at the output terminal;

● Complete the transparent conversion from Modbus-RTU to Modbus-TCP, and realize the reading of dry contact device data through the network; support gateway and cross-routing communication; support network interruption and automatic recovery connection function;

● Support standard TCP/IP SOCKET application program access, TCP supports multiple connections, satisfying the simultaneous monitoring or management of dry contact devices by less than 4 users;

● UDP mode supports stand-alone or multi-machine communication, satisfying multiple users to monitor or manage dry contact devices at the same time;

● Support Windows configuration tools, SSH, Telnet and WEB and other configuration forms, and support SNMP network management;

● Support local and remote system firmware upgrades;

● Support a wide range of 9-55V AC and DC power input; support internal isolation, redundant dual power input;

● The power supply supports overload protection and anti-reverse connection protection; it meets the requirements of industrial electromagnetic compatibility level 4;

● Super lightning protection function: lightning protection, anti-inductive high voltage, anti-surge, etc.; no fan for efficient heat dissipation, reducing repair time;

● Anodized aluminum alloy shell, IP40 protection grade, can withstand the test of harsh environment; guide rail or wall-mounted installation;

● Wide temperature type: working temperature -40℃~ +85℃;

● All models have passed 100% burn-in test.


● 10/100M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100M adaptive, full/half duplex adaptive

MAC address table: 4096 MAC addresses can be learned

Physical interface: RJ45 support Auto-MDIX


● Dry Contact Interface

Output interface type:

Dry contact: signal relay dry contact output;

Pulse amount (wet contact):

Optical MOS relay output, 0-VCC (VCC is the power supply voltage of the machine)

Response time:

dry contact output: <1.2ms;

wet contact output <0.6ms

Dry Contact signal

dry contact output 30VDC/0.5A;

wet contact output: 245VDC/0.12A

Maximum dry contact frequency: 50HZ

Output surge protection: dry contact output: none; wet contact output: TVS+solid discharge tube protection


● Environmental Index

Working temperature: -40℃—+85℃

Storage temperature: -40℃—+85℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours


Product Number


Function Description

Transmit 16*Dry Contact on Ethernet, Industrial Rail Type

Port Description

16*Dry Contact interface; 2*100M Ethernet port

Power Supply

Redundant dual power supply input DC9-55V or AC7-43V,

power consumption <5W

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 133mm(L) x 110mm(W) x 40.0mm(H)

Installation method: guide rail installation, wall-mounted installation

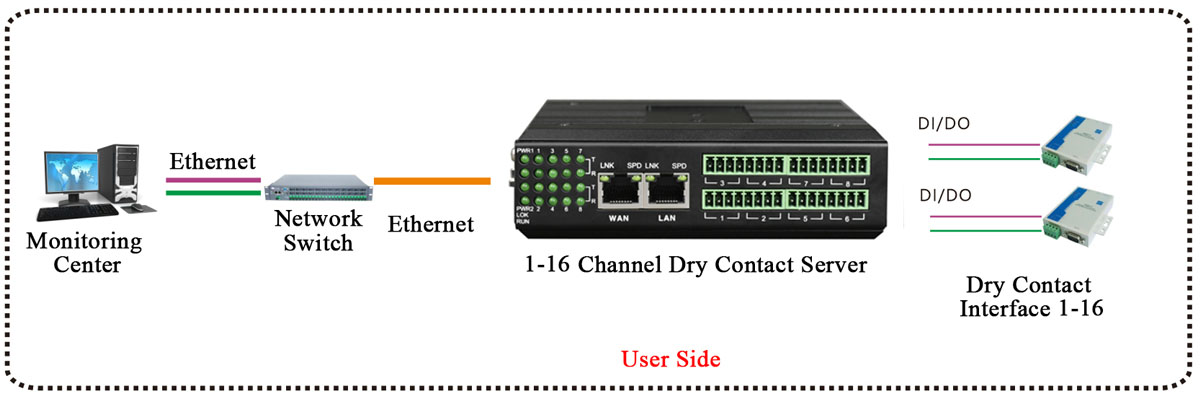

application of dry contact over ip

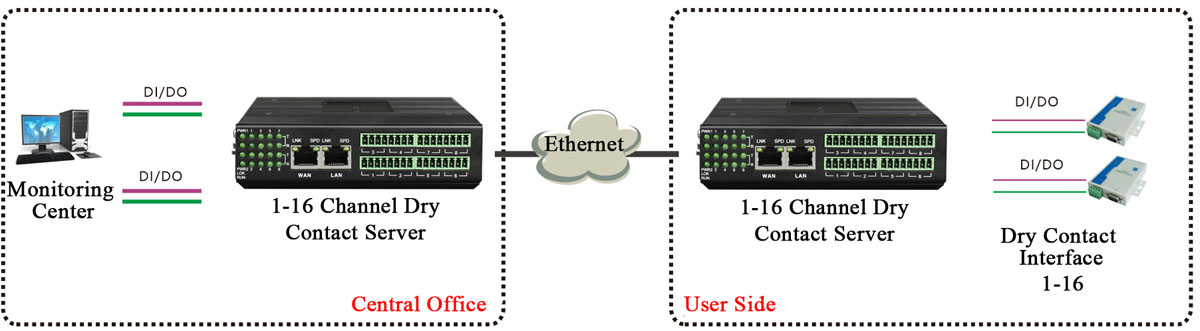

application of dry contact over ip
