This device provides 4 ports 10/100M Fast Ethernet and 2 ports 100Base-FX. The 2 100Base-FX interfaces serve as the primary and backup fiber ports, ensuring uninterrupted operation. The 4 Ethernet interfaces function as switch ports and support VLAN partitioning.
- Product Search Guide: space = AND, | = OR, ! = NOT

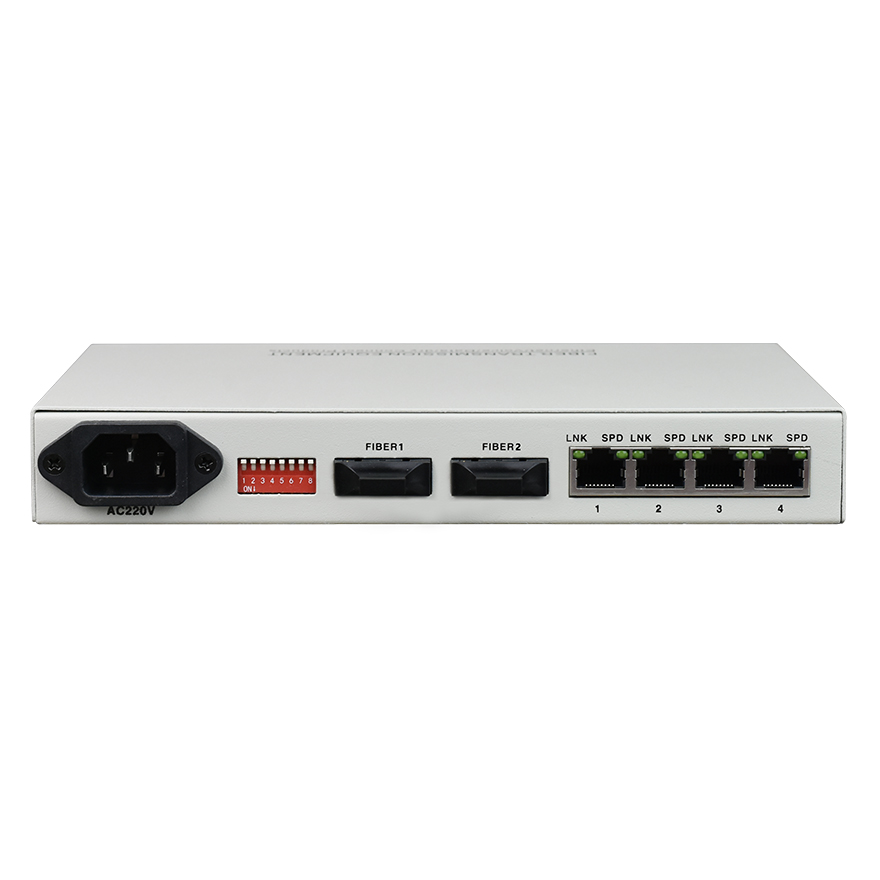

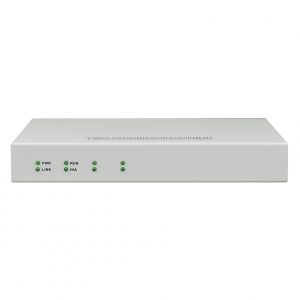

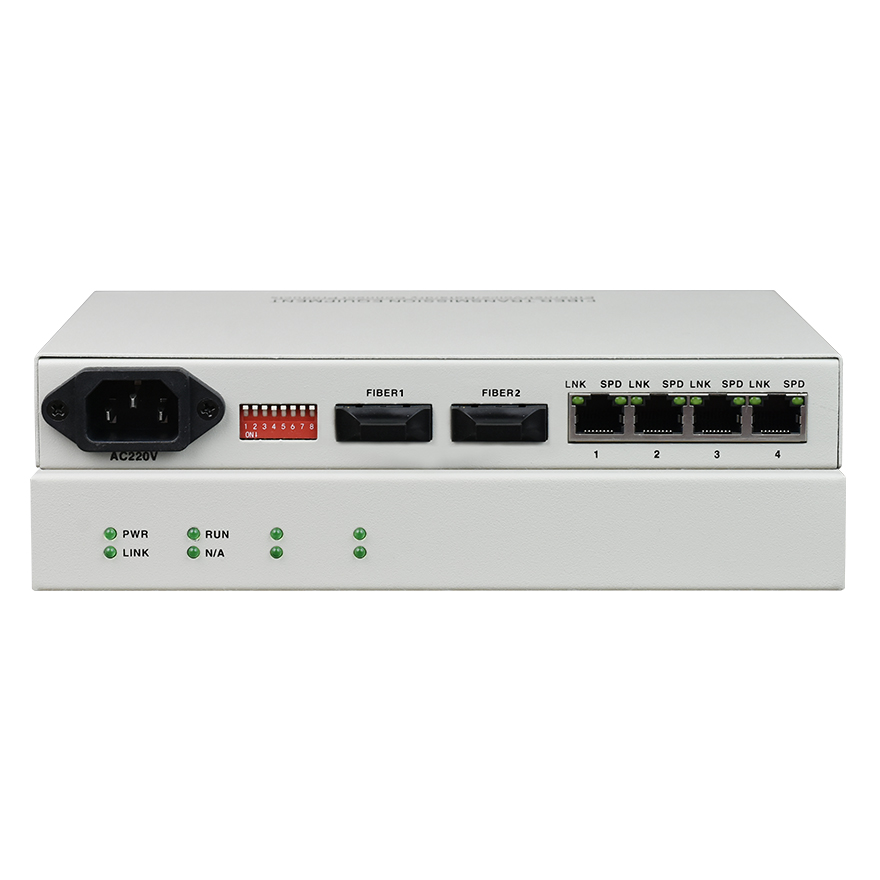

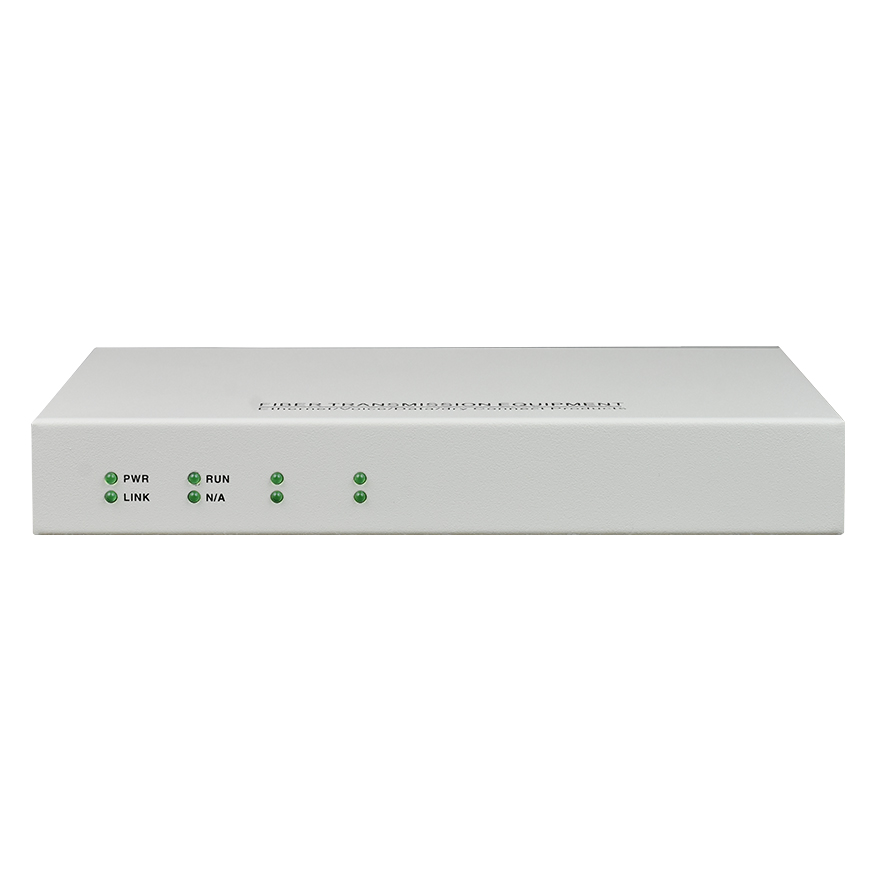

4-Port 100Base-TX to 100Base-FX Media Converter (1+1 Fiber Backup)
Model
Contact us
Description :
This device provides 4 ports 10/100M Fast Ethernet and 2 ports 100Base-FX.
Overview
Features
● The device provides 4 100Mbps Ethernet ports and 2 100Mbps optical ports.
● It provides a primary fiber interface and a backup fiber interface, ensuring uninterrupted service through dual-fiber redundancy.
● Both optical ports are equipped with OAM management frames, which can indicate the status of remote devices.
● The Ethernet ports support auto-negotiation for speed and duplex mode and support AUTO-MDIX.
● The 4 100Mbps Ethernet ports can be configured for logical isolation, allowing independent transmission of four sets of network services on the same fiber line.
● It supports the transmission of jumbo frames and is fully compatible with forwarding various extended protocol data frames.
● The optical interfaces support multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission modes, with optional SC/ST/FC/LC interfaces.
● It features a variety of status indicator lights, providing convenient and accurate information about the device interfaces and link statuses.
● The Ethernet interfaces are equipped with three-level lightning protection, meeting the GB/T17626.5 (IEC61000-4-5) short-circuit current wave of 8/20μs and peak output voltage of 6KV.
● The device supports multiple power supply options, including AC220V, DC-48V/DC+24V, and DC+V12.
Parameters
● Fiber Optic Interface:
Fiber Type: Single and Dual fiber
Fiber Interfaces: FC/SC/ST/LC (SFP)
Wavelength: 850nm/1310nm (multi-mode); 1310nm/1550nm (single-mode)
Transmission Distance without Relay: 20-120 km
Typical Transmit Power:
Single-mode 1310/1550nm: ≥-9dBm
Multi-mode 850nm: -18dBm
Multi-mode 1310nm: -25dBm
Receive Sensitivity Range: -28dBm to -40dBm
● 10/100M Ethernet Interface
Protocols: Compliant with IEEE 802.3, IEEE 802.1Q (VLAN)
Rate: 10/100Mbps adaptive, full/half duplex auto-negotiation
MAC Address Table: Support 4096 MAC addresses
Physical Interface: RJ45 connector, supports Auto-MDIX
● Environment Index
Operating Temperature: -10°C to +60°C (commercial grade) / -40°C to +85°C (industrial grade)
Storage Temperature: -40°C to +85°C
Operating Humidity: 0% to 95% (non-condensing)
MTBF: >100,000 hours
Specification
| Function Description | 4*100 Base-TX to 2*(1+1) Backup Optic fiber |
| Port Description |
1*Fiber interface; 4*FE Interfaces |
|
Power Supply |
Power supply: AC180V ~ 260V; DC –48V Power consumption: ≤10W |
|
Dimension |
(L × W × H) 216*138*41 mm (Desktop Type) |
|
Weight |
0.95Kg/pcs |

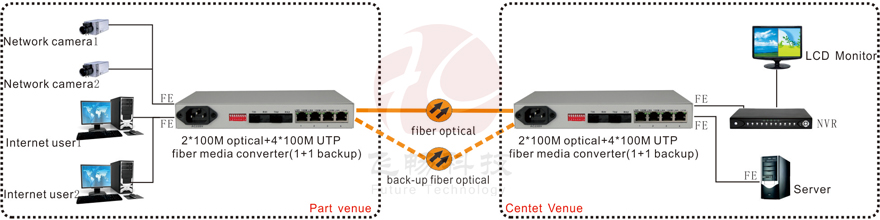

Application
