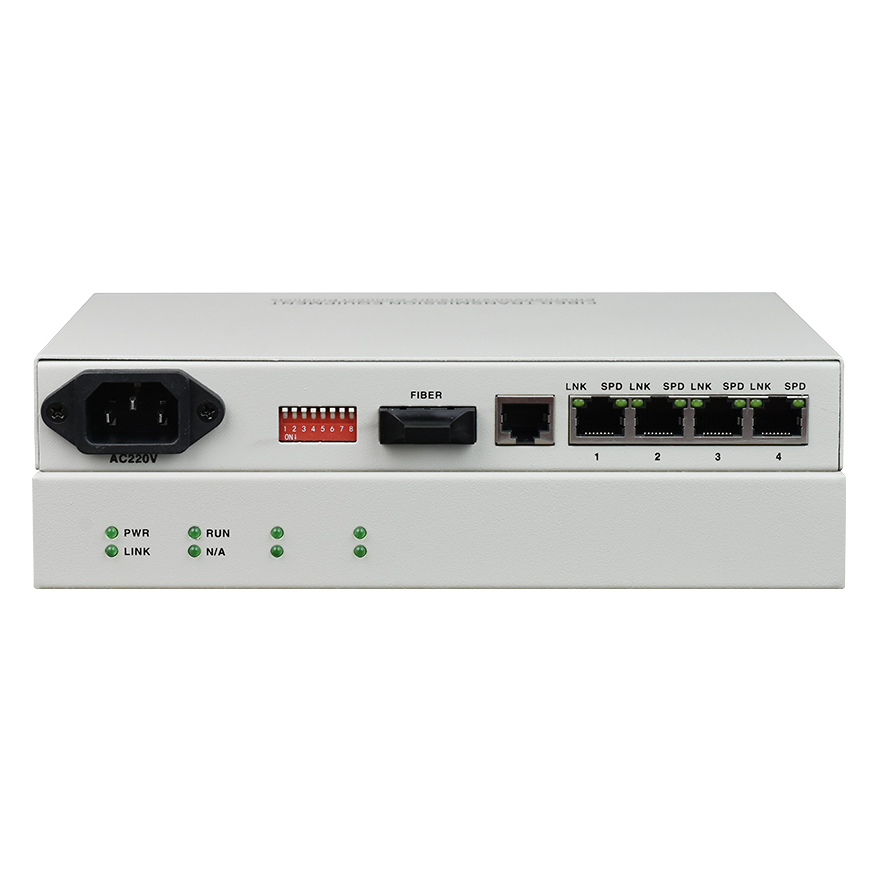

2 Port Physical lsolation FE Fiber Media Converter

View : 401
Type : Special function serials
Description :

This series is IEEE802.3 Ethernet media converter, enabling four 10/100Base-T through the optical fiber transmission

Overview

This series is IEEE802.3 Ethernet media converter, enabling four 10/100Base-T through the optical fiber transmission, where 1,2 and 3,4 port to achieve physical isolation, were able to achieve two-way 100M bandwidth, fiber distance (20/40/60/80/100 km), the total bandwidth of two-way 200M.

Two Gigabit Ethernet port has its own independent gigabit bandwidth transmission via an optical fiber, Ethernet, peer received completely independent, non-interfering, independently of each other, that is, the physical isolation. the whole stable, reliable, low power consumption, high integration, small size.

Application occasions:  inance, securities, security and construction sectors while within the network and the public information network, and requires a high degree of physical separation of the two networks for the occasion;

Cable resources particularly intense at the same time require a lot of separate Ethernet path of the occasion; it is very suitable for use in the optical path without changing the existing situation on the DSLAM bandwidth expansion.




Features

Automatically adapt to 10/100 Mbps environment, easy to upgrade the network;
Provide physical isolation two 100M Ethernet access line speed
Support full-duplex and half-duplex network communication, with auto-negotiation capability, electrical ports MDI/MDI-X adaptive without manual adjustment;
Support Max MTU 10240 extra-long VLAN packets that can support IEEE802.1Q agreement Items matching switches use;
Two switch ports can be divided based on VLAN PORT of this partitioning method does not affect the remote device
Devices with Console port support super terminal control device
1,2-port switch, 3 and 4-port switch, 1,2 and 3,4 physical isolation
1,2 port can be set to VLAN isolation, 3,4 port too

Parameters

● Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)
Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)

● Fast Ethernet Interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
 MAC Address Capability: 4096
 Connector: RJ45, support Auto-MDIX

● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specification

Model

FCM-F2p

Functional Description

2 channel physical isolation 100M Ethernet, total Bandwidth Bi-Directional 2*100M

Port Description

One Fiber interface; 2*FE Interface

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W

Dimension

Product Size:  216X140X31mm(WXDXH)

Weight

1.8Kg / PCS

Application

application of media converter
