2 Optical + 2UTP Cascade FE Media Converter

View : 391
Type : Multi-port Fiber and UTP
Description :

This series of products are Ethernet IEEE802.3 media converters, which can realize the conversion between 10/100Base-T

Overview

This series of products are Ethernet IEEE802.3 media converters, which can realize the conversion between 10/100Base-T twisted pair and 100Base-FX optical fiber media or extend network transmission. They are mainly used for long-distance optical fiber networks (20/40/ 60/80/120 km) transmission. This product provides 2 1000M Ethernet electrical ports and shares 100M bandwidth; 2 1000M optical ports (main fiber interface and backup fiber interface, when the main fiber network is disconnected, the backup fiber network is automatically connected, without affecting Signal transmission); with perfect alarm function, the whole machine is stable and reliable, low power consumption, high integration, small size.

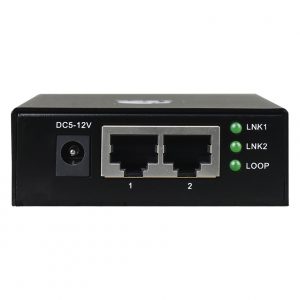

  IEEE802.3 fiber media converter IEEE802.3 fiber media converter

Features

Automatically adapt to 10/100Mbps environment, support 10/100M adaptive, full/half duplex mode, support automatic selection of twisted-pair crossover and direct connection; easy for network upgrade/system debugging and installation;
Device provides 2 Ethernet UTP, 2 Ethernet optical port
Two optical ports support upstream and downstream connections, multiple devices can form a cascaded Ethernet network;
The optical interface supports three fiber transmission modes: multimode dual fiber, single mode dual fiber, single mode single fiber, SC/ST/FC/LC interface optional
It has the functions of broadcast storm protection, flow balance, conflict isolation, error detection and crash self-reset, etc., suitable for large-flow data applications such as video transmission
The transceiver has a built-in 1MBits high-rate buffer, which can avoid the freezing of the transmission picture caused by the IP camera in an environment where the monitoring picture changes rapidly
Supports the transmission of VLAN ultra-long data packets, which can be matched with switch products supporting IEEE802.1Q protocol, and supports Ethernet packets with a maximum of 1536 bytes
Effectively isolate network conflicts, isolate broadcast packets, and have broadcast storm prevention functions
Ethernet interface with three-level lightning protection, anti-radar to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard
External AC220/5V power adapter or external DC-48V/5V power adapter

Parameters

● Ethernet UTP Interface
Interface rate: 10/100M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX

● Optical Ethernet Interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth.

● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specification

Model FCMJ-F2
Functional Description

2*FE+2*100Base-s/Lx Ethernet Switch, Can chain type network

Port Description

Two optical port, two Fast Ethernet ports

Power

AC180V ~ 240V;DC –48V
Power Consumption: ≤15W

Dimension

93*70*25mm (WXDXH)

Weight

0.5Kg/piece

Application

application of IEEE802.3 fiber media converter
