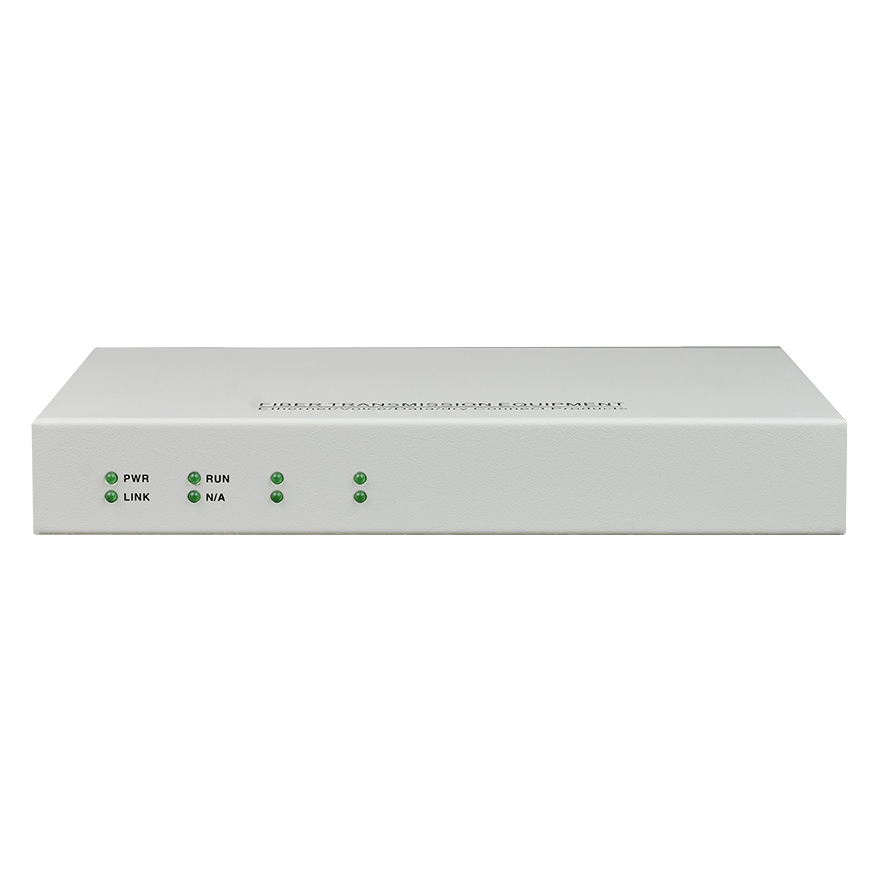

2 Optical + 2UTP Cascade FE Fiber Media Converter

View : 427
Type : Multi-port Fiber and UTP
Description :

The device supports a maximum multimode fiber optic cable distance of 20/40/60/80/120 kilometers , providing a simple solution for connecting

Overview

    The device provides 1-2 Channel 10M/100M M Ethernet interface, master fiber interface and backup interface. This four Ethernet interface is switch interface, can be cascaded through 2 fiber interface, is convenient for chain group network, and support VLAN.


  FE Fiber Media Converter FE Fiber Media Converter

Features

● Automatically adapt to 10Mbps,100Mbps , and environment, upgrade network easily;
Device provides 2 channel 100M Ethernet port, 2channel 100M Ethernet optical port
● Support full-duplex and half-duplex network communication, with auto-negotiation capability;
● The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with the IEEE802.10 protocol
● Effectively isolate network conflicts and broadcast packets, have broadcast storm prevention function
● Multiple devices can be cascaded to Ethernet network

Parameters

● Ethernet UTP Interface
Interface rate: 10/100M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX



● Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth.



● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Specification

Model FCMJ-F2
Functional Description

2*FE+2*100Base-s/Lx Ethernet Switch, Can chain type network, with the anti-death monitoring automatic reset function

Port Description

Two 1 * 9 Fast optical ports, 2 Fast Ethernet ports

Power

AC180V ~ 240V;DC –48V;DC +24V,
Power Consumption: ≤15W

Dimension

216X140X31mm( WX DXH )

Weight

1.4Kg/piece

Application

application of FE Fiber Media Converter
