The device provides 4Channel 10M/100M /1000M Ethernet interface, master fiber interface and backup interface. This four Ethernet interface is switch interface, can be cascaded through 2 fiber interface, convenient for chain group network, support VLAN.
- Product Search Guide: space = AND, | = OR, ! = NOT

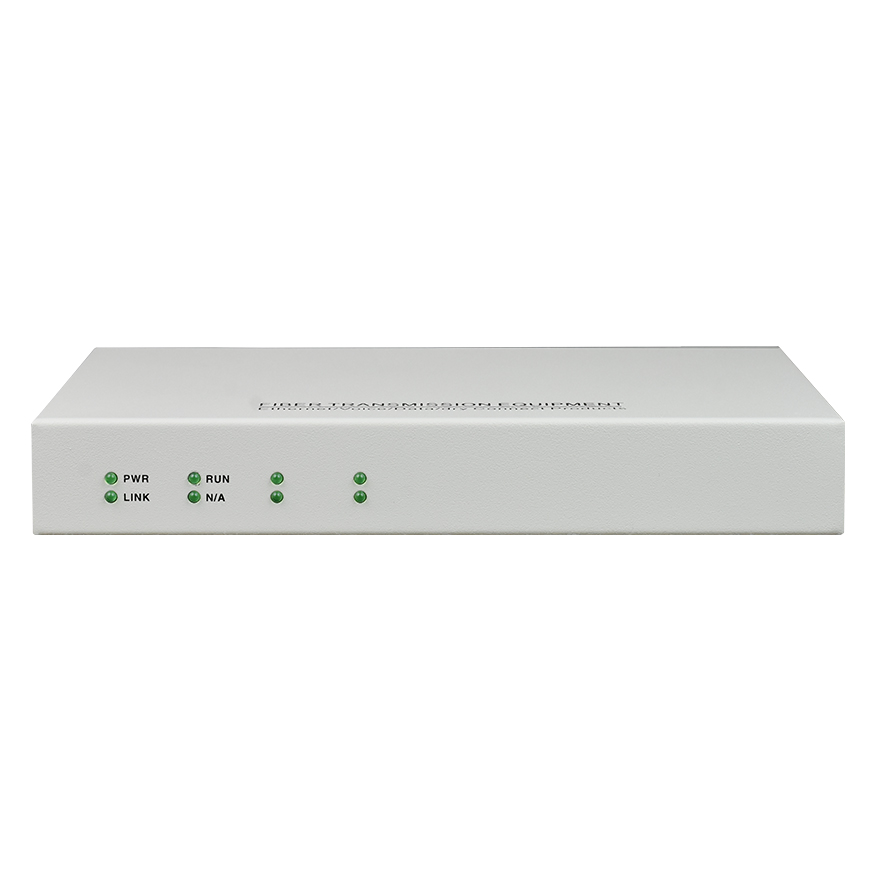

2 Optical + 4 UTP Cascade Media Converter
Model
FCMJ-G4
Description :
The device supports a maximum multimode fiber optic cable distance of 20/40/60/80/120 kilometers , providing a simple solution for connecting
Overview
Features
● Automatically adapt to 10Mbps，100Mbps and 1000Mbps environment, upgrade network easily;
● Device provides 4channel 1000M Ethernet port, 2channel 1000M Ethernet optical port
● Support full-duplex and half-duplex network communication, with auto-negotiation capability;
● The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with the IEEE802.10 protocol
● Effectively isolate network conflicts and broadcast packets, have broadcast storm prevention function
● Multiple devices can be cascaded to Ethernet network
Parameters
● Ethernet UTP Interface
Interface rate: 10/100/1000 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
● Optical Ethernet Interface
Wave Length: 1310nm, 1550nm
Interface rate: 1000 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth.
● Working Environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Specification
| Model | FCMJ-G4 |
| Functional Description |
2*GE+4*1000Base-s/Lx Ethernet Switch, Can chain type network, with the anti-death monitoring automatic reset function |
| Port Description |

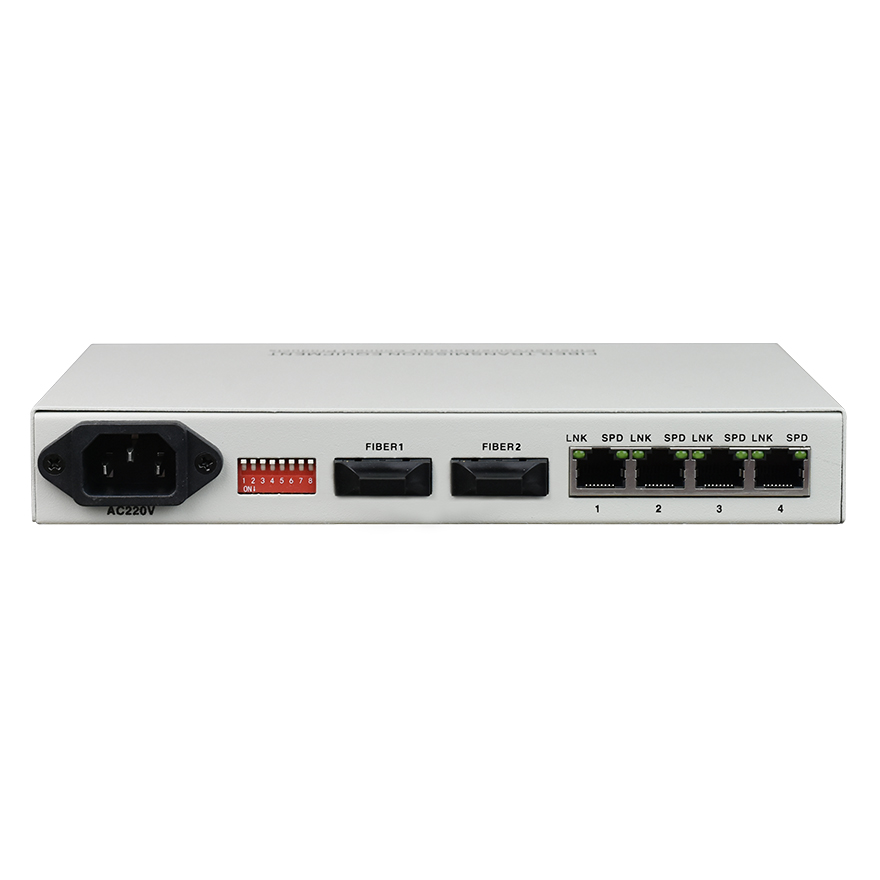

Two 1 * 9 Gigabit optical ports, 4 Gigabit Ethernet ports |
|
Power |
AC180V ~ 240V；DC –48V；DC +24V, Power Consumption: ≤15W |
|
Dimension |
216X140X31mm( WX DXH ) |
|
Weight |
1.8Kg/piece |
