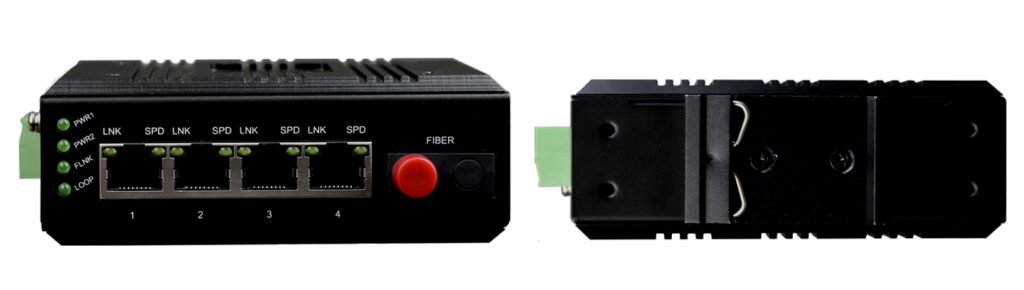

Industrial 4 Port 100M Ethernet to 100M Fiber Optical Media Converter

View : 573
Type : Industrial Fiber Media Converter
Description :

This series of products is an industrial-grade 4-port 100Base-T to 100Base-FX optical fiber conversion, mainly used for long-distance optical fiber networks, supporting (20/40/60/80/100/120 km) transmission.

Overview

This series of products is an industrial-grade 4-port 100Base-T to 100Base-FX optical fiber conversion, mainly used for long-distance optical fiber networks, supporting (20/40/60/80/100/120 km) transmission. This product provides 1* 100M optical port and 4 *100M Ethernet electrical ports, with automatic loop detection of all electrical ports and optical ports, and isolation of the corresponding loopback port function and LFP function.


Features

The device provides 1* 100M optical port and 4 *100M Ethernet electrical ports, which can automatically adapt to the 10/100Mbps environment, full-duplex and half-duplex auto-negotiation capabilities, and support automatic selection of twisted-pair crossover direct connection, which is convenient for the system Debug installation;

The optical interface supports three optical fiber transmission modes: multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber, and SC/ST/FC/LC interface is optional;

It has the function of detecting errors and restarting the power supply of the whole machine when it crashes, which is suitable for large-flow data applications such as video transmission;

The transceiver has automatic loop detection for all electrical ports and optical ports, and can isolate the corresponding loopback ports, and has a loop indicator display;

Support LFP function, which can transmit the alarm of the optical port to the electrical port, and can be activated by setting the DIP switch;

Supports the transmission of super-long jumbo frame packets, which can be matched with switch products that support IEEE802.1Q protocol, and supports Ethernet packets with a maximum size of 4097 bytes;

It has functions such as broadcast storm protection, traffic balance, conflict isolation and error detection;

Support 9-70V wide range AC and DC input, support internal isolation, redundant dual power input;

In line with the requirements of industrial level 4 electromagnetic compatibility, super lightning protection function: lightning protection, anti-induced high voltage, anti-surge, etc.

Fanless efficient heat dissipation, reducing repair time;

IP40 enclosure protection grade, able to withstand the test of harsh environment;

Rail or wall mount;

Wide temperature type: working temperature -40℃~ +85℃

Specifications

Product model

FCM-F4-M

Product Function Description

1 channel 100M optical port to 4*10/100M Ethernet copper port, sharing 100M bandwidth, and has the function of automatic power off and restart of the whole machine when the transceiver crashes; loop automatic detection and isolation function, LFP function, industrial rail type.

Service port description

1channel 1*9 or SFP 100M optical port, 4* 100M Ethernet copper ports

power supply

Redundant dual power input DC9-70V, power consumption <5W

Overload protection: support; reverse polarity protection: support; redudancy protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

Product Size

Shell: IP40 protection grade, aluminum alloy material

Dimensions: 110mm(L) x 86mm(W) x 40.5mm(H)

Installation method: rail installation, wall-mounted installation

weight

0.495Kg / PCS

Application
