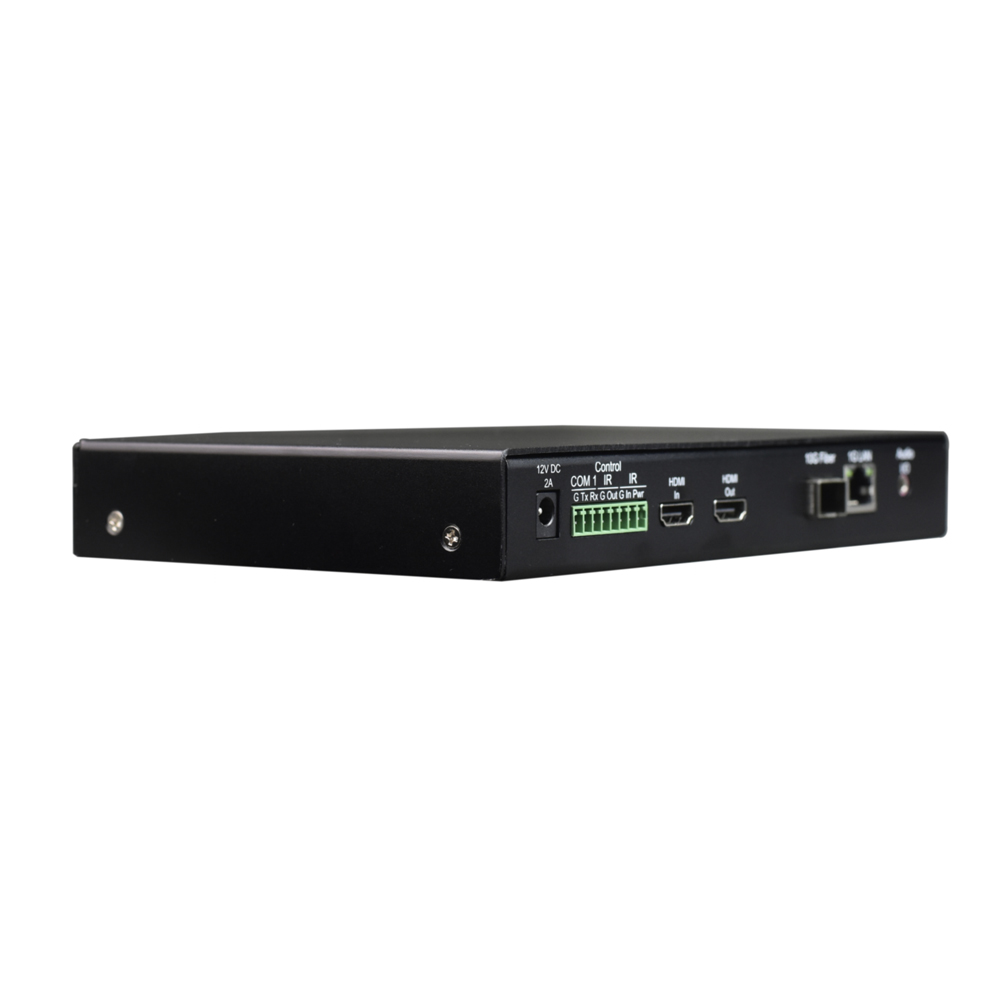

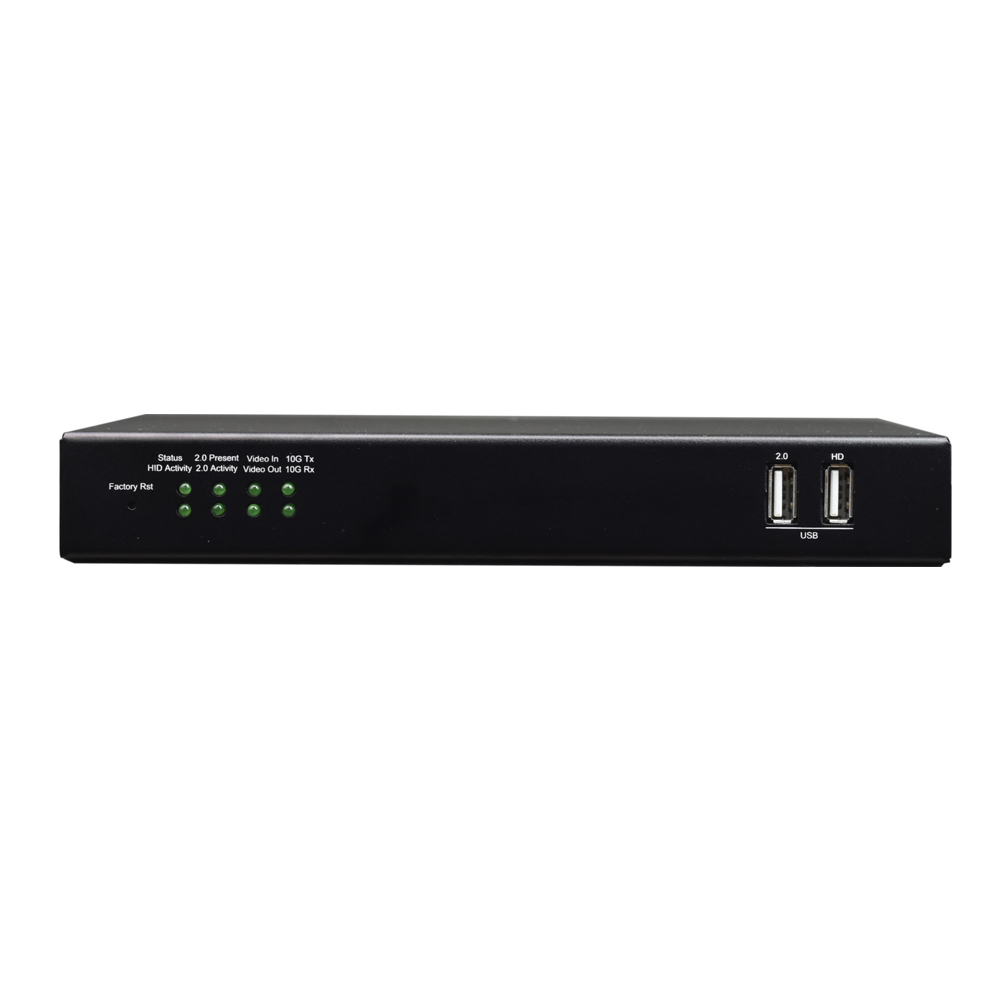

4K 60HZ Bidirectional HDMI 2.0 & USB KVM over Fiber Extender

View : 1,054
Type : HDMI to Fiber Converter
Description :

The 4K 60HZ Bidirectional HDMI2.0 fiber converter supports the 4K resolution ratio and 18G high-speed video bandwidth.

Overview

The device supports a 4K resolution and an 18G high-speed video bandwidth. It is essentially a device that utilizes a single fiber optic cable to extend bidirectional HDMI signals and provides support for audio speakers, microphones, RS232, USB, and more. It features real-time EDID feedback and supports the transmission of 1G Ethernet, independent analog audio, RS232 serial signals, IR, and USB. It can be used for communication with LCD screens, camera PTZ, and can also serve as a long-distance transmission device for touch screens. It offers low power consumption, long-range capabilities, plug-and-play convenience, strong compatibility, and enables more precise display.


HDMI 2.0 to Fiber Optic Converter

Features

The device features a full aluminum alloy shell with an anodized finish.

It complies with HDMI 2.0b and HDCP 2.2 specifications.

It supports bidirectional HDMI video transmission.

Bidirectional HDMI supports an 18Gbps video bandwidth.

The device supports a maximum video resolution of 4K60 4:4:4 input and 4K60 4:2:0 output.

It supports one channel of independent analog audio.

It supports one channel of bidirectional RS-232 transmission.

It supports one channel of bidirectional IR (Infrared).

It supports one channel of 10/100/1000Mbps Ethernet extension.

It supports one channel of full-speed USB 2.0.

It supports one channel of USB HID for USB 1.1.

The video compression is lossless and offers zero visual latency.

With fiber optic transmission, no driver, and it is compatible with any system, plug-and-play.

Multiple power supply options are available: AC220V, DC-48V/DC24V/DC12V, etc.

Parameters

● Fiber

Fiber port: 1

Optical Fiber: Single/Dual fiber

Fiber interface: LC (SFP)

Wavelength: 850nm/1310nm Multi-mode; 1310nm/1550nm Single-mode

Relay-free transmission distance: 0~80Km

Typical transmit power: single mode 100uw — 0.93mw



● 10/100/1000M Ethernet Interface

Protocol: Compliant with IEEE 802.3ab, IEEE 802.3z

Rate: 10/100/1000M adaptive, full/half duplex adaptive

MAC Address Table: 4096

Physical interface: RJ45 supports Auto-MDIX



● Serial Interface

Standard: EIA/TIA-232 RS-232 (ITU-T V.28)



● HDMI Interface

Interface

HDMI female

Standard



HDMI2.0b

HDCP1.4/2.2

Color Space

RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

Color Depth

8/10/12-bit (1080P60Hz)

8-bit (4K60Hz)

Resolution

480i~1080p50/60Hz, 4Kx2K@24/30Hz,

Support 4k2k@60Hz input



● USB Interface

Standard: USB 2.0×1, USB HID (USB 1.1)x1

Interface Type: USB 2.0 Type A Female



● Environmental Index

Working temperature: -10℃—+60℃

Storage temperature: -20℃—+80℃

Working humidity: 0%—95% (non-condensing)

MTBF: >100,000 hours

Specifications

Product Model

FCM-H1dG1U1

Function Description

1 Channel 4K 60HZ Bidirectional HDMI2.0 fiber converter

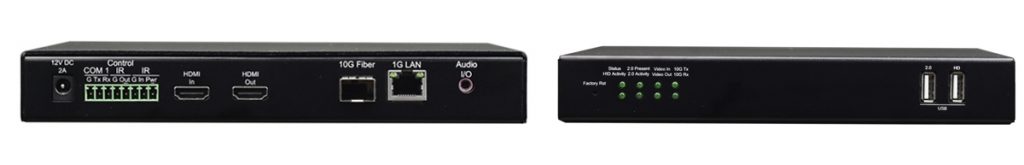

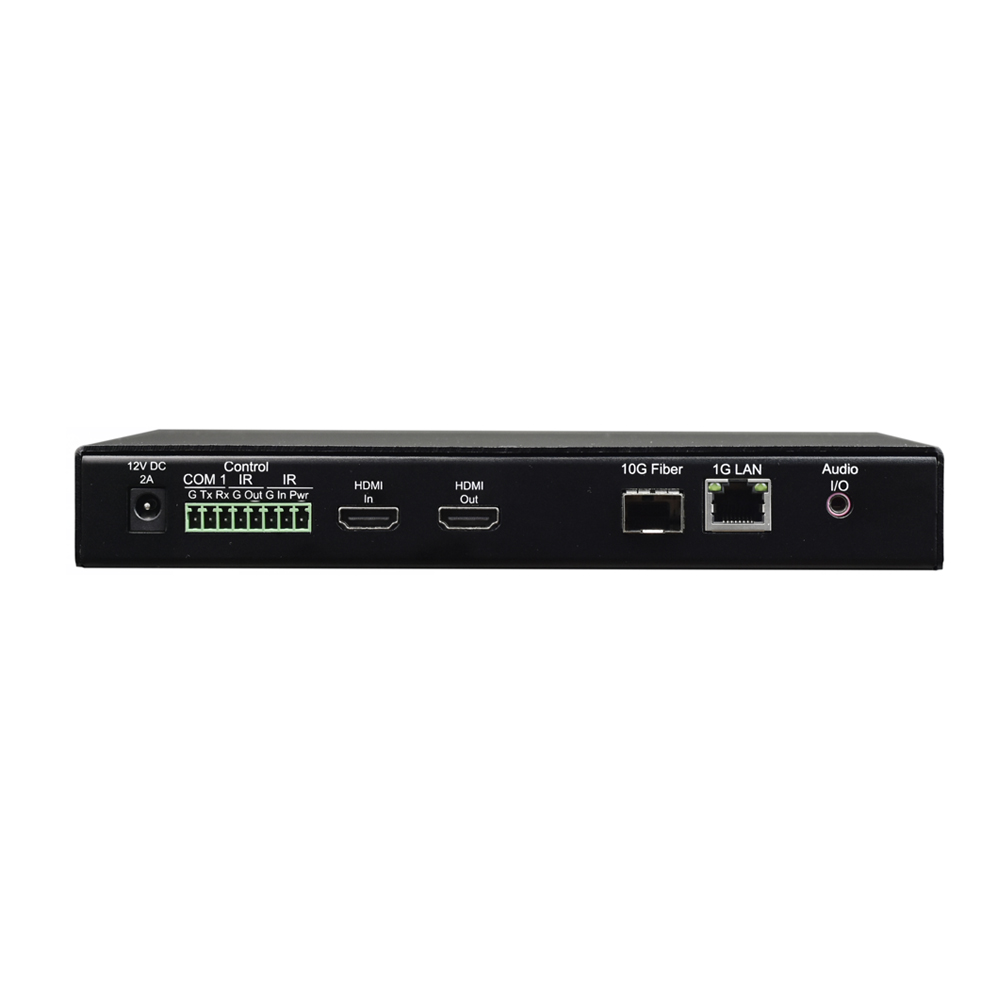

Port Description

1*Gigabit Ethernet port, 1*10 Gigabit SFP+ optical port, 2*HDMI ports, 1*analog audio port, 2*USB ports, 1*RS232 serial port, 1*IR port

Power Supply

AC220V or DC-48V (power supply optional)

Product Size

(L×W×H) 216*139*31mm desktop type

Weight

0.65.75KG/PCS

Application

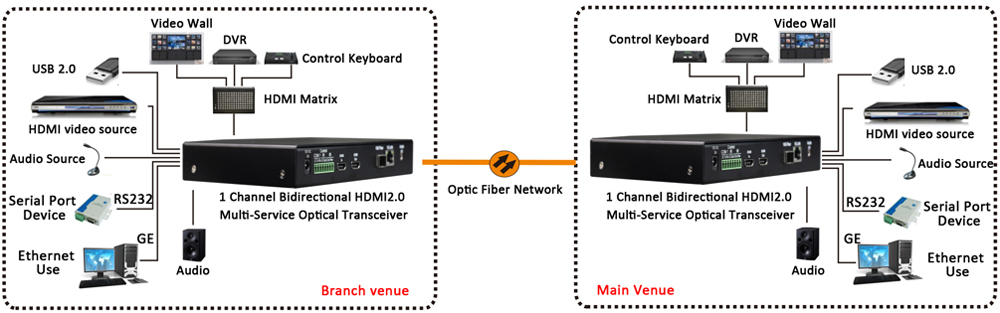

application of HDMI 2.0 to Fiber Optic Converter
