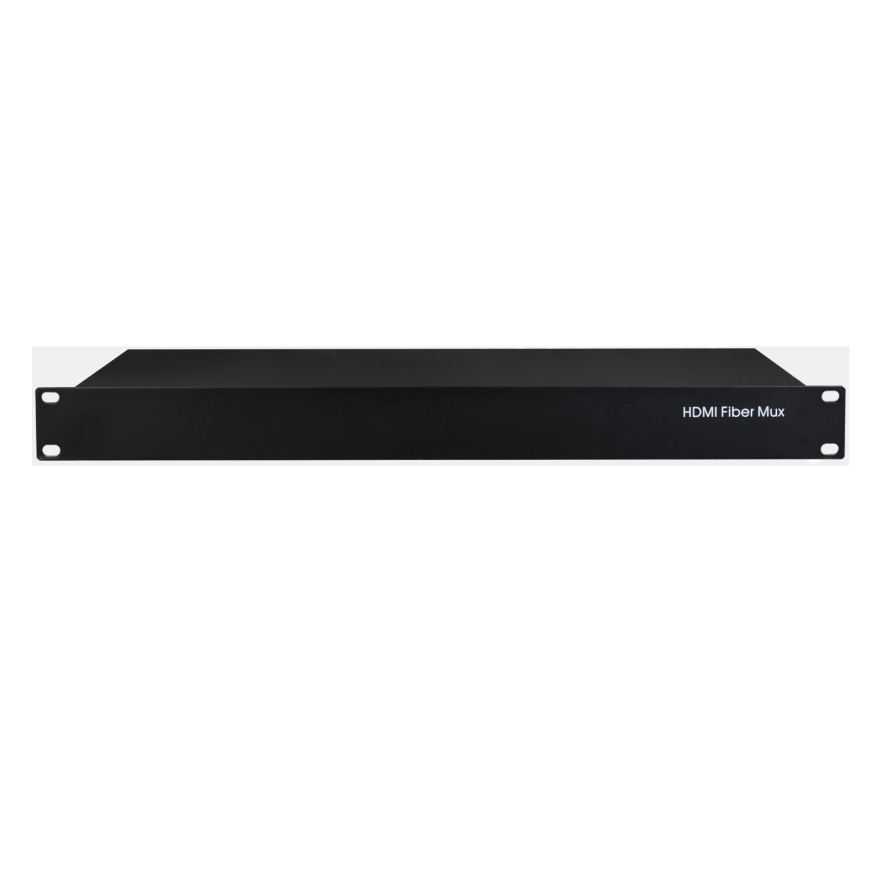

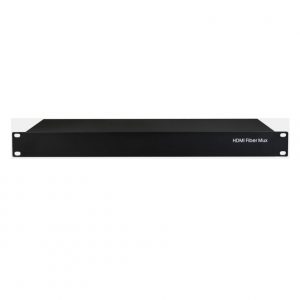

Rack-mounted 8-channel 2K 60Hz HDMI (with independent bidirectional audio) Optical Fiber Converter FCVH-H8b

● All-aluminum, gold anodized 19-inch 1U rack-mountable design;

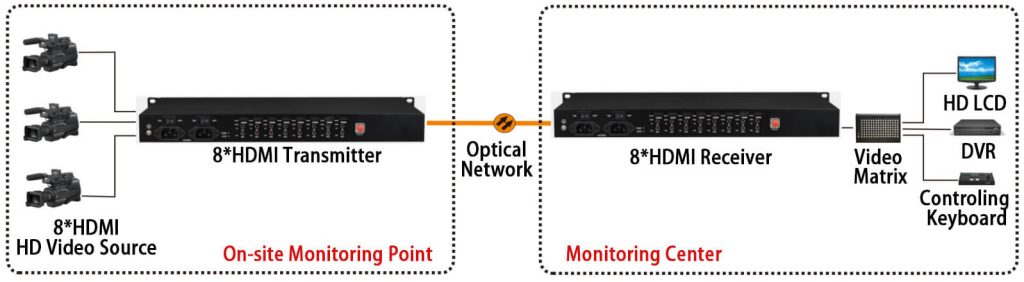

● This device is used in pairs, with video signal input at one end and video signal output at the other, and can be configured for bidirectional HDMI transmission;

● The device features a modular design, allowing for flexible configuration of inputs and outputs within a maximum of 8 channels, such as 4 bidirectional HDMI channels;

● Compliant with HDMI 1.3a standard and HDCP 1.1 protocol;

● Each HDMI channel can be connected to an external analog bidirectional audio channel, independent of the HDMI in-band audio (optional);

● Automatically identifies and configures various display modes, with a maximum resolution of 1080P60 and backward compatibility;

● The transmitter and receiver each have one USB port for connecting a keyboard and mouse (optional);

● Single-mode and multi-mode fiber optic transmission, with a maximum transmission distance of 80KM;

● Built-in ESD protection circuit effectively prevents electrostatic damage;

● Easy and convenient on-site installation, plug-and-play, no setup required;

● Ultra-low video latency;

● Fiber optic transmission, no drivers required, compatible with any system, plug-and-play;

● The HDMI interface has a built-in ESD protection circuit to effectively prevent electrostatic damage;

● AC 220V power supply, also supports DC -48V/+24V power supply;
